Merkur System Pump 30:01 25Cc Wa Std

GG G30W01

MERKUR SYSTEM PUMP 30:01 25CC WA STD

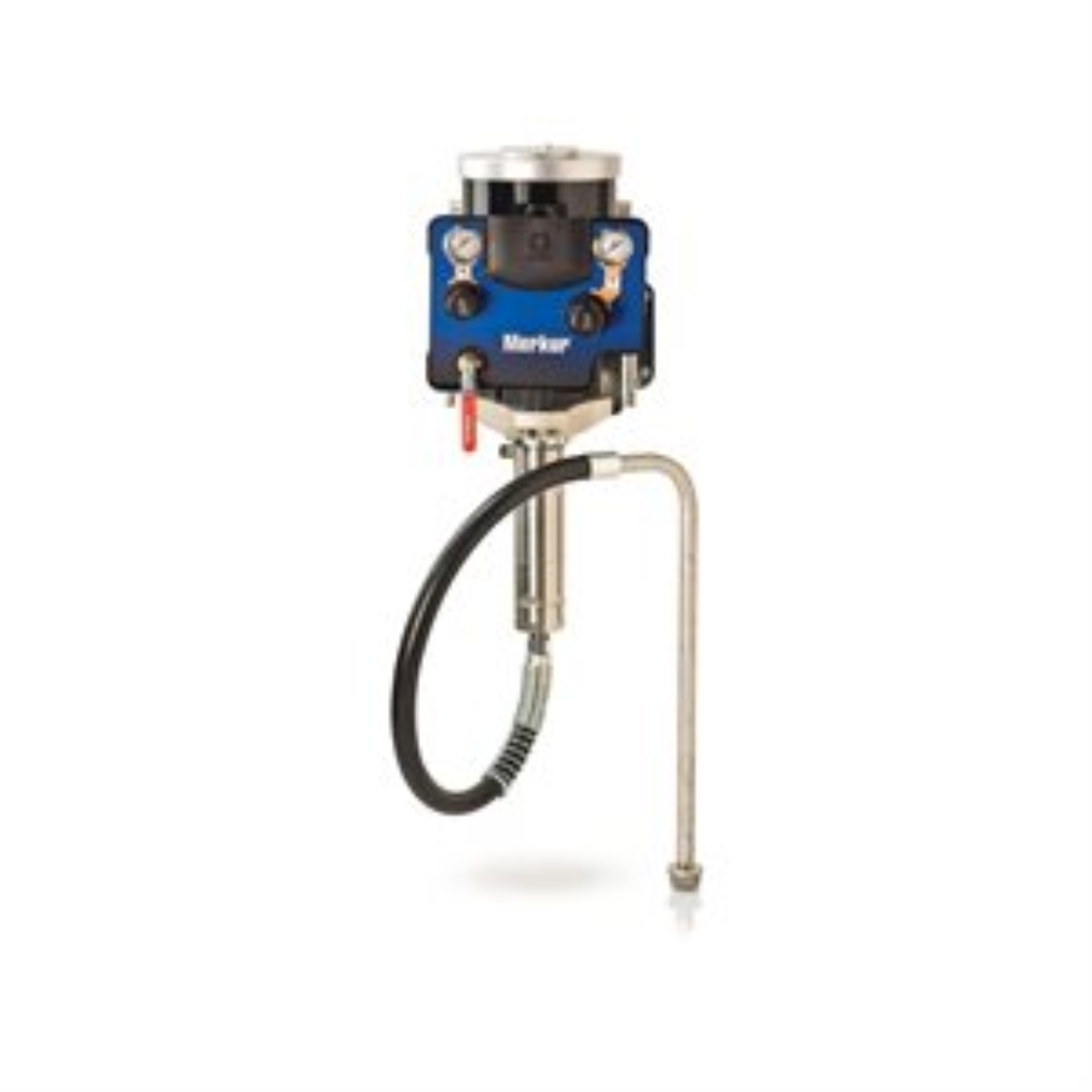

Graco G30W01 30:1 Merkur Pump, 0.4 gpm (1.5 lpm) fluid flow, Wall Mount, Pump Air Controls

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (in): 1/2
• Fluid Inlet Size (mm): 12.7
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 0
• Gun Model: No Applicator
• Gun Technology: Bare Package
• Gun Type: No Applicator

• Hose Inlet Diameter (cm): 0.47625
• Hose Inlet Diameter (in): 3/16
• Hose Inlet Diameter (mm): 4.7625

• Includes: Pump Only Air Controls

• Maximum Flow Rate (GPM): 0.40
• Maximum Flow Rate (L/min): 1.5

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.5

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kg/cm²): 210.9
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Motor Type: Pneumatic

• Mount Type: Wall Mount

• Number of Guns: 0

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Bare Package

• Pump Ratio: 30:1
• Pump Type: Pneumatic Piston Pump
