Merkur System Pump 28:01 125Cc Ct Std

GG G28C01

MERKUR SYSTEM PUMP 28:01 125CC CT STD

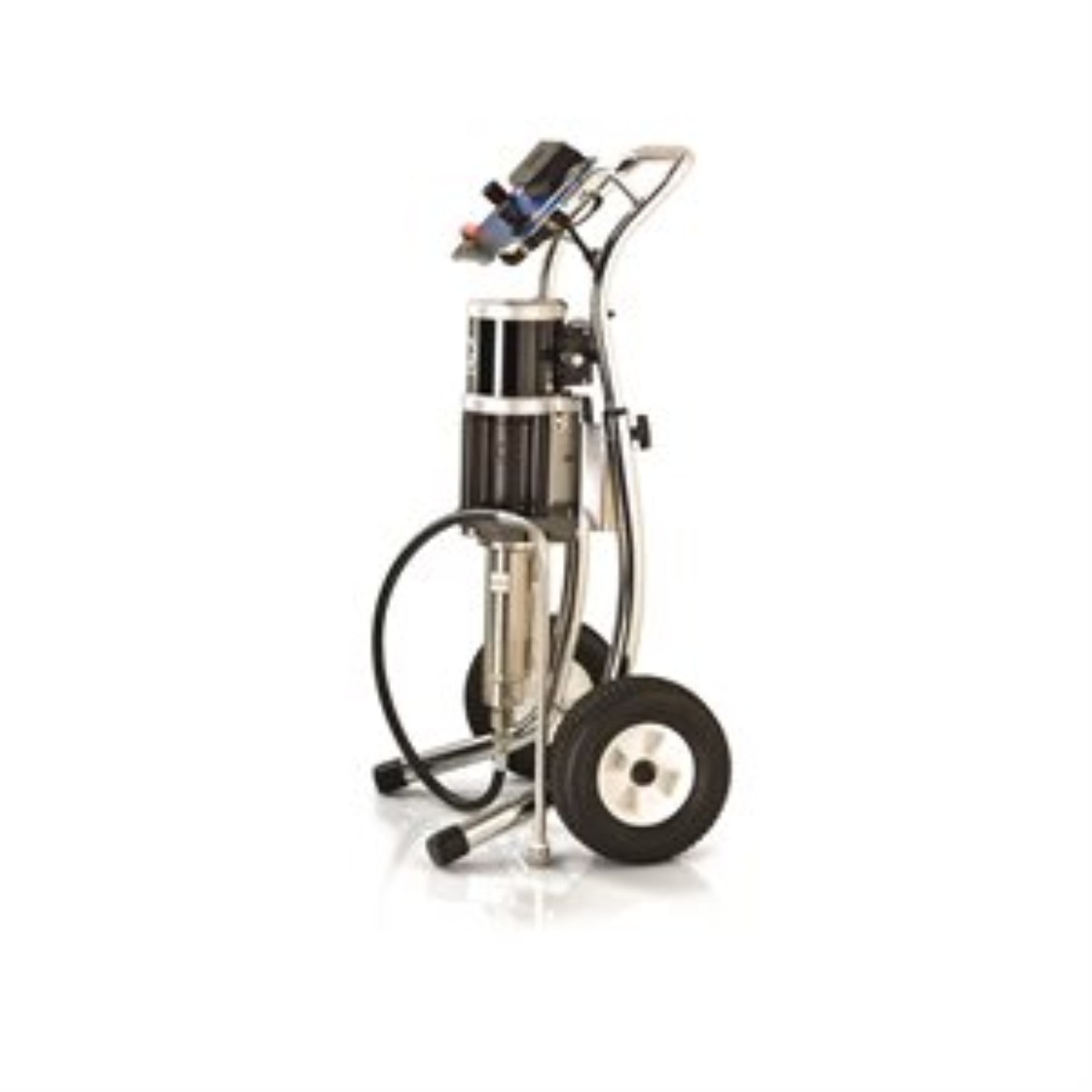

Graco G28C01 28:1 Merkur Pump, 2 gpm (7.5 lpm) fluid flow, Cart Mount, Pump Air Controls, Suction Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Compatible Material: Waterborne, Solvent borne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating

• Fluid Inlet Size (cm): 2.54
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Type: NPT

• Gun Included: 0
• Gun Model: No Applicator
• Gun Technology: Bare Package
• Gun Type: No Applicator

• Hose Inlet Diameter (cm): 0.476
• Hose Inlet Diameter (in): 3/16
• Hose Inlet Diameter (mm): 4.76

• Includes: Pump Only Air Controls, Suction Hose, Fluid Filter

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 2
• Maximum Flow Rate (L/min): 7.5

• Maximum Working Pressure (bar): 193
• Maximum Working Pressure (kg/cm²): 196.86
• Maximum Working Pressure (kPa): 19300
• Maximum Working Pressure (psi): 2800

• Mount Type: Cart Mount

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Bare Package

• Pump Ratio: 28:1
• Pump Type: Pneumatic Piston Pump
