GG G24W01
MERKUR SYSTEM PUMP 24:01 150CC WA STD

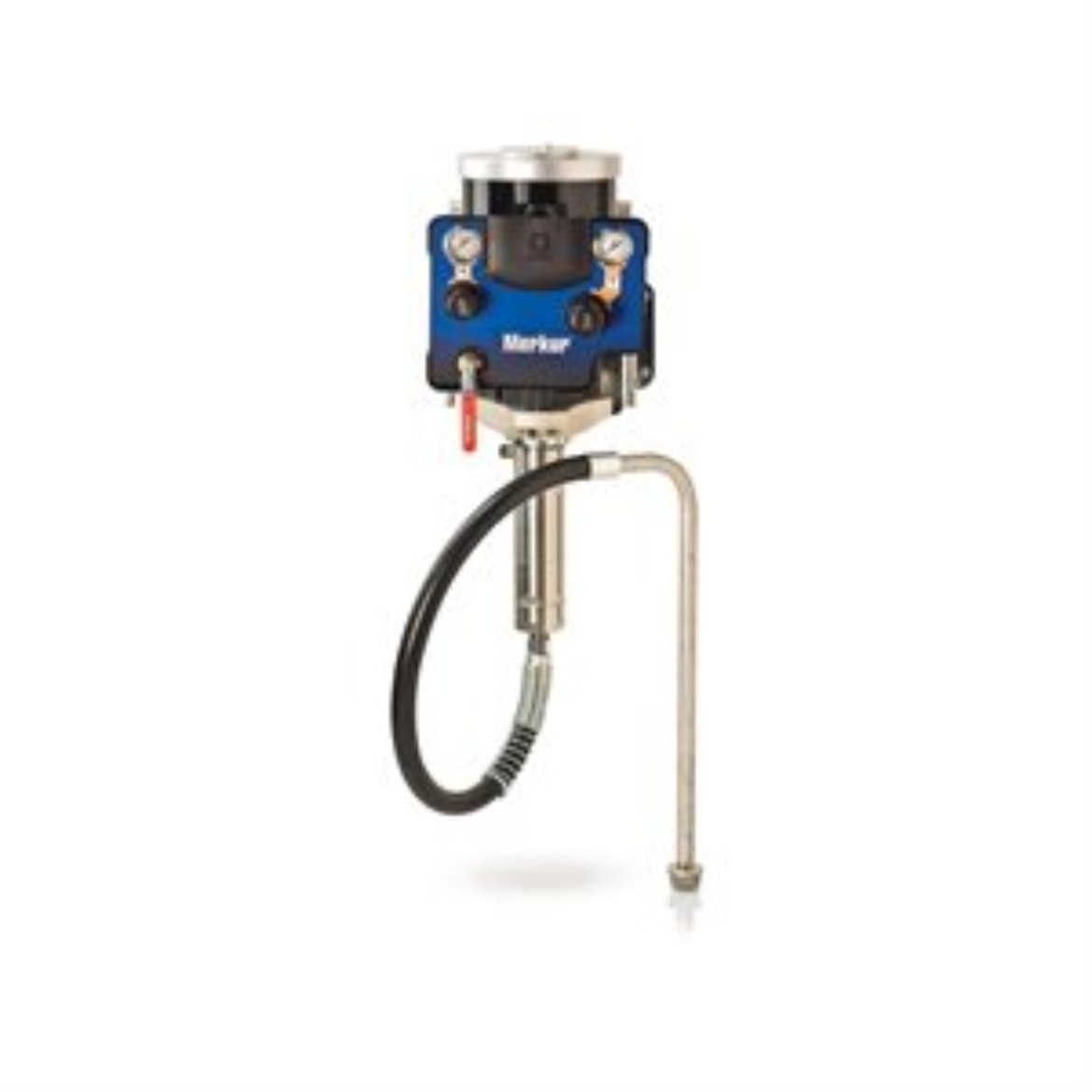

Graco G24W01 24:1 Merkur Pump, 2.4 gpm (9 lpm) fluid flow, Wall Mount
Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
- Proven to outperform and outlast other pumps in their class
- Highest technology air motor on the market
- Low air consumption for increased efficiency
- Compatible Material: Waterborne, Solvent borne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating
- Fluid Inlet Size (cm): 2.54
- Fluid Inlet Size (in): 1
- Fluid Inlet Size (mm): 25.4
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 1.905
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Type: NPT
- Gun Included: 0
- Gun Model: No Applicator
- Gun Technology: Bare Package
- Gun Type: No Applicator
- Hose Inlet Diameter (cm): 0.476
- Hose Inlet Diameter (in): 3/16
- Hose Inlet Diameter (mm): 4.76
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 2.4
- Maximum Flow Rate (L/min): 9.0
- Maximum Working Pressure (bar): 165
- Maximum Working Pressure (kPa): 16500
- Maximum Working Pressure (psi): 2400
- Pressure Type: High Pressure
- Product Type: Bare Package
- Pump Ratio: 24:1
- Pump Type: Pneumatic Piston Pump
