Merkur System Pump 23:01, 1.6 GPM Fluid Flow, Wall Mount

GG G23W01

MERKUR SYSTEM PUMP 23:01 100CC WA STD

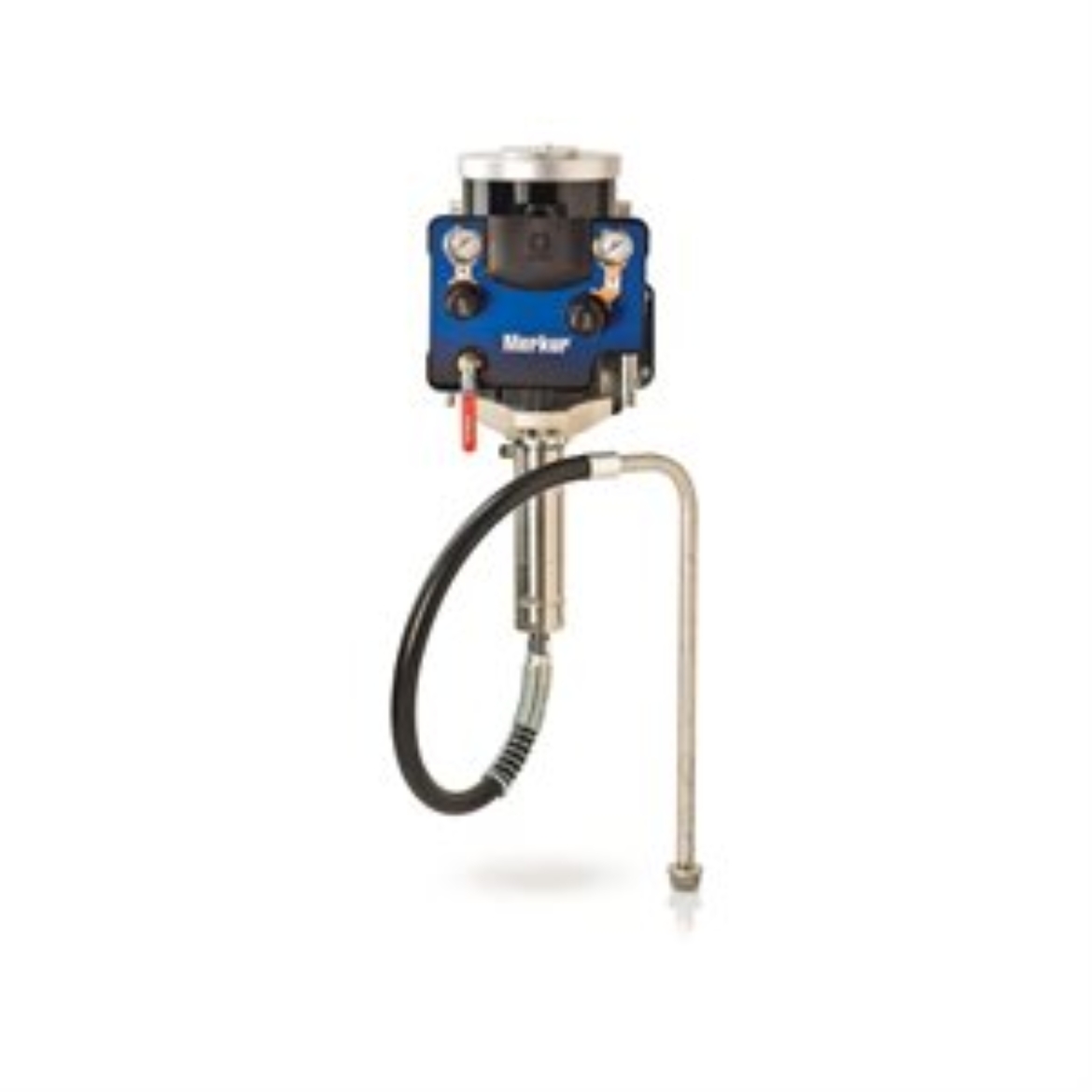

Graco G23W01 23:1 Merkur Pump, 1.6 gpm (6 lpm) fluid flow, Wall Mount

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Compatible Material: Waterborne, Solvent borne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 0
• Gun Model: No Applicator
• Gun Technology: Bare Package
• Gun Type: No Applicator

• Hose Inlet Diameter (cm): 0.476
• Hose Inlet Diameter (in): 3/16
• Hose Inlet Diameter (mm): 4.76

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 1.6
• Maximum Flow Rate (L/min): 6.0

• Maximum Working Pressure (bar): 159
• Maximum Working Pressure (kPa): 15900
• Maximum Working Pressure (psi): 2300

• Mount Type: Wall Mount

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Bare Package

• Pump Ratio: 23:1
• Pump Type: Pneumatic Piston Pump
