GG G23W05
MERKUR SYSTEM PUMP 23:01 100CC WA STD

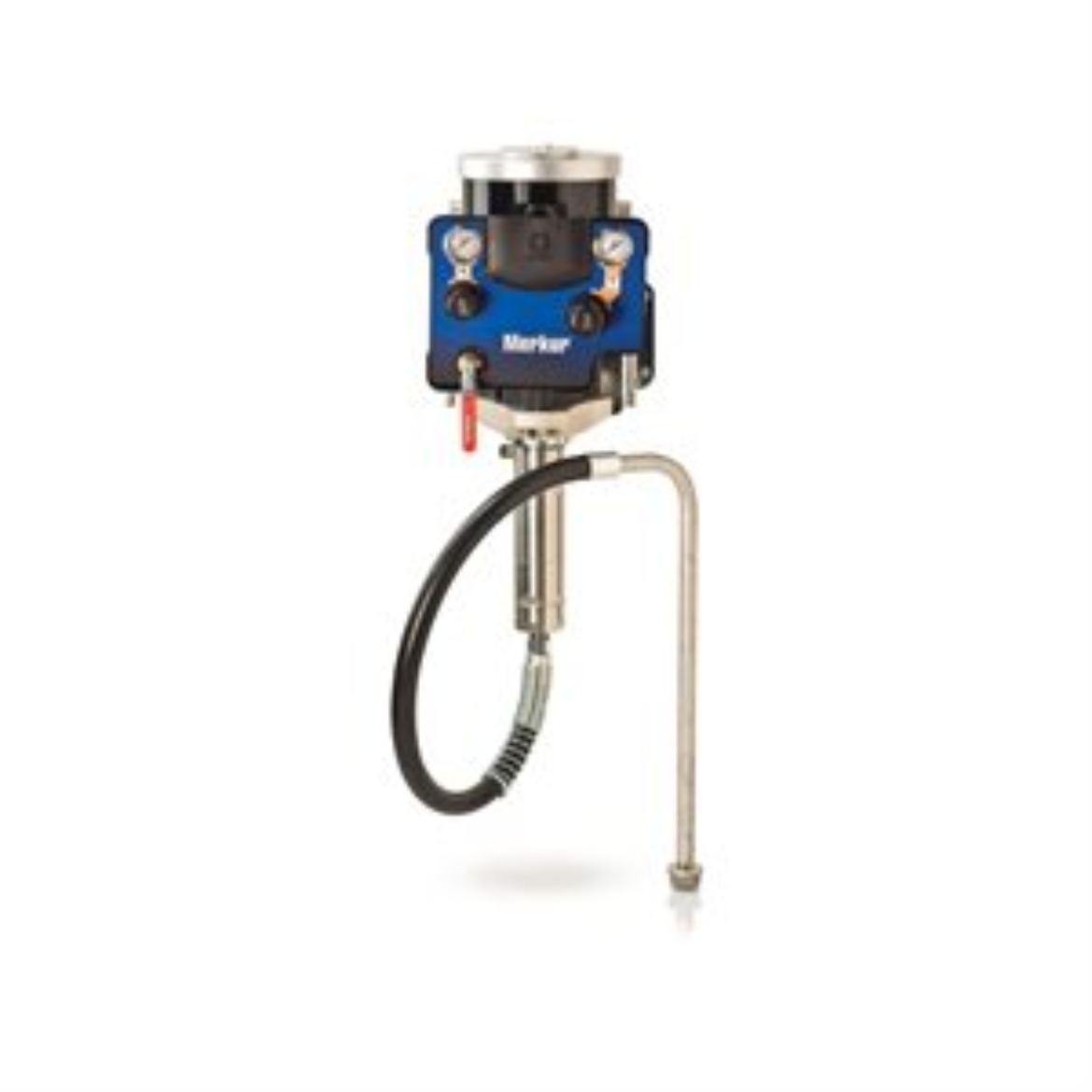

Graco G23W05 23:1 Merkur Pump, 1.6 gpm (6 lpm) fluid flow, Wall Mount, Pump Air Controls, Suction Hose, Fluid Filter
Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
- Proven to outperform and outlast other pumps in their class
- Highest technology air motor on the market
- Low air consumption for increased efficiency
- Compatible Material: Waterborne, Solvent borne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating
- Fluid Inlet Size (cm): 1.905
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Size (mm): 19.05
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 0.9525
- Fluid Outlet Size (in): 3/8
- Fluid Outlet Size (mm): 9.525
- Fluid Outlet Thread Type: NPT
- Gun Included: 0
- Gun Model: No Applicator
- Gun Technology: Bare Package
- Gun Type: No Applicator
- Hose Inlet Diameter (cm): 0.476
- Hose Inlet Diameter (in): 3/16
- Hose Inlet Diameter (mm): 4.76
- Includes: Pump Only Air Controls, Suction Hose, Fluid Filter
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 1.6
- Maximum Flow Rate (L/min): 6.0
- Maximum Working Pressure (bar): 159
- Maximum Working Pressure (kPa): 15900
- Maximum Working Pressure (psi): 2300
- Pressure Type: High Pressure
- Product Type: Bare Package
- Pump Ratio: 23:1
- Pump Type: Pneumatic Piston Pump
