GG G25B09
MERKUR BELLOWS SYSTEM, PUMP, 50CC, STD

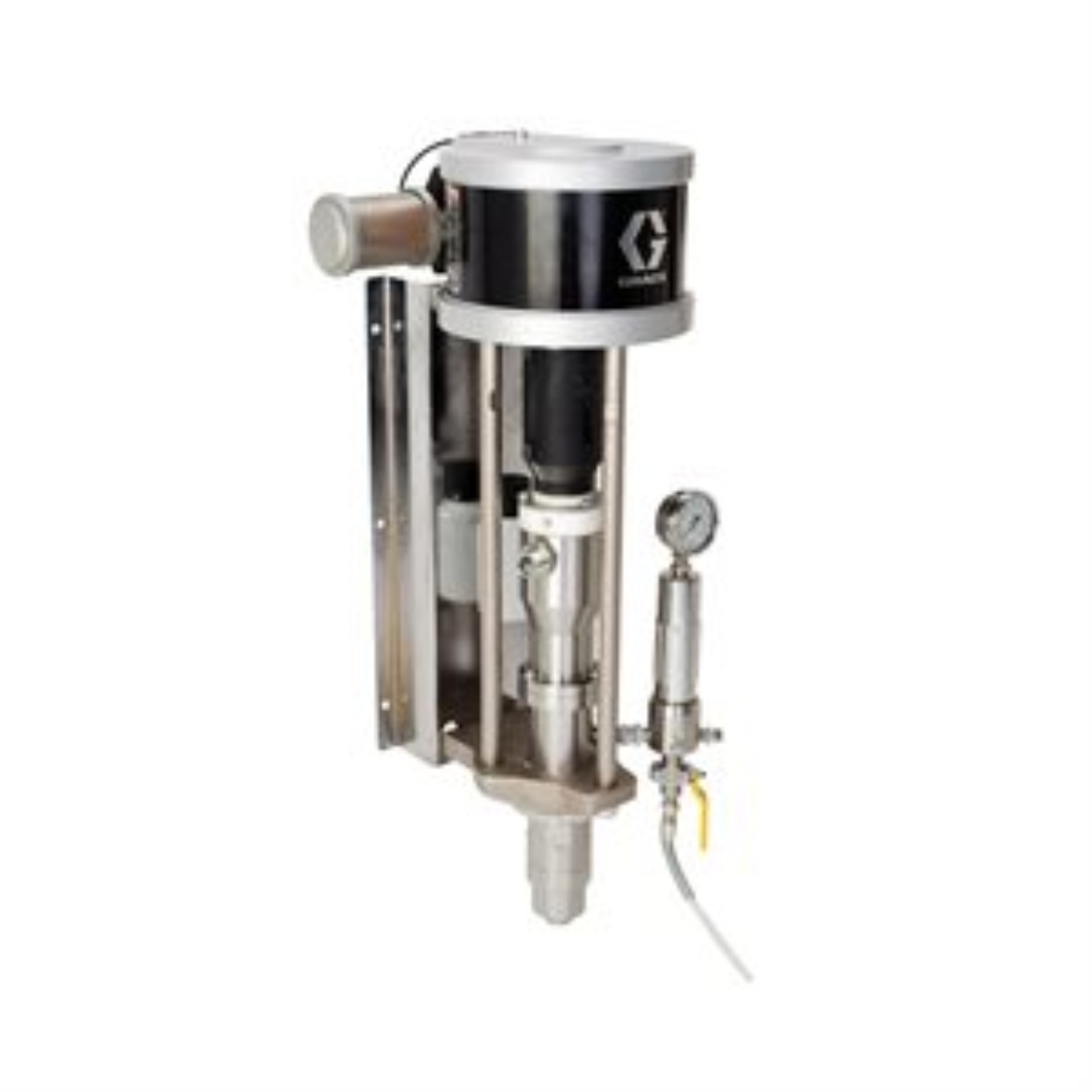

Graco G25B09 Merkur™ Bellows 25:1 Ratio Pump Package with Wall Mount & V-Packing
The gentle pumping action of the Merkur Bellows Pump, combined with reduced sealing surfaces, provides superior handling of shear-sensitive materials, including UV coatings and waterborne materials.
- Highest technology air motor on the market
- Low air consumption for increased efficiency
- Simple air motor design and minimal parts reduces repair time
- 300 series stainless steel pump construction provides long-lasting durability
- Fewer parts and online replacement bellows seal means improved serviceability, lower cost of ownership and reduced downtime
- Model: Merkur
- Series: Bellows
- Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish, UV Coating
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 0.9525
- Fluid Outlet Size (in): 3/8
- Fluid Outlet Size (mm): 9.53
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Includes: Pump Only Air Controls
- Material: Stainless Steel
- Maximum Flow Rate (gpm @ 60 cpm): 0.8
- Maximum Operating Temperature (°F): 120
- Maximum Working Pressure (bar): 172
- Maximum Working Pressure (kPa): 17200
- Maximum Working Pressure (MPa): 17.2
- Maximum Working Pressure (psi): 2500
- Mount Location: Wall Mount
