Merkur Bellows System, Pump, 150Cc, Std

GG G15B59

MERKUR BELLOWS SYSTEM, PUMP, 150CC, STD

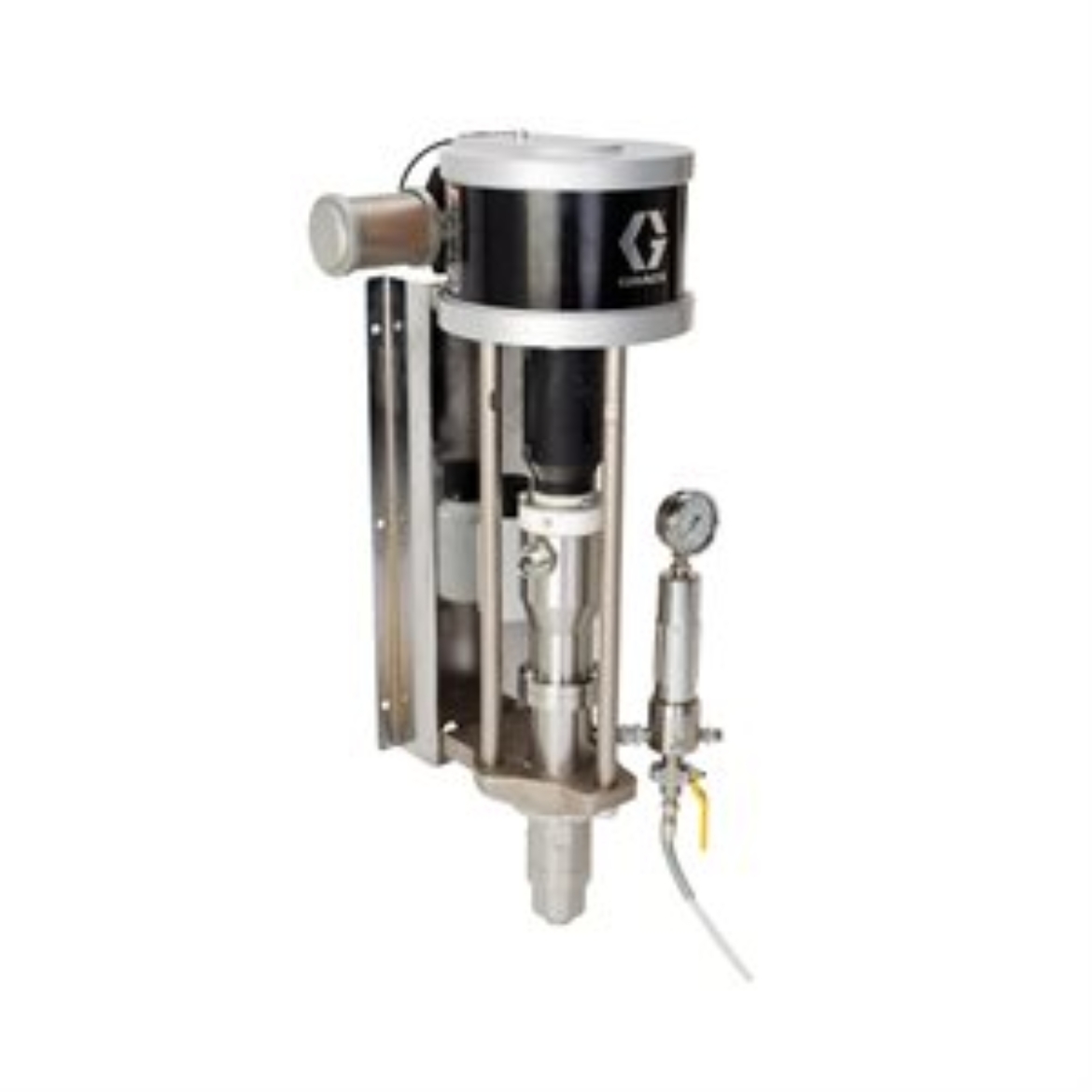

Graco G15B59 Merkur Bellows 15:1 Ratio Pump Package with Wall Mount & V-Packing

The gentle pumping action of the Merkur Bellows Pump, combined with reduced sealing surfaces, provides superior handling of shear-sensitive materials, including UV coatings and waterborne materials.

• Highest technology air motor on the market
• Low air consumption for increased efficiency
• Simple air motor design and minimal parts reduces repair time
• 300 series stainless steel pump construction provides long-lasting durability
• Fewer parts and online replacement bellows seal means improved serviceability, lower cost of ownership and reduced downtime

• Model: Merkur
• Series: Bellows

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish, UV Coating

• Fluid Inlet Size (cm): 2.5400
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4000
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.905
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT

• Includes: Pump Only Air Controls

• Material: Stainless Steel

• Maximum Flow Rate (gpm @ 60 cpm): 2.4

• Maximum Operating Temperature ( degree F): 120

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500

• Motor Type: Pneumatic

• Mount Location: Wall Mount

• Number of Pieces: 1
