Merkur Bellows System,Pump,100Cc,Std

GG G35B35

MERKUR BELLOWS SYSTEM, PUMP, 100CC, STD

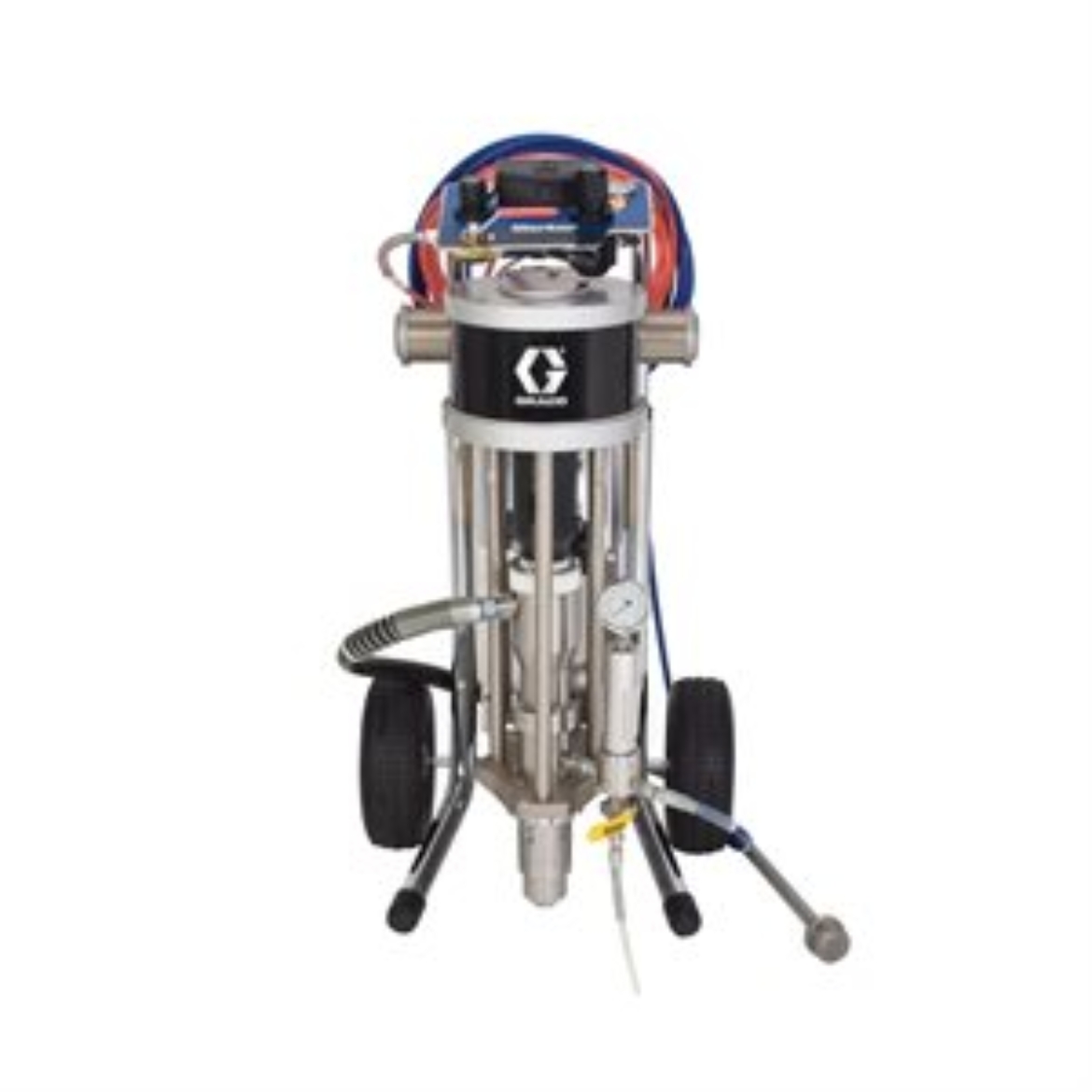

Graco G35B35 Merkur Bellows 35:1 Ratio Airless Package with Cart Mount, V-Packing & XTR Gun

The gentle pumping action of the Merkur Bellows Pump, combined with reduced sealing surfaces, provides superior handling of shear-sensitive materials, including UV coatings and waterborne materials.

• Highest technology air motor on the market
• Low air consumption for increased efficiency
• Simple air motor design and minimal parts reduces repair time
• 300 series stainless steel pump construction provides long-lasting durability
• Fewer parts and online replacement bellows seal means improved serviceability, lower cost of ownership and reduced downtime

• Model: Merkur
• Series: Bellows

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish, UV Coating

• Convertible: Non-Convertible

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 3.75
• Fluid Outlet Thread Type: NPT

• Frame Configuration: Cart

• Includes: Pump Air controls, XTR Gun, Fluid Hose, Gun Fluid Hose, Suction Hose and Tube, Drain Valves, Fluid Filter

• Maximum Flow Rate (GPM): 1.6
• Maximum Flow Rate (L/min): 6.0

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.5

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Motor Type: Pneumatic

• Number of Guns: 1

• Outlet Paint Filter: 60 Mesh Stainless Steel Screen

• Power Source: Air

• Pump Type: Piston
