Merkur Bellows System,Pump,100Cc,Std

GG G35B09

MERKUR BELLOWS SYSTEM, PUMP, 100CC, STD

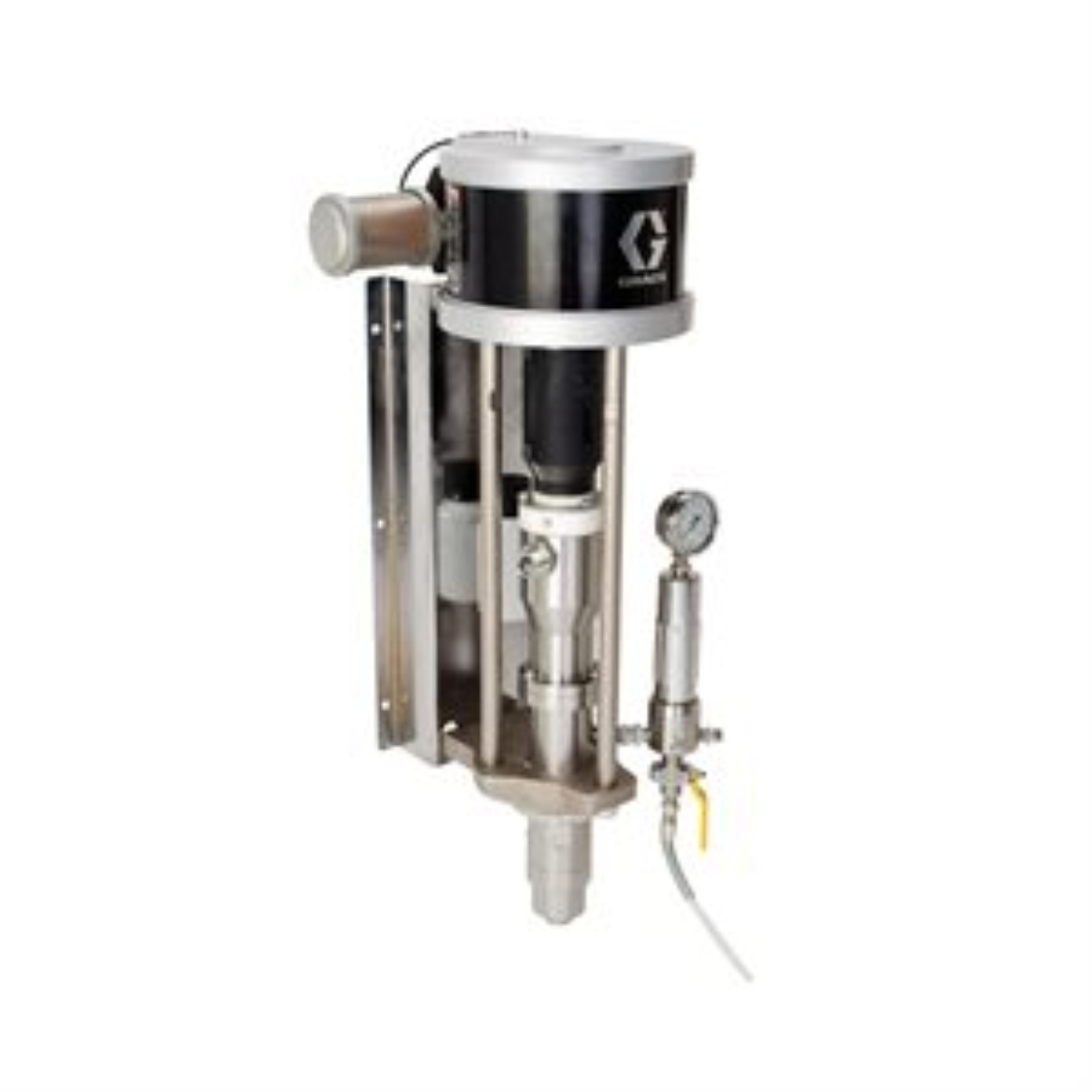

Graco G35B09 Merkur Bellows 35:1 Ratio Pump Package with V-Packing Seal, Wall Mount

Graco's Merkur bellows piston pumps provide low maintenance with no seals exposed to the atmosphere. These pumps are designed to eliminate conventional throat seals, providing high reliability for moisture-sensitive materials.

• Highest technology air motor on the market
• Low air consumption for increased efficiency
• Simple air motor design and minimal parts reduces repair time
• 300 series stainless steel pump construction provides long-lasting durability

• Model: Merkur
• Series: Bellows

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish, UV Coating

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.53
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT

• Gun Model: No Applicator
• Gun Technology: Bare Package
• Gun Type: No Applicator

• Includes: Pump Only Air Controls, V-Packing

• Material: Stainless Steel

• Maximum Flow Rate (gpm @ 60 cpm): 1.6

• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Motor Type: Pneumatic

• Mount Location: Wall Mount
• Mount Type: Wall Mount

• Number of Pieces: 1

• Product Type: Bare Package

• Pump Ratio: 35:1
• Pump Type: Pneumatic Piston Pump
