Merkur Bellows System,Pump,100Cc,Std

GG G23B01

MERKUR BELLOWS SYSTEM, PUMP, 100CC, STD

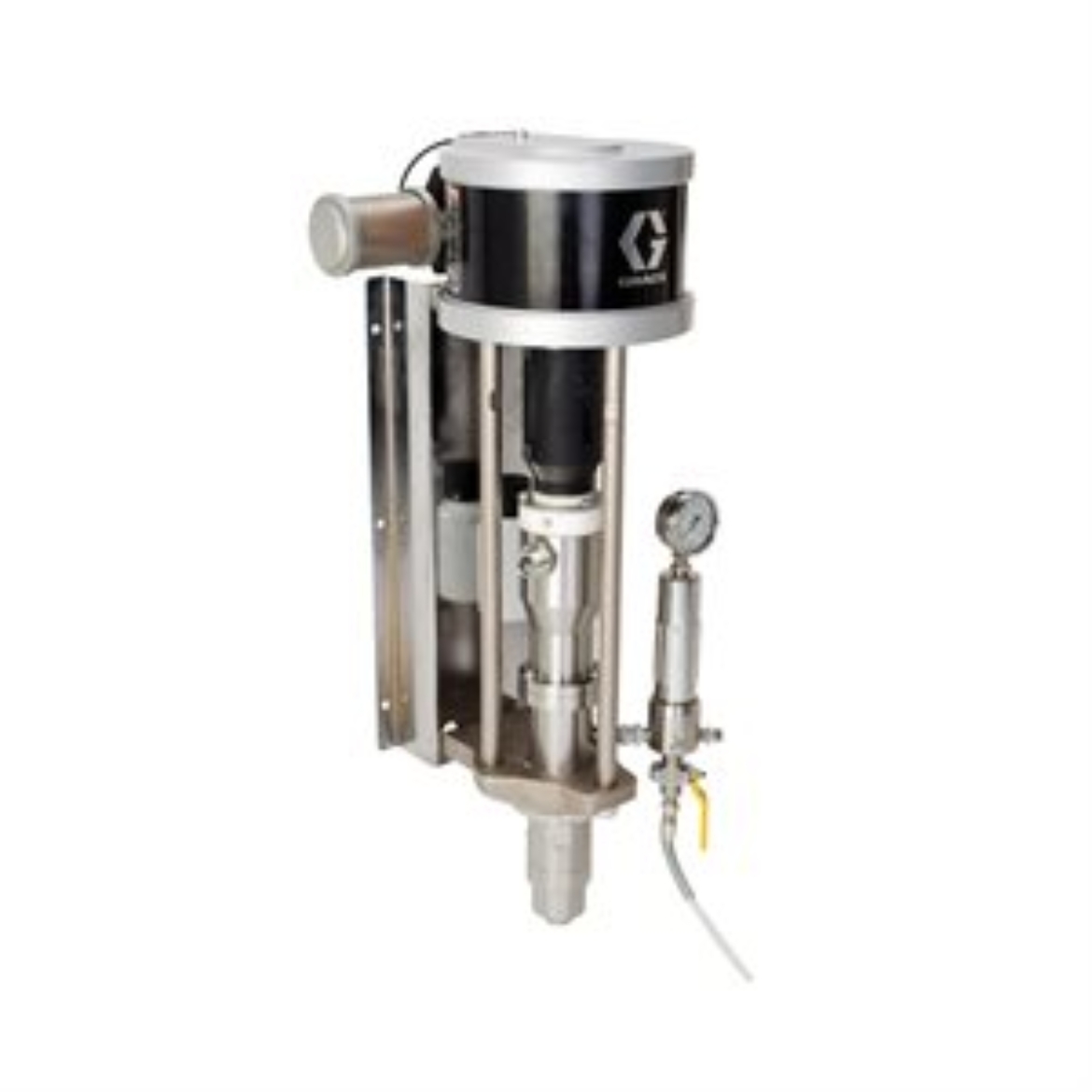

Graco G23B01 Merkur Bellows 23:1 Ratio Pump Package with Wall Mount & V-Packing

The gentle pumping action of the Merkur Bellows Pump, combined with reduced sealing surfaces, provides superior handling of shear-sensitive materials, including UV coatings and waterborne materials.

• Highest technology air motor on the market
• Low air consumption for increased efficiency
• Simple air motor design and minimal parts reduces repair time
• 300 series stainless steel pump construction provides long-lasting durability
• Fewer parts and online replacement bellows seal means improved serviceability, lower cost of ownership and reduced downtime

• Model: Merkur
• Series: Bellows

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish, UV Coating

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.53
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT

• Includes: Pump Only Air Controls, Fluid Filter

• Material: Stainless Steel

• Maximum Flow Rate (gpm @ 60 cpm): 1.6

• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 159
• Maximum Working Pressure (kPa): 15900
• Maximum Working Pressure (MPa): 15.9
• Maximum Working Pressure (psi): 2300

• Motor Type: Pneumatic

• Mount Location: Wall Mount

• Number of Pieces: 2
