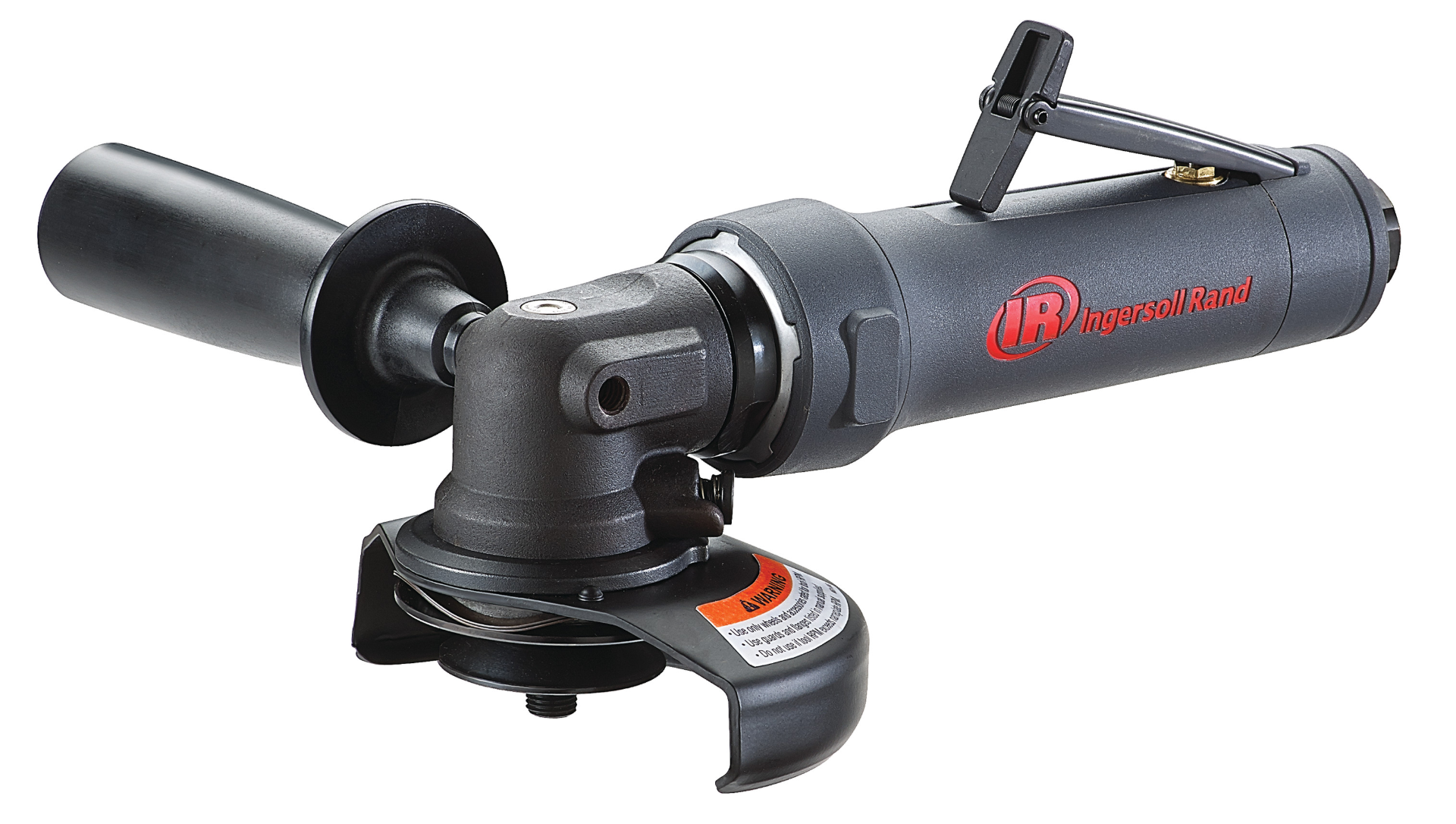

Mercury Angle Grinder

IR M2A120RP64

Angle Air Grinder, 4" Type 27 Wheel, 12,000 RPM, 1 HP, 3/8" -24 Thread, Rear Exhaust

Description: Get fast material removal from a powerful tool that does more, is easier to use, and needs less maintenance. The M2 Series angle grinders feature more-powerful, lube-free motors and are available in various speeds and configurations to match virtually any job.

Features And Benefits:

• Power: With a powerful, lube-free 1 HP 12,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Product Application and Uses:

These are grinders are designed for material removal or cutting off using a rotated abrasive wheel for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.

• Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
• Actuation/Throttle Type/Switch Location: Handle
• Actuation/Throttle Type/Switch Type: Safety Lever
• Air Consumption @ Free Speed (cfm): 20
• Air Consumption @ Free Speed (l/min): 566
• Air Consumption @ Load (cfm): 40
• Air Consumption @ Load (l/min): 1133
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 3/8" -24 Thread

• Bearing Type: Ball Bearing
• Bearing Type: Needle Bearing

• Color: Grey
• Configuration/Handle Type: Right Angle
• Duty Rating: Industrial Duty

• Exhaust Location: Rear

• Grinder Type: Angle Grinder
• Guard Material: Steel
• Handle Material: Composite
• Height Over Spindle (in): 3.85
• Housing Material: Aluminum core with composite sleeve
• Lock Mechanism: Lever lock in off position

• Max Free Speed (rpm): 12000
• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/8

• Power Source: Air Powered
• Product Length (in): 9.29

• Product Weight (lb): 3.76
• Rated Power (hp): 1
• Right Angle Length (in): 8.06
• Right Angle Length (mm): 205

• Side to Center Distance (in): 5.86
• Side to Center Distance (mm): 149

• Sound Pressure/Power Db(A): 87 / 98
• Speed Setting: Variable Speed

• Vibration Level (m/s2): 5.1
• Warranty: 1-year
• Wheel Diameter (in): 4
• Wheel Thickness (in): 1/4
• Wheel Type: Type 27

• Lubrication: 10P
• Parts: 301-69A
