MD2 Valve 1:1 Elite Low Flow Snuff

GG 255901

MD2 VALVE, DISPENSE, 1:1, ELITE, SNUFF

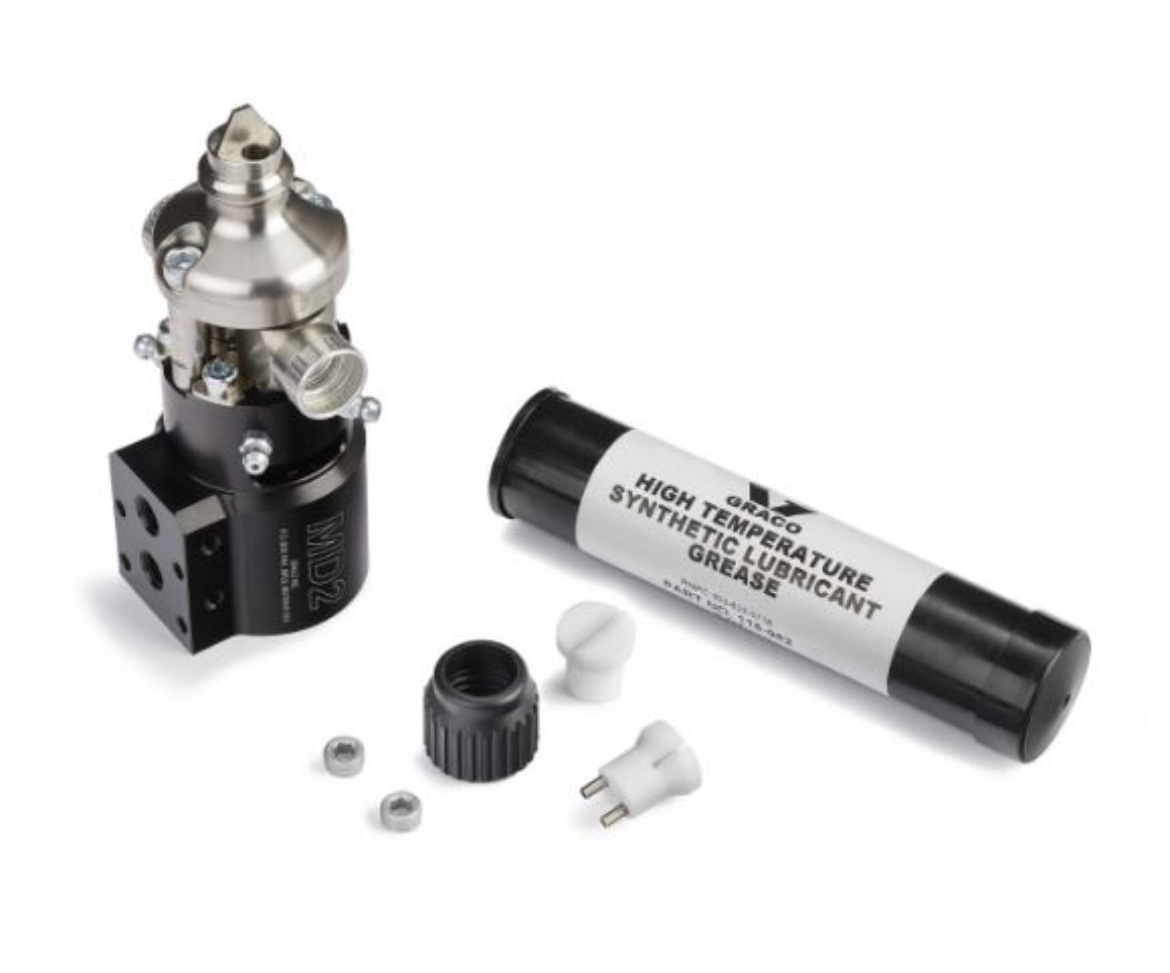

MD2 Valve, 1:1 Ratio, Elite Hard Seat, Non-adjustable Snuff-backMixing dispense (MD) valve for 2 component materials minimizes maintenance while maximizing production.Static valve with Elite construction reliably dispenses highly abrasive thermal interface materials (TIMs), silicones, urethanes, and epoxies.1:1 ratio nose handles a wide range of material.Hard seats with Elite construction withstand highly abrasive material at least 10 times longer than standard construction. (Data verified in Graco test environment.)Snuff-back control prevents dripping as it brings material back into the valve until next dispense.Non-adjustable snuff-back control keeps shut-off performance consistent for a clean bead dispense. Maximum flow rate is 25 to 30 cc/s, depending on material viscosity.No unique tools are required for maintenance or repair.Grease isolation chamber protects moisture sensitive materials and has accessible grease fittings for easy maintenanceNo unique tools required
