Md Valve, Feeder, 4

GG 562658

MD VALVE, FEEDER, 4

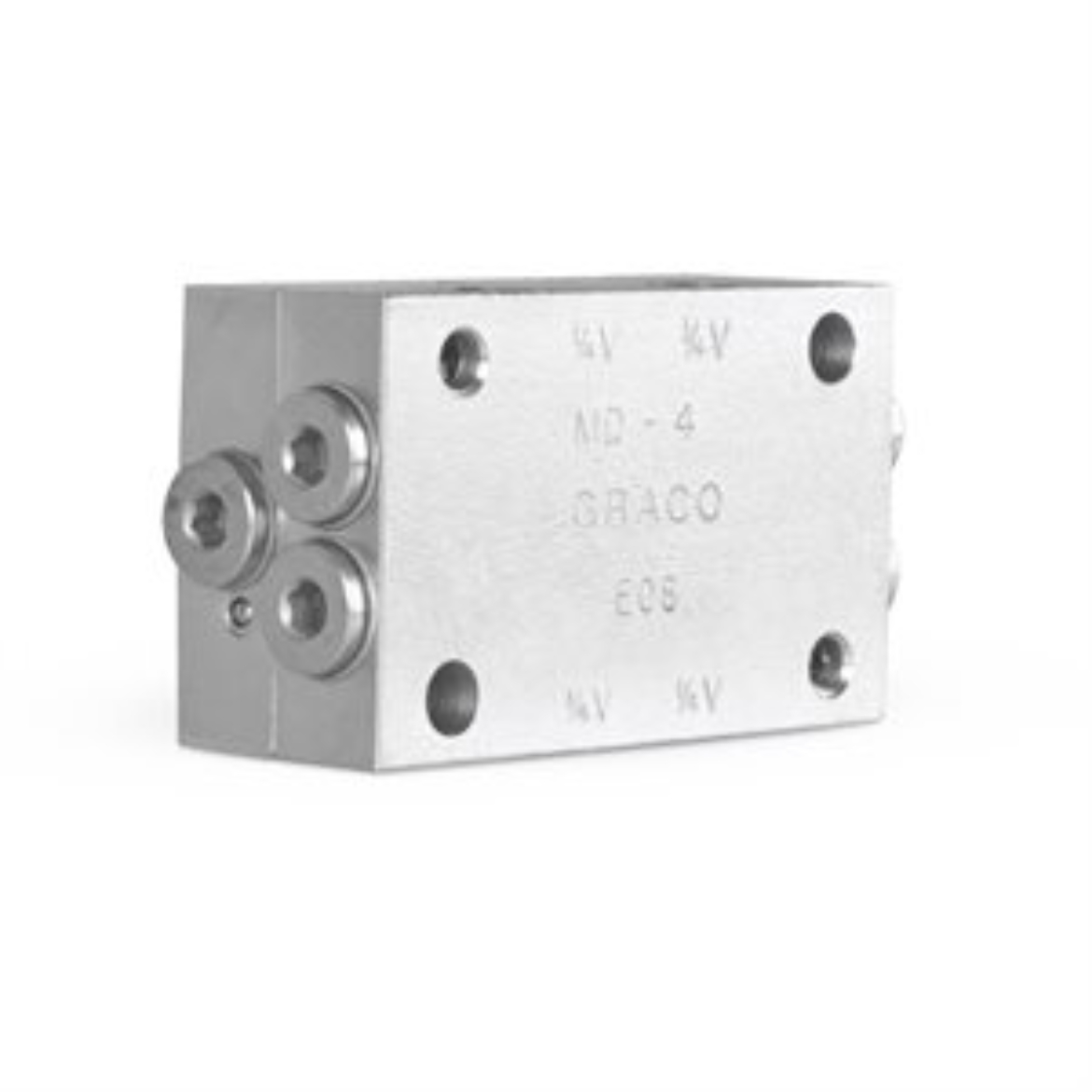

Graco 562658 Trabon MD Mono Block Divider Valve - MD-4

The Trabon MD Series is the most compact series progressive solution making it a perfect fit for tight spaced applications

• 4 outlets
• Easy to install on new or existing equipment
• Use our cycle indicator pin models to provide positive assurance of a successful lube event
• Lubriquip part number 103-000-151

• Model: Trabon
• Series: MD

• Application: On-Road Vehicles, Off-Road Equipment, In-Plant Machinery

• Compatible Material: Oil, Grease

• Cycle Indicator: None

• Discharge Per Piston Stroke (in cu ): 0.012

• Divider Valve Series: MD

• Inlet Size (cm): 0.3175
• Inlet Size (in): 1/8
• Inlet Size (mm): 3.1750

• Inlet Thread Gender: Female
• Inlet Thread Type: NPSF

• Material: Carbon Steel

• Maximum Cycle Rate (cycles/min): 200

• Maximum NLGI Grade: #2

• Maximum Operating Temperature ( degree C): 176
• Maximum Operating Temperature ( degree F): 350

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 20670
• Maximum Working Pressure (psi): 3000

• Minimum Working Pressure (bar): 14

• Minimum Working Pressure (psi): 200

• Number of Outlets: 4

• Outlet Size (cm): 0.3175
• Outlet Size (in): 1/8
• Outlet Size (mm): 3.1750
• Outlet Thread Gender: Female
• Outlet Thread Type: NPSF
