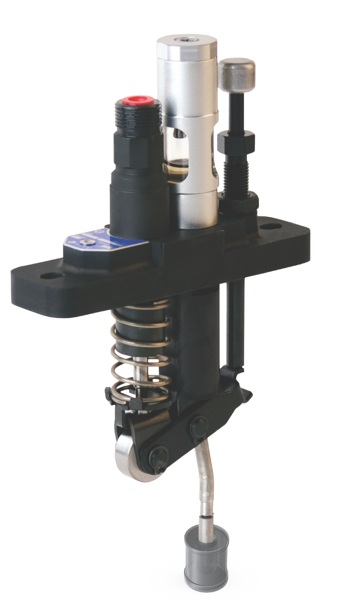

Manzel GBL 7500 Replacement Pump, Suction Fed, 3/16 in (4.8 mm)

GG 24J391

GBL 7500 PUMP, SUCTION, 3/16

Graco 24J391 Manzel GBL 7500 Replacement Pump, Suction Fed, 3/16 in (4.8 mm)

The Graco Manzel GBL 7500 Suction pump is engineered for long-life and maximum flexibility for easy system integration. It has been improved to perform in best-practice applications for a durable solution that is hard to beat.

• Mechanically driven from camshaft in reservoir.
• Adjustable from 1 to 27 drops per stroke and develop pressures up to 7,500 psi (517 bar).
• Rugged construction for high quality performance and durability with easy to adjust pump output.
• Double Ball Outlet Check reduces ball travel.
• Improved O-ring seals to eliminate leak paths.
• Patent pending Built-in-Socket spreads force evenly over piston tip to avoid bending and wear for long piston and rocker life.
• Ball bearing roller has superior rotation to help protect camshaft from damage. Larger diameter roller spreads load pressure to reduce wear and improve pump life.

• Model: Manzel
• Series: GBL 7500

• Application: In-Plant Machinery, Compressor Equipment

• Compatible Material: Oil

• Maximum Cycle Rate (CPM): 50

• Maximum Output Volume (in cu ): 0.014

• Maximum Working Pressure (bar): 517
• Maximum Working Pressure (kPa): 51700
• Maximum Working Pressure (MPa): 51.7
• Maximum Working Pressure (psi): 7500
