Magnum Sprayer, X7

GG 262805

MAGNUM SPRAYER, X7

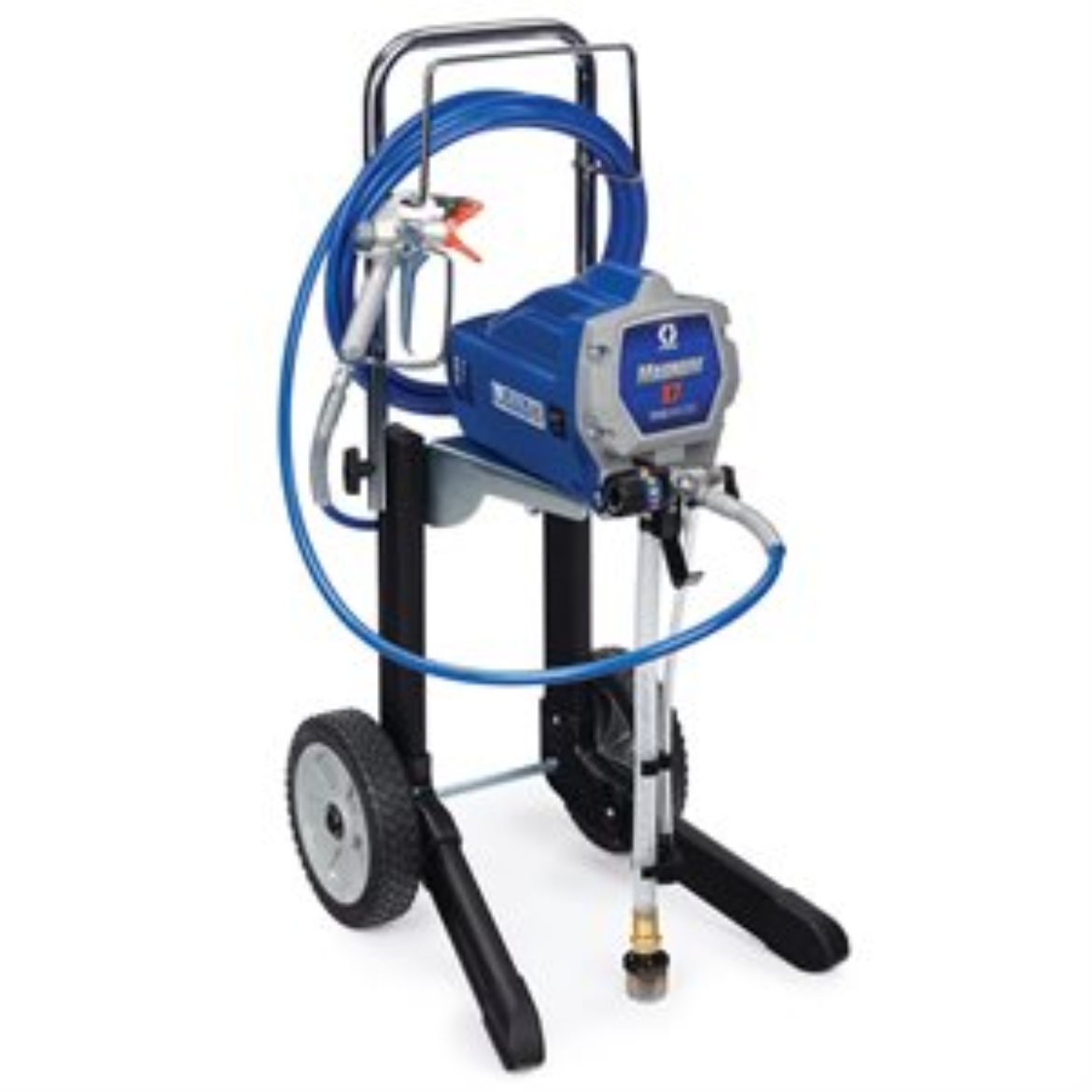

Graco 262805 Magnum X7 Electric TrueAirless Sprayer

DIY homeowners and handymen will save time and money with the Magnum X7 with built-in cart. Tackle any interior project, exterior houses, fences and decks. The X7 supports a larger tip size for spraying heavier coatings and the convenient cart makes any painting project faster and easier.

• Hardened Stainless Steel Piston Pump - Delivers high pressure power to spray unthinned paints
• Flexible Suction Hose - Spray directly from 1 or 5 gallon paint container
• Convenient Cart - Easily move sprayer around on the job
• TrueAirless Spray Tip with SoftSpray Technology - greater control and less overspray with a wide range of coatings
• Power Flush Adapter - Connects to a garden hose for fast and easy cleaning
• PushPrime - Fast and reliable start-up every time
• Adjustable Pressure Control - Easy control of paint flow

• Model: Magnum
• Series: X7
• Product Series: Project

• Amperage (A): 9.0

• Compatible Tip Size (in): 0.009, 0.011, 0.013, 0.015, 0.017

• Engine Size (HP): 0.625

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Type: NPSM

• Frame Configuration: Cart

• Includes: SG2 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 25 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide
• Inlet Paint Strainer: 35 Mesh Stainless Steel Screen

• Maximum Flow Rate (GPM): 0.31
• Maximum Flow Rate (L/min): 1.2

• Maximum Hose Length (ft): 100
• Maximum Hose Length (m): 30

• Maximum Tip Size (in): 0.017
• Maximum Tip Size Gun 1 (in): 0.017

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Minimum Generator Power (W): 2500

• Motor Type: Universal

• Number of Guns: 1

• Overall Height (cm): 94.0
• Overall Height (in): 37.0
• Overall Height (mm): 940
• Overall Length (cm): 49
• Overall Length (in): 19.3
• Overall Length (mm): 490
• Overall Width (cm): 38.9
• Overall Width (in): 15.3
• Overall Width (mm): 389

• Phase: 1

• Power Rating (HP): 0.625
• Power Rating (kW): 0.47
• Power Rating (W): 466
• Power Source: Electric
• Pressure Control Type: Adjustable

• Pump Rod Type: Hardened Stainless Steel
• Pump Sleeve Material: Stainless Steel

• Recommended Annual Usage (gal): 125
