Low Pressure RAC X LP Switchtip, 631

GG LP631

RAC X LP TIP, SPRAY, (631)

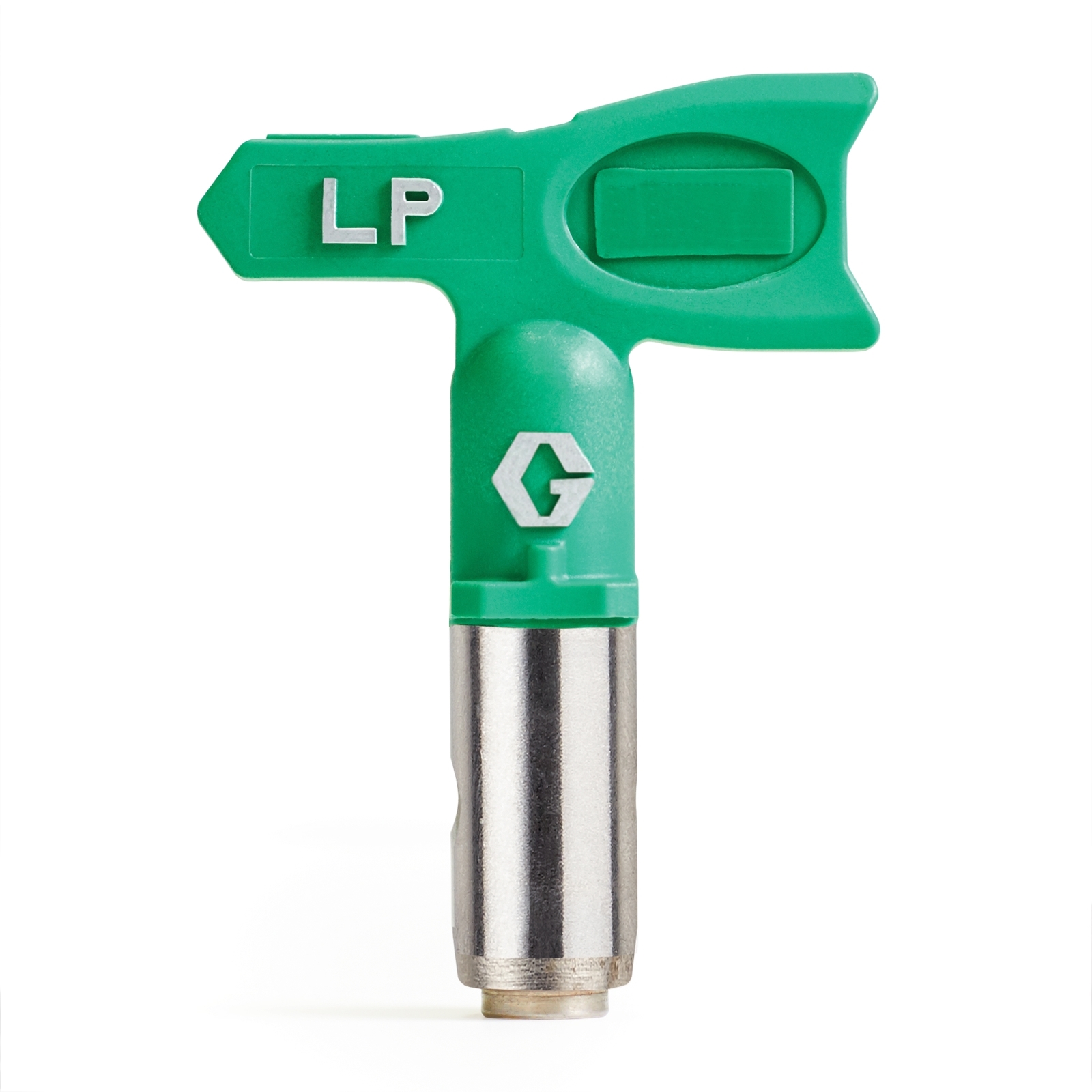

Graco LP631 Low Pressure RAC X LP SwitchTip, 631

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 631 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 12 to 14 inch fan pattern and has a 0.031 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Less Prep & Cleanup Time
  • Less mess with less overspray
  • Put the paint where you want it
• Easiest Pattern Overlap
  • Softer spray fan pattern
  • Easy to apply any material to any surfance
  • Consistent blended finish quality
• Extended Life
  • Spraying at half pressure doubles tip life
  • Reduced sprayer maintenance - up to 2X life
• Best Tip on the Market
  • Works with any airless sprayer
  • Longest lasting fan pattern
  • Highest quality finish with a consistent spray pattern
• Easy to Identify Tip Size
  • Large raised tip size numbers are always legible - even when covered with paint
• Superior Tip Design
  • Locking tab ensures tip stays securely in guard
  • Snaps tip in spray or reverse position
  • OneSeal tip gasket installs with no tools
  • Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LP SwitchTip

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 30
• Maximum Fan Width (in): 12
• Maximum Fan Width (mm): 356

• Maximum Flow Rate (GPM): 1.03
• Maximum Flow Rate (L/min): 3.90

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 12
• Minimum Fan Width (mm): 305

• Orifice Diameter (in): 0.031
