GG 25D340
LINELAZER SPRAYER, V, 250SPS, 2 GUN, 2PBS, LSR

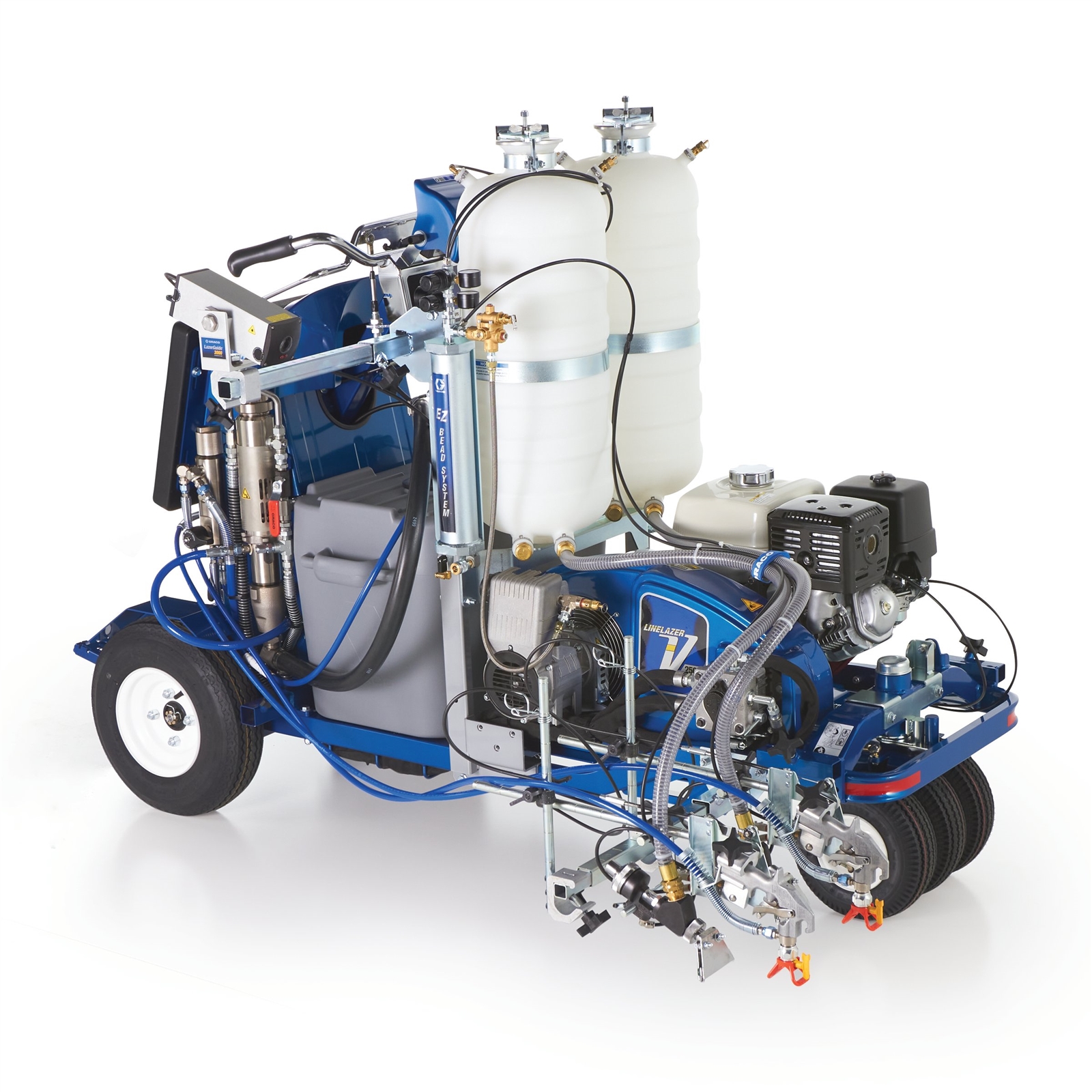

Graco 25D340 LineLazer V 250SPS HP Reflective Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns, 2 Tanks, LazerGuide 3000
With exclusive automatic paint guns and hydraulic power, the LineLazer V 250SPS HP Reflective Series is a self-propelled system with reflective bead capability designed for large, heavy-duty line striping jobs including parking lots and road jobs.
Application: The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.
- Pressurized EZ Bead System
- Superior Bead Application Performance
- Ensures proper bead flow and paint penetration
- Dual bead tanks hold up to 120 lbs each
- Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
- LazerGuide 3000 Long-Line Lazer
- Easier, laser-straight lines
- Longer distance accuracy
- Highly-visible laser guise
- Faster, simple operation
- 25-Gallon Paint Hopper
- Less Refilling
- Extended striping time with large capacity hopper
- Honda GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Electric Start
- EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- Front or Rear Gun Mount
- Straighter long lines
- Use up to six guns
- Additional Features
- Self-Centering Front Wheel
- Easy Handlebar Adjustment
- Endurance Chromex Pump
- High-Efficiency Hydraulic Motor
- High-Capacity Cooling System
- Easy Out Pump Filter
- Model: LineLazer V
- Series: 250SPS
- Product Series: HP Reflective
- Attachments: LazerGuide 3000
- Bead System: Pressurized Bead System
- Bead Tank Size (lb): 240
- Compatible Material: Road-Marking Paint
- Compatible Surfaces: Pavement, Turf
- Engine Brand: Honda
- Engine Model: GX390
- Fuel Tank Capacity (gal): 1.4
- Fuel Tank Capacity (L): 5.3
- Gun Activation: 2 Automatic
- Hopper Volume Capacity (gal): 25
- Hopper Volume Capacity (L): 95
- Includes: LazerGuide 3000, Pressurized Bead System (2 Tanks), Flex Plus Gun (2), LineLazer RAC 5 321 Spray Tip (2), LineLazer RAC 5 425 Spray Tip (2), LineLazer RAC 5 627 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose, 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 mL)
- Maximum Flow Rate (GPM): 2.5
- Maximum Flow Rate (L/min): 9.46
- Maximum Tip Size (cm): 0.1397
- Maximum Tip Size (in): 0.055
- Maximum Tip Size (mm): 1.397
- Maximum Working Pressure (bar): 227
- Maximum Working Pressure (kPa): 2270
- Maximum Working Pressure (psi): 3300
- Number of Colors: One Color
- Number of Guns: 2
- Number of Hoppers: 1
- Number of Pumps: 1
