GG 17H463
LINELAZER SPRAYER, V, 200HS, AUTO, 1A 1M, LSR

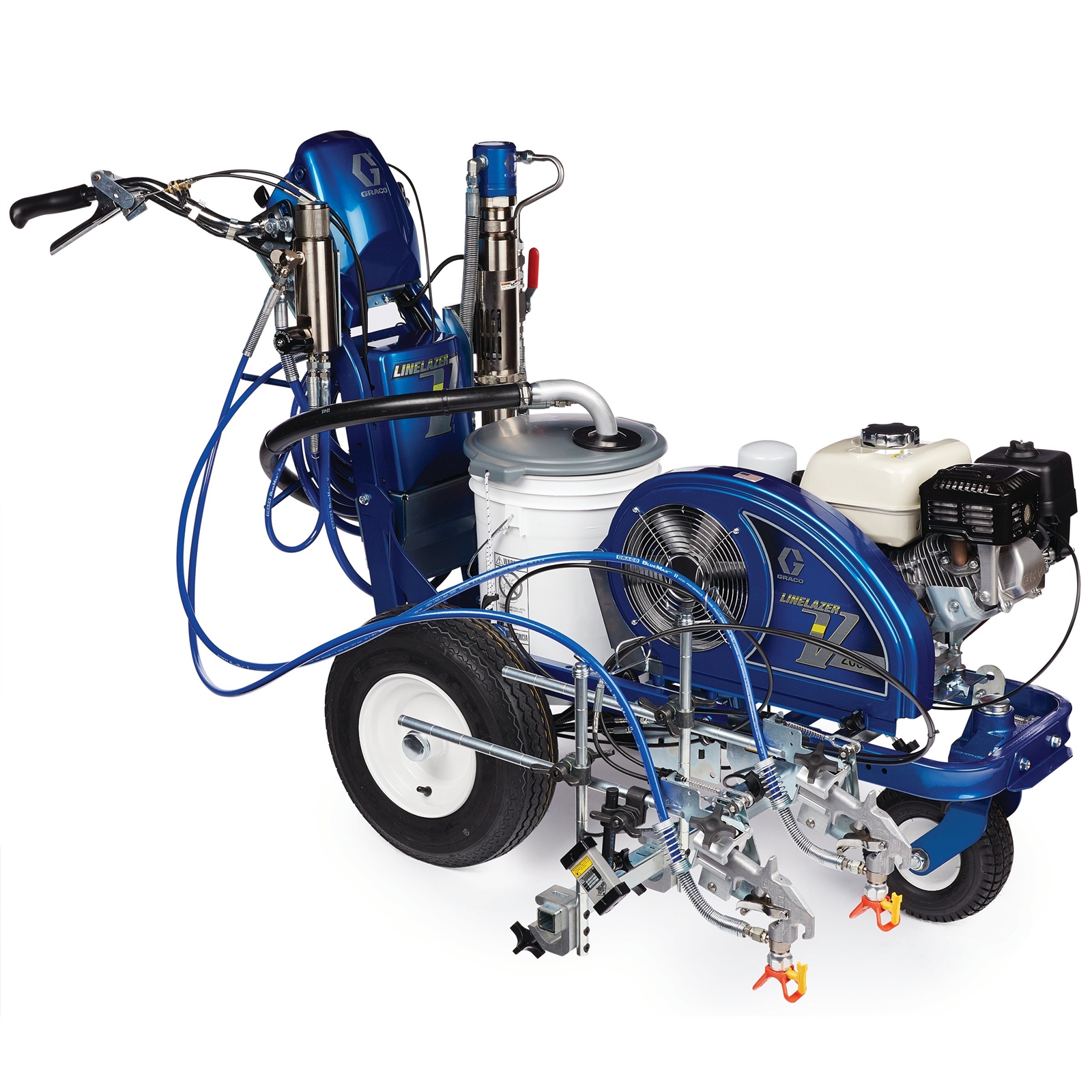

Graco 17H463 LineLazer V 200HS HP Automatic Series Gas Hydraulic Airless Line Striper, 1 Auto Gun, 1 Manual Gun
With high production features, the LineLazer V 200HS HP Automatic Series is a true workhorse designed for high performance striping on the most demanding jobs like large parking lots, airports, and city jobs that require precise lines.
Application: The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.
- Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
- Auto-Layout II
- Simplify Parking Lot Layout
- SmartControl measures while you walk and puts down pre-marks
- No need for measuring tape, string lines or aerosol cans
- Cuts your layout time in half
- LiveLook Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
- Honda GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
- DualComfort Handlebar System
- Easy Handlebar Adjustment
- Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
- Additional Features
- High-Efficiency Hydraulic Motor
- High-Capacity Cooling System
- QuikSelect Gun Selector
- Easy Out Pump Filter
- LazerGuide 1700 Start/Stop Laser
- Model: LineLazer V
- Series: 200HS
- Product Series: HP Automatic
- Attachments: LazerGuide 1700
- Compatible Material: Road-Marking Paint
- Compatible Surfaces: Pavement, Turf
- Engine Brand: Honda
- Engine Model: GX200
- Fuel Tank Capacity (gal): 0.95
- Fuel Tank Capacity (L): 3.6
- Gun Activation: 1 Automatic & 1 Manual
- Includes: LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
- Maximum Flow Rate (GPM): 2.15
- Maximum Flow Rate (L/min): 8.14
- Maximum Sound Pressure Level (dB(A)): 86.5
- Maximum Tip Size (cm): 0.1194
- Maximum Tip Size (in): 0.047
- Maximum Tip Size (mm): 1.194
- Maximum Working Pressure (bar): 227
- Maximum Working Pressure (kPa): 2270
- Maximum Working Pressure (psi): 3300
- Number of Colors: One Color
- Number of Guns: 2
- Number of Pumps: 1
- Power Rating (HP): 6.5
- Power Rating (kW): 4.85
- Pow
