GG 17H467
LINELAZER SPRAYER, LL V, 250SPS, 2 GUN

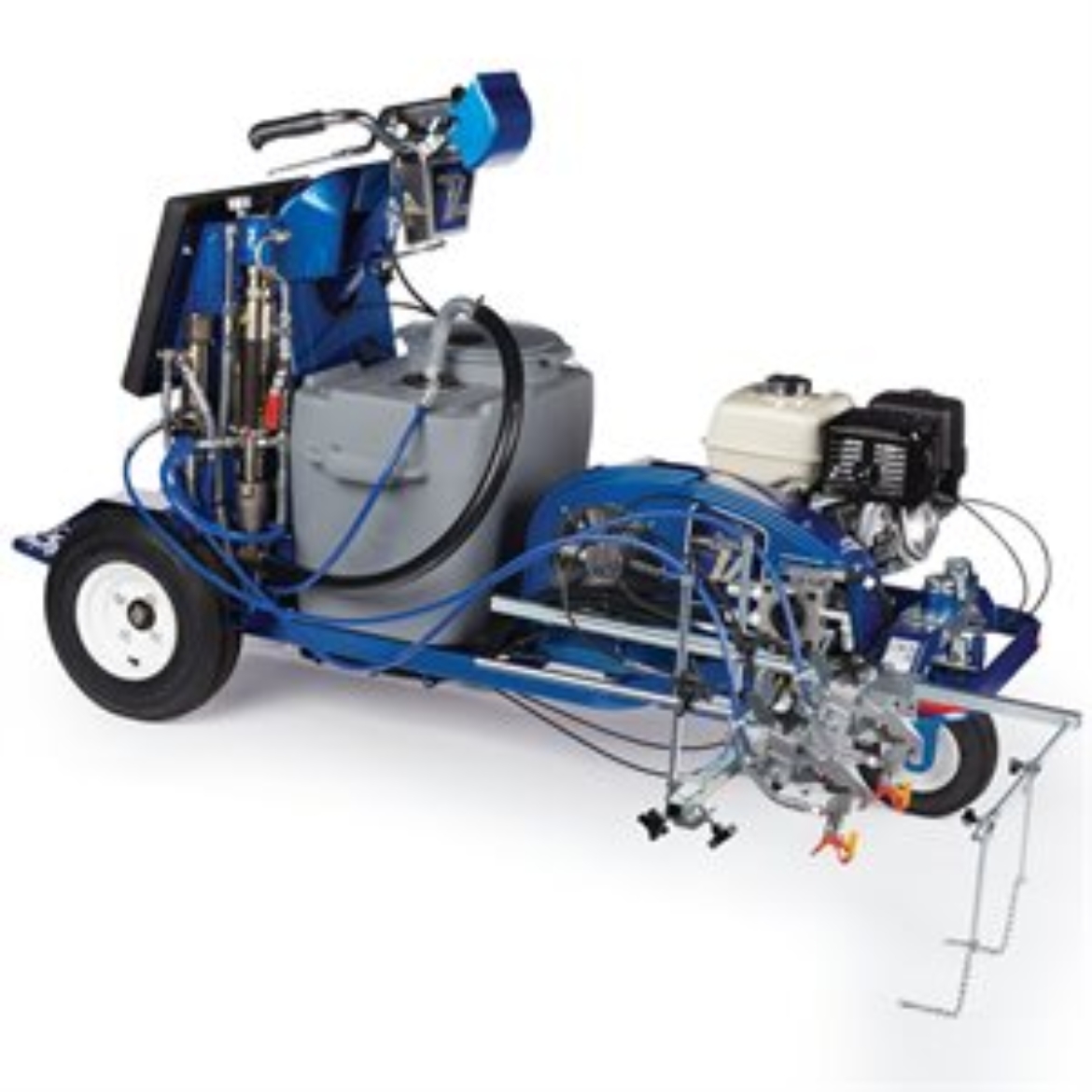

Graco 17H467 LineLazer V 250SPS HP Automatic Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns
With exclusive automatic paint guns and hydraulic power, the LineLazer V 250SPS HP Automatic Series is a self-propelled system that is ideal for large, heavy-duty line striping jobs including parking lots and road jobs.
Application: The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.
- Automatic Paint Gun System
Automatically Stripe Skip-Lines
Reduce operator fatigue — push button line production
Quality solenoid driven system
- Remote Mount Control Box
Striping Information At-A-Glance
Simple to use and easy to see in all conditions
- 25-Gallon Paint Hopper
Less Refilling
Extended striping time with large capacity hopper
- Electric Start
Fast starting
- EasyMark Gun Adjustment System
Easy Gun Adjustments
Perfect gun alignment every time with easy-to-use guide mark system
2-gun capability with QuikSelect gun selector
- Front or Rear Gun Mount
Straighter long lines
Use up to six guns
- Self-Centering Front Wheel
Simple operation
Foam-filled, three-wheel design for stability
- Easy Handlebar Adjustment
- Additional Features
Endurance Chromex Pump
High-Efficiency Hydraulic Motor
High-Capacity Cooling System
Easy Out Pump Filter
Flex Plus Guns
- Model: LineLazer V
- Series: 250SPS
- Product Series: HP Automatic
- Compatible Material: Road-Marking Paint
- Compatible Surfaces: Pavement, Turf
- Engine Brand: Honda
- Engine Model: GX390
- Fuel Tank Capacity (gal): 1.4
- Fuel Tank Capacity (L): 5.3
- Gun Activation: 2 Automatic
- Hopper Volume Capacity (gal): 25
- Hopper Volume Capacity (L): 95
- Includes: Flex Plus Gun (2), LineLazer RAC 5 321 Spray Tip (2), LineLazer RAC 5 425 Spray Tip (2), LineLazer RAC 5 627 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose, 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 mL)
- Maximum Flow Rate (GPM): 2.5
- Maximum Flow Rate (L/min): 9.5
- Maximum Operating Speed (km/h): 16.1
- Maximum Operating Speed (mph): 10
- Maximum Sound Pressure Level (dB(A)): 89.1
- Maximum Speed (RPM): 3600
- Maximum Tip Size (cm): 0.0991
- Maximum Tip Size (in): 0.039
- Maximum Tip Size (mm): 0.9906
- Maximum Working Pressure (bar): 227
- Maximum Working Pressure (kPa): 2270
- Maximum Working Pressure (psi): 3300
- Number of Colors: One Color
- Number of Guns: 2
- Number of Hoppers: 1
- Number of Pumps: 1
- Overall Height (cm): 128.3
- Overall Height (in): 50.5
- Overall Height (mm): 1282.7
- Overall Length (cm): 186.7
- Overall Length (in): 73.5
- Overall Length (mm): 1866.9
- Overall Width (cm): 83.8
- Overall Width (in): 33
- Overall
