GG HEH006

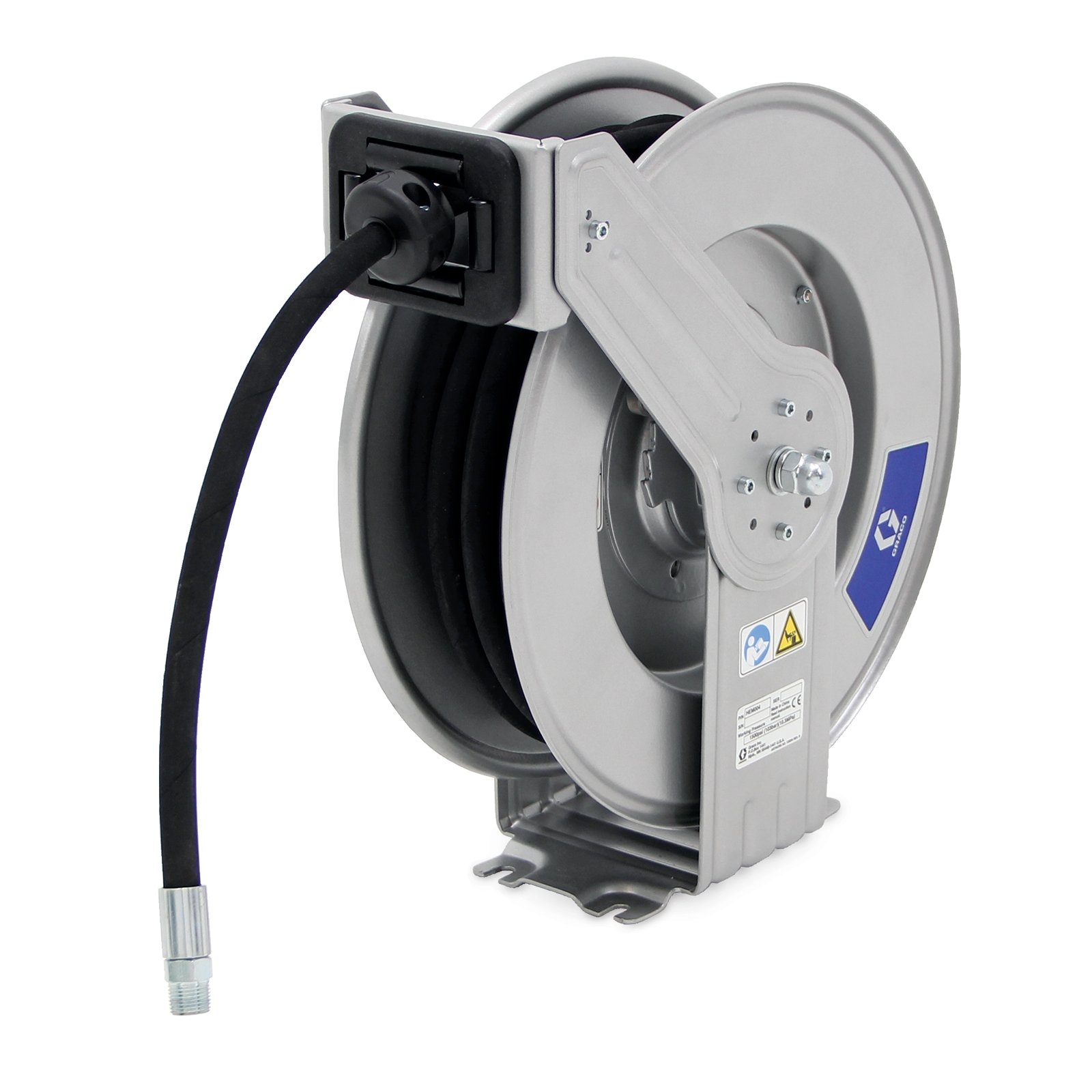

LDX SERIES REEL, HOSE, 3/8in X 50', GREASE
Graco HEH006 LDX Series, Grease, 3/8 in (10 mm) Inlet, 3/8 in X 50 ft (10 mm X 15 m) Hose, NPT
Graco's industrial-grade LDX hose reel offers incredible value for cost-conscious workshops. Its all-metal frame and specially crafted, long-lasting components provide consistent release and retraction.
Application: Designed for smaller garages, independent repair facilities and industrial manufacturing environments.
- Dual Pedestal Frame - Ribbed metal for increased stability and robustness.
- External Swivel Housing - Quickly access swivel seal for faster repairs.
- Ball Bearing Swivel - Swivel designed with internal ball bearings reduces friction and ensures smooth operation.
- Large Hose Capacity with Small Profile - Compact design accommodates up to a 50 foot (15 meter) hose to meet a wide variety of application requirements.
- Frame Type: Dual Pedestal
- Hose Inside Diameter (in): 3/8
- Hose Inside Diameter (mm): 9.525
- Hose Length (ft): 50
- Hose Length (m): 15
- Hose Reel Type: Reel with Hose
- Includes Hose: Yes
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.525
- Inlet Thread Gender: Male
- Inlet Thread Type: NPT
- Maximum Temperature ( degree C): 100
- Maximum Temperature ( degree F): 212
- Maximum Working Pressure (psi): 4060
- Minimum Temperature ( degree C): -40
- Minimum Temperature ( degree F): -40
- Mount Location: Truck Mount, Bench Mount
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
- Outlet Thread Gender: Male
- Outlet Thread Type: NPT
- Overall Height (in): 19
- Overall Height (mm): 483
- Overall Length (in): 17.5
- Overall Length (mm): 445
- Overall Width (in): 9.4
- Overall Width (mm): 239
- Recommended Environment: Indoor
- Recommended Fluid Type: Grease
