GG 258694
LDP5 VALVE, METERED, FLEX EXT

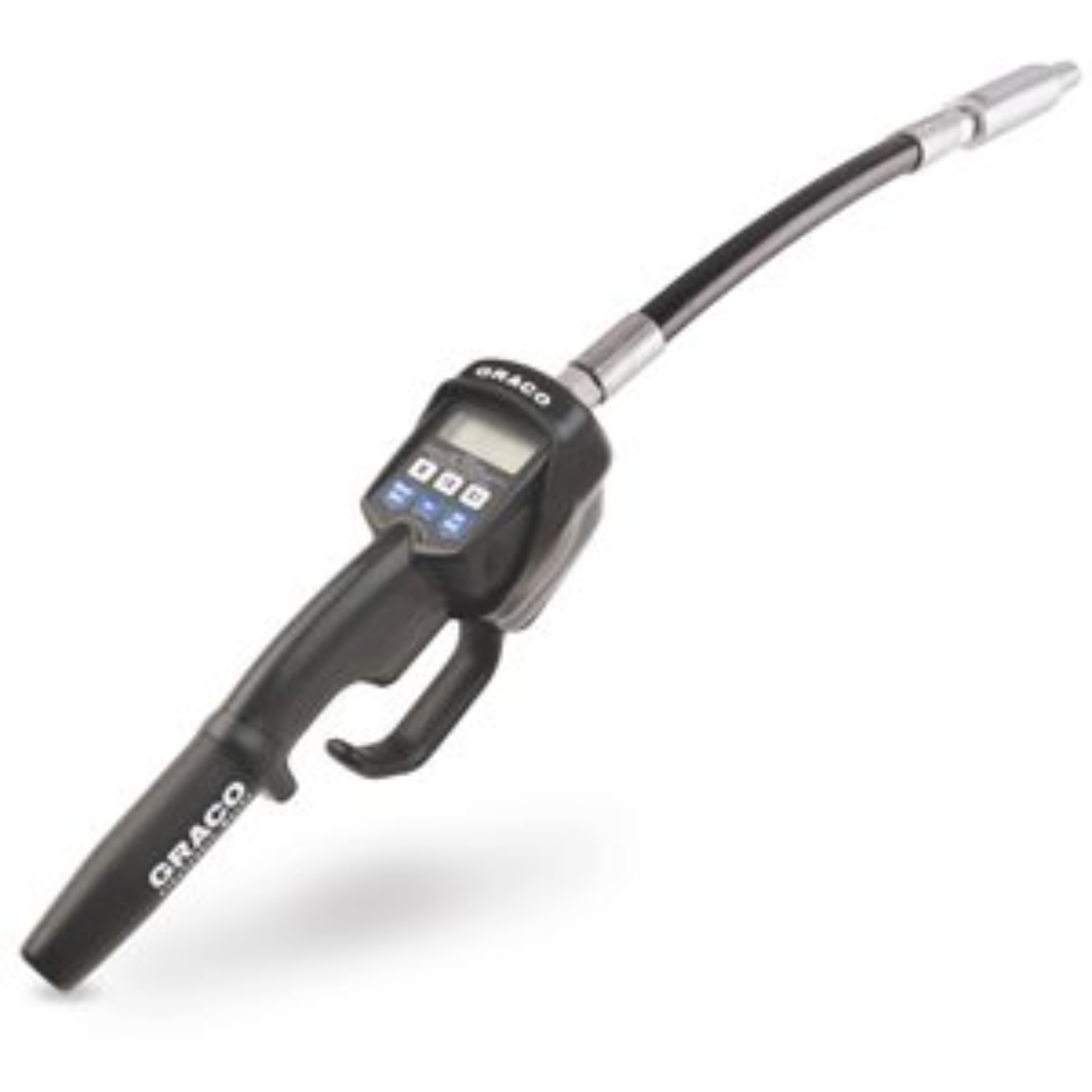

Graco 258694 LDP5 Electronic Preset Meter - Flexible Extension - 1/2 in. (13 mm) Inlet - Trigger Guard and Swivel Cover Included - NPT
Graco&prime, s LDP5 meters are perfect for lower-volume service application in small service shops, fast lube centers and automotive dealerships. These meters are capable of metering petroleum, synthetic based oil and anti-freeze up to 5 gpm (19 lpm).
Application: Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, Service shops, and In-plant.
- Easy to read LCD screen keeps dispenses precise.
- Inlet 1/2 in. NPT with swivel.
- Rugged meter body is impact resistant for long life.
- Preset meter automatically shuts-off flow when preset quantity has been dispensed.
- 5 year warranty. See manufacturers website for details.
- Compatible Material: Oil, Antifreeze
- Fluid Inlet Thread Gender: Female
- Fluid Outlet Thread Gender: Female
- Includes: Nozzle, Extension, Trigger Guard, Swivel Cover
- Inlet Size (cm): 1.27
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Maximum Operating Temperature (°C): 49
- Maximum Operating Temperature (°F): 120
- Maximum Storage Temperature (°C): 49
- Maximum Storage Temperature (°F): 120
- Maximum Working Pressure (bar): 69
- Maximum Working Pressure (kPa): 6900
- Maximum Working Pressure (MPa): 6.9
- Maximum Working Pressure (psi): 1000
- Meter Accuracy (%): ±0.5
- Meter Technology: Oval Gear
- Metering Gun Weight (kg): 1.36
- Metering Gun Weight (lb): 3
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
- Outlet Thread Type: NPT
- Overall Height (cm): 8.3
- Overall Height (in): 3.25
- Overall Height (mm): 83
- Overall Length (cm): 28
- Overall Length (in): 11
- Overall Length (mm): 280
- Overall Width (cm): 8.3
- Overall Width (in): 3.25
- Overall Width (mm): 83
- Recommended Environment: Indoor
