GG 77X122
KIT, STDRUM, 24VDC, HF, 400#

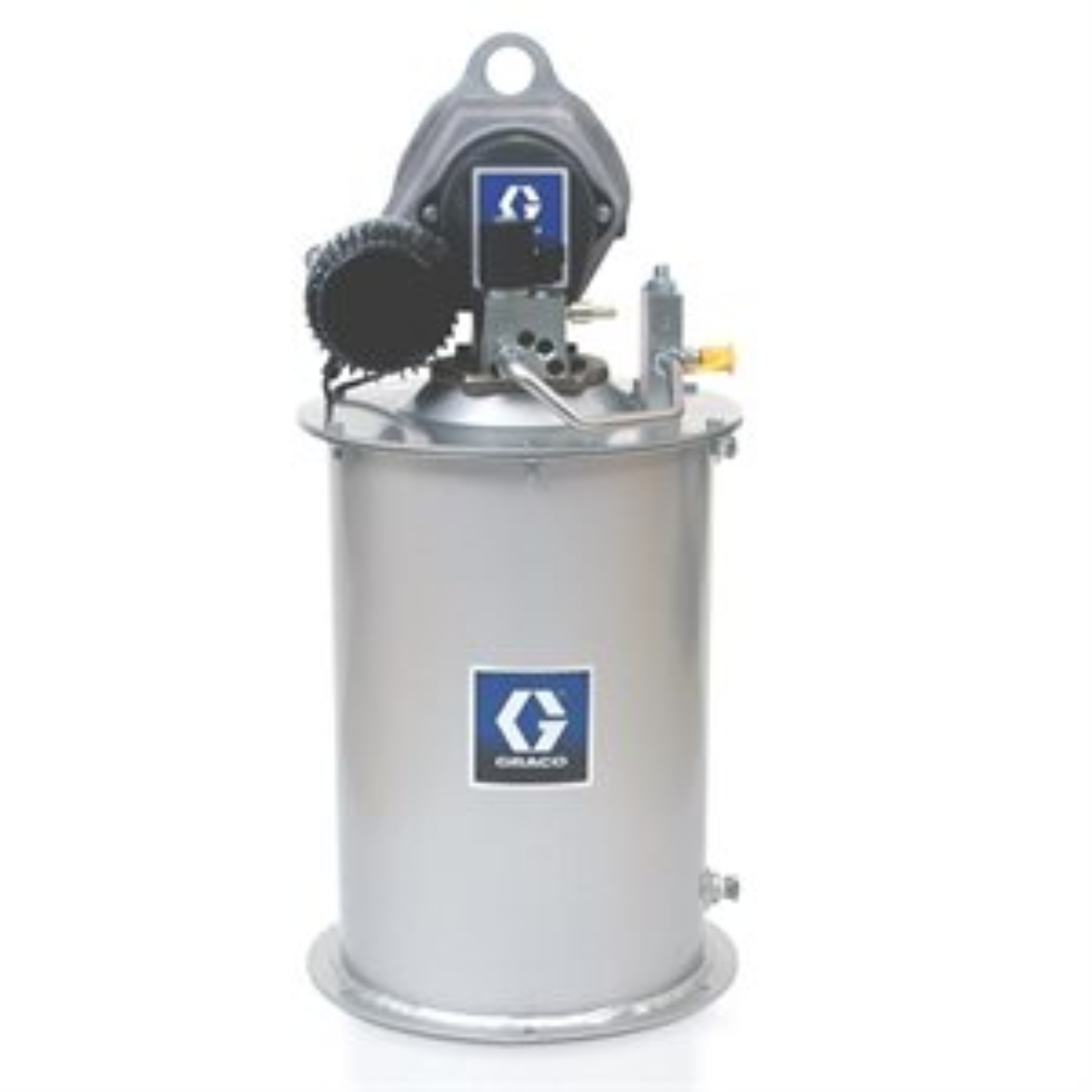

Graco 77X122 Standard Drum Kits - 24 VDC HF Pump and Cover for 400 lb (180 kg). Reservoir
The Dyna-Star HP and HF 24VDC Electric Lubrication Pumps complement our Dyna-Star 10:1 Hydraulic and Fire-Ball 300 50:1 Pneumatic pump offering. Now you have three power source options for automatic lubrication systems and transfer applications. Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.
Application: Electric pumps for heavy duty automatic lubrication and transfer systems.
- Auto Fill Shut Off - mechanical shut off of fill pump for clean and efficient refill
- Graco Advantage Drive - heavy duty gear drive-lubed for life
- Tube-in-tube vent and fill path - convert drum to injector system instantly
- Motor control - speed and AMP control
- Cold weather performance (-40 degree C)
- More efficient seal replacement
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Application: In-Plant Machinery, Off-Road Equipment
- Compatible Material: Grease
- Compatible Metering Device: Single Line Parallel
- Fluid Outlet Size (in): 0.375
- Fluid Outlet Size (mm): 9.5250
- Fluid Outlet Thread Type: NPT
- Includes: HF Pump 24 VDC, Cover for 120 lb (54 kg) reservoir
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum cST Grade (cST): 40
- Overall Height (cm): 112.5
- Overall Height (in): 44.3
- Overall Height (mm): 1125
- Overall Width (cm): 27.9
- Overall Width (in): 11
- Overall Width (mm): 279
- Power Connection Type: M23
