GG 25N408
KIT, PUMP, 4B, BELLOWS, 1500 CC

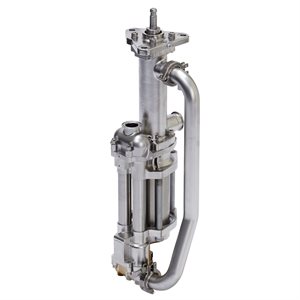

Graco 25N408 Sealed 4-Ball Lower, 1500cc, Chrome Cylinders, Standard Top Plate Rotation
Graco's Sealed 4-Ball Lower needs no routine maintenance and prevents unexpected downtime. The sealed fluid section eliminates the need for TSL (throat seal liquid). Designed to keep pumping in the event of a bellows failure, the lower allows you to schedule maintenance.
- Chrome coating on lower rods and cylinders works well for fine pigment paint and fluids with low lubrication, such as solvents and water.
- Connection kits contain tie rods and adapters - everything required to upgrade most legacy Graco circulation pumps to the latest technology. Refer to manual 311876 for complete information.
- Fluid Inlet Size (cm): 3.81
- Fluid Inlet Size (in): 1.5
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: Tri-Clamp
- Fluid Outlet Size (in): 1.5
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: Tri-Clamp
- Maximum Flow Rate (GPM): 7.9
- Maximum Operating Temperature ( degree F): 150
- Maximum Output (cm cu ): 30000
- Maximum Pump Speed (CPM): 20
- Maximum Working Pressure (psi): 460
