GG 25T862
KIT, AGITATOR, SUB ASSY

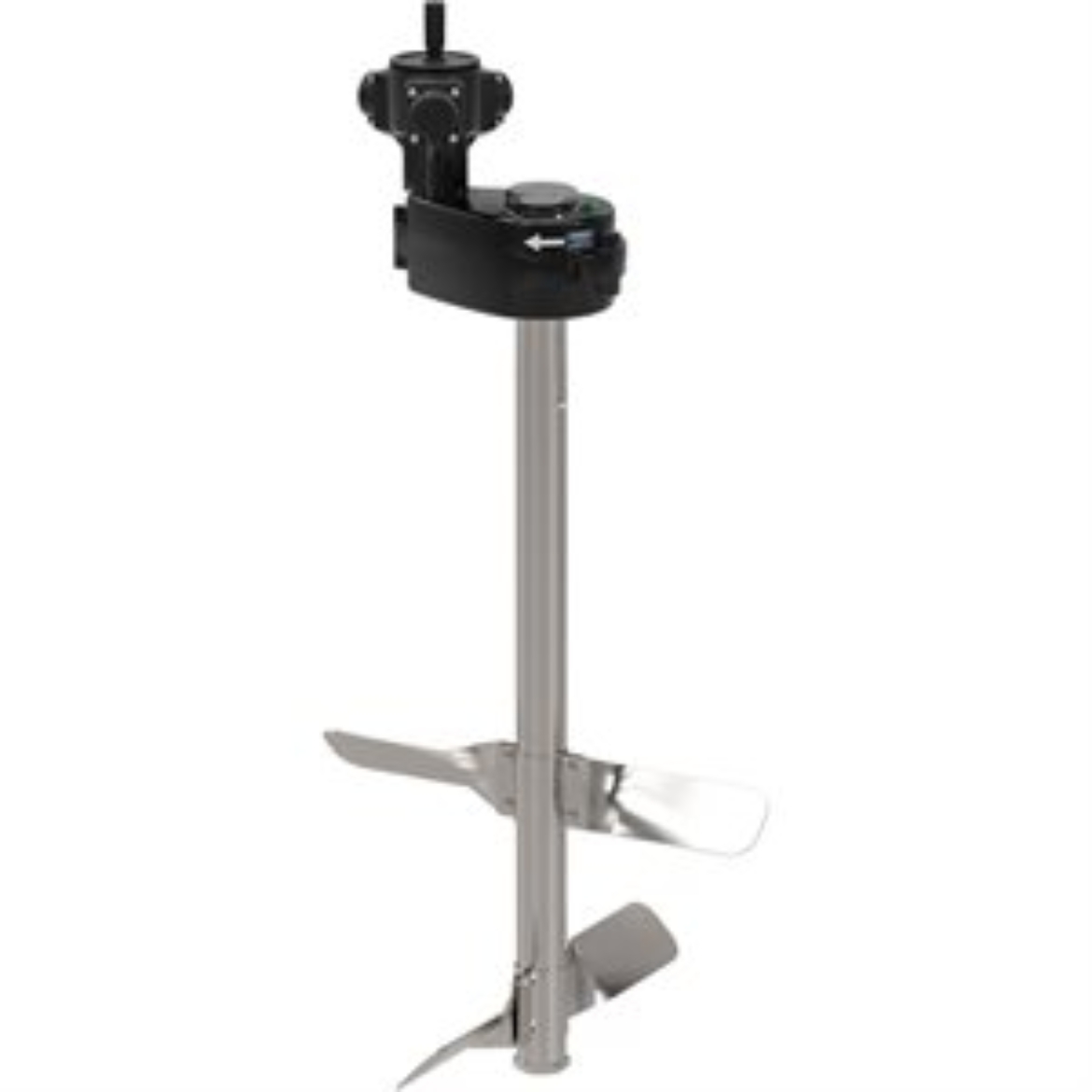

Graco 25T862 Radial Piston Air Motor Retrofit Kit for Back-Geared Agitators
By upgrading back-geared agitators with radial piston air motors, factory paint mix rooms can cut compressed air costs by up to 85 percent.
Application: For agitating high viscosity (500 to 3000 cP) material
- Installs quickly for immediate cost savings
- Needs no air line lubrication to keep running well
- Operates more quietly than comparable rotary vane agitator air motors
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- For Use With: 55 Gallon (208 Liter) Drum
- Maximum Air Inlet Pressure (bar): 5
- Maximum Air Inlet Pressure (kPa): 500
- Maximum Air Inlet Pressure (psi): 70
- Maximum Viscosity (cP): 3000
- Maximum Working Pressure (bar): 5
- Maximum Working Pressure (kPa): 500
- Maximum Working Pressure (psi): 70
- Motor Type: Pneumatic - Radial Piston
