GG 233055
KIT, ACCY, DRUM PKG

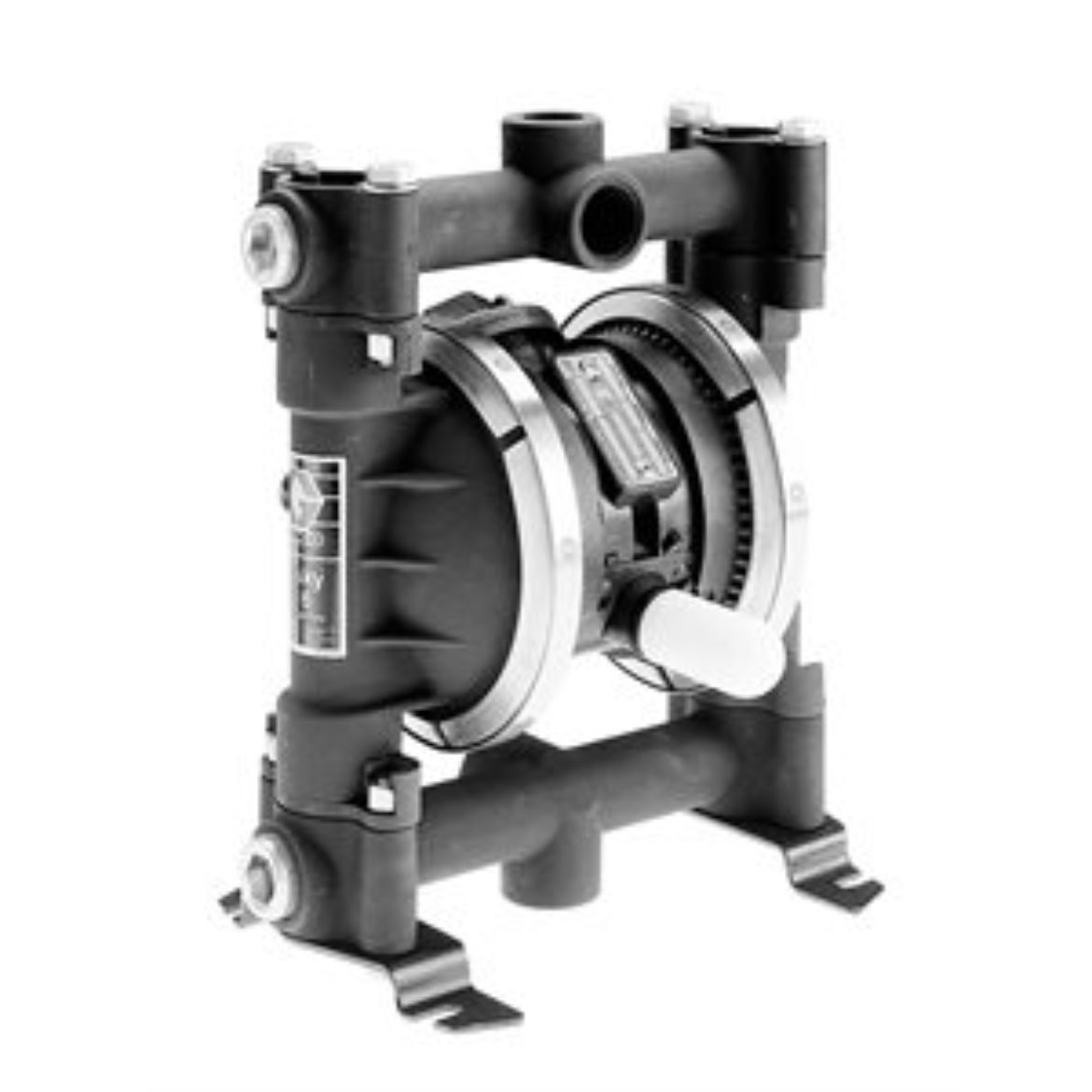

Graco 233055 Husky 716 55 gal (208 liter) AL Transfer Pump Package with AC Seats, Buna Balls, Buna Diaphragms & AL Tube
The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
- Center- and end-porting
- No mechanical seals which causes fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- 3/4 in (19.05 mm) center- and end-porting
- No seals to leak or fail
- Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
- Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Cutting Oil, Water - Wastewater Treatment, Water, Ink
- Fluid Inlet Size (cm): 1.9050
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Size (mm): 19.05
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 1.905
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Includes: Bung Base, Aluminum Tube
- Inlet Size (cm): 0.635
- Inlet Size (in): 1/4
- Inlet Size (mm): 6.35
- Inlet Thread Gender: Female
- Inlet Thread Type: NPT
- Manifold Configuration: Split Port
- Material: Aluminum
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 70
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 400
- Maximum Flow Rate (GPM): 14
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 70
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 70
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Operating Temperature (°F): 225
- Maximum Solid Size (cm): 0.2388
- Maximum Solid Size (in): 0.094
- Maximum Solid Size (mm): 2.3876
