GG 233052
KIT, ACCY, DRUM PKG

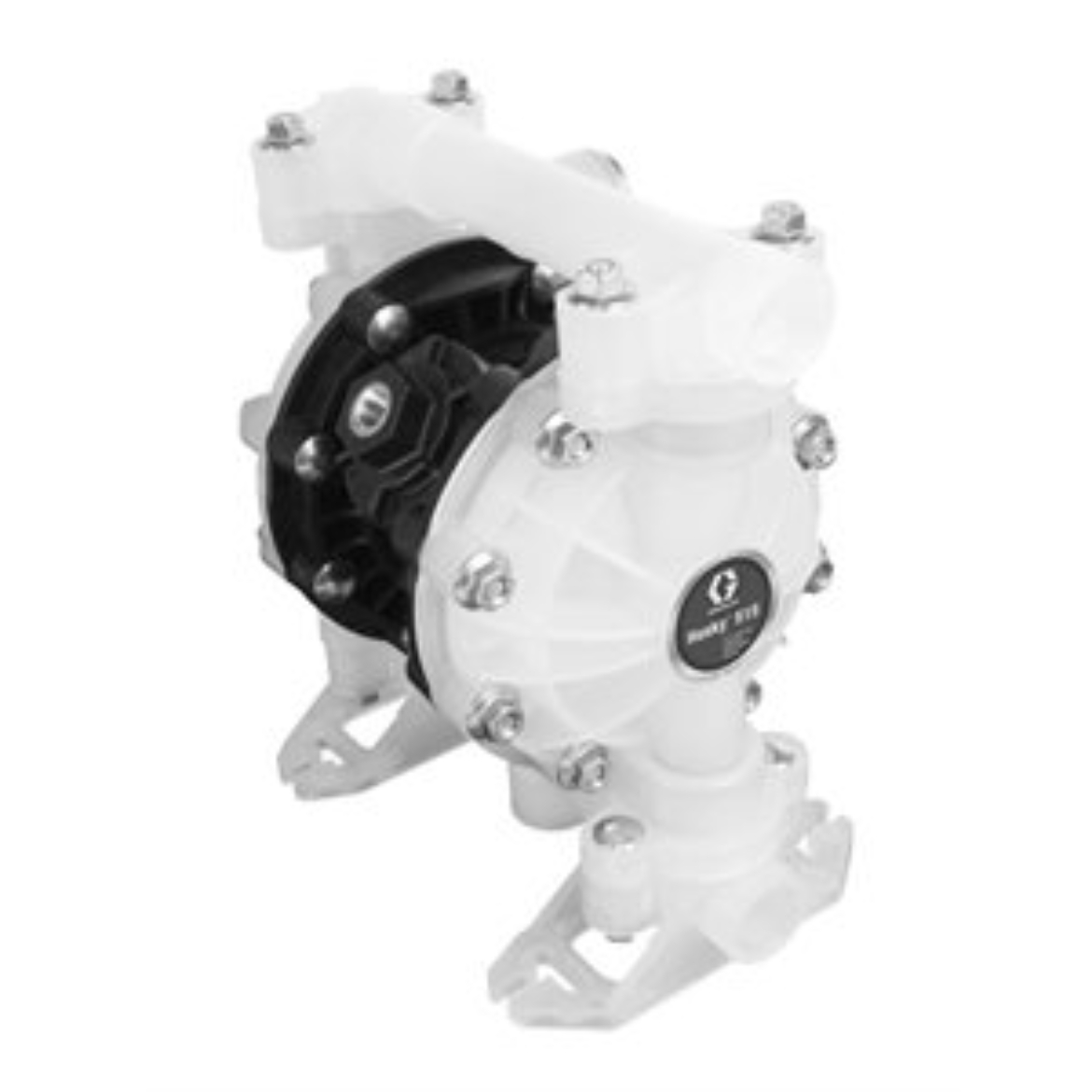

Graco 233052 Husky 515 55 gal (208 liter) AC Transfer Pump Package with AC Seats, PTFE Balls, PTFE Diaphragms & SS Tube
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
- Center and end porting options.
- No mechanical seals to cause fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
- Split manifold option to pump multiple fluids without mixing
- Delivery up to 15 gpm (56.7 lpm)
- Easy-to-service air valve and ball checks
- Reliable air valve for years of dependable performance
- Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
- Fluid Inlet Size (cm): 1.9050
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Size (mm): 19.05
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Includes: Bung Base, Stainless Steel Tube
- Inlet Size (cm): 0.635
- Inlet Size (in): 1/4
- Inlet Size (mm): 6.35
- Inlet Thread Gender: Female
- Inlet Thread Type: NPT
- Manifold Configuration: Split Port
- Material: Acetal
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 70
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 400
- Maximum Flow Rate (GPM): 12
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 70
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 70
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Operating Temperature (°F): 180
- Maximum Solid Size (cm): 0.2388
- Maximum Solid Size (in): 0.094
- Maximum Solid Size (mm): 2.3876
