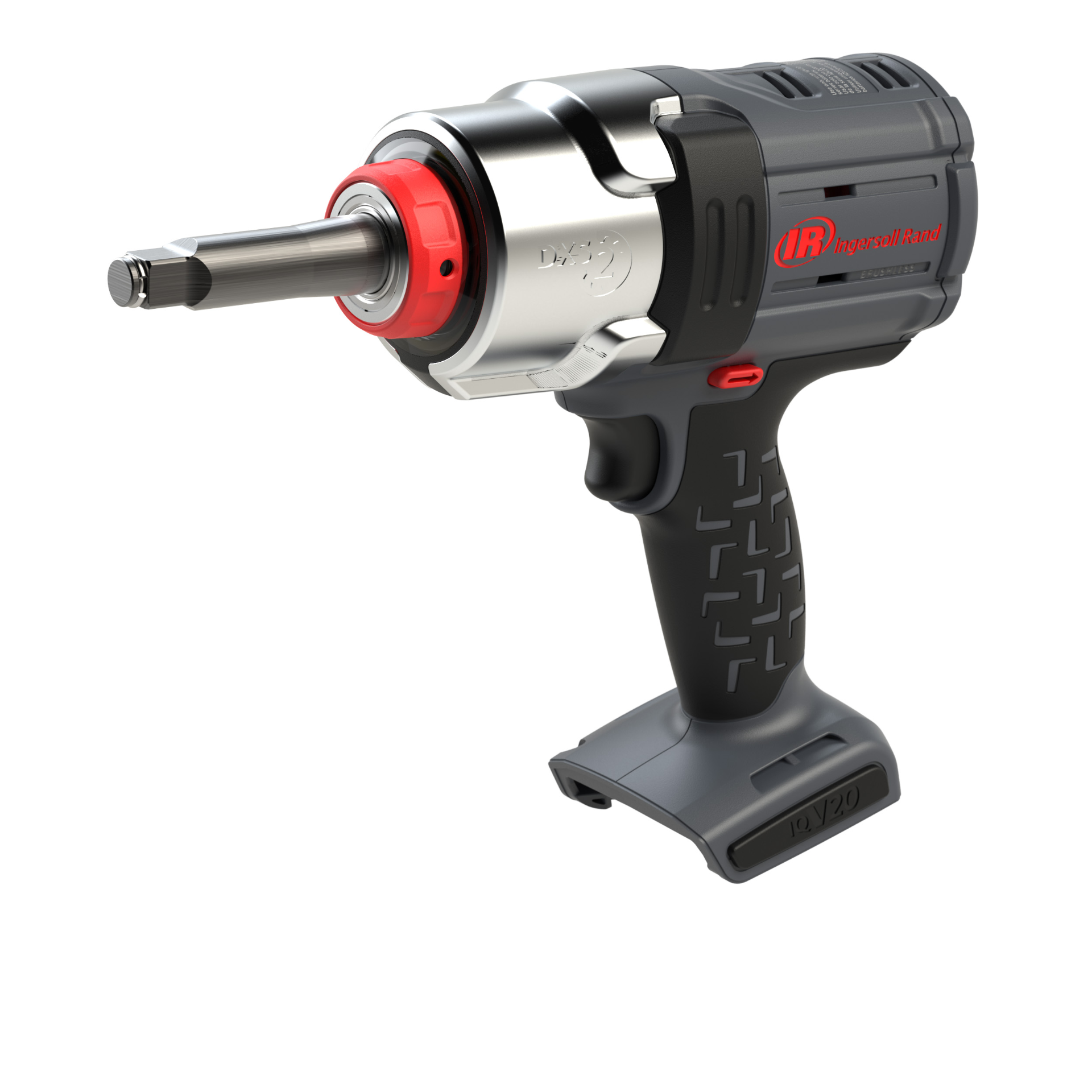

IR W7253-TL
DXS2 1/2" 20V Cordless Forward Torque Limited Impact Wrench, 2" Ext Anvil
The W7253-TL Forward Torque Limited Impact Wrench from Ingersoll Rand® is purpose-built for passenger tire service applications. Features one fixed forward tightening mode set at 76 ft-lbs to prevent accidental overtightening of tire lug nuts that can lead to costly damage to wheel rotors. The target torque is set to near specification for a wide variety of passenger tires and at a level that allows for a quick final tightening with a manually calibrated torque wrench. Compatible with all DXS® Drive Xchange System™ extended anvils and direct drive sockets.
Features And Benefits
- Power: Powerful brushless motor and ball and cam impact mechanism are finely tuned for best in class power-to-weight ratio. 1600 ft-lbs of nut-busting torque (when used with ¾” DXS® drive accessories) and 75 ft-lbs of forward tightening torque.
- Durability: Steel reinforced frame, chemical and impact resistant housing and IPX6-certified environmental rating for protection against water ingress.
- Productivity: Fast-swapping DXS® accessories let you perform multiple jobs with one tool, decreasing downtime and saving space in your toolkit.
- Control: Variable speed trigger with electronic brake stops the drive when trigger is released. Includes the IQV® Power Control System with 1 mode to auto-stop pre-tightening passenger tires. Finish lug installation with a calibrated torque wrench for perfect installations.
- Versatility: Maneuver more easily with a compact design that provides greater access to tight spaces. IQV20™ battery compatibility eliminates the need to purchase multiple battery types.
- Visibility: 360⁰ shadowless task light with 4 dimmable settings provides increased visibility and access.
- Ergonomics: Lightweight 6.1lb build and ergonomic overmold pistol grip for comfortable all-day use and less operator fatigue.
- Quality: Our best warranty ever – 5 yr. Limited Warranty stands behind our legendary quality and durability.
- Value: Increase your time in service and save replacement costs by simply switching out worn or broken drives to get the tool working like new.
- Includes: DXS2 1/2" 2" Extended Anvil (EA42H).
Includes: DXS2 1/2" 2" Extended Anvil (EA42H). Compatible with all DXS2 anvils and sockets sold as separate sets. Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: DXS Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include removing and fastening passenger tire wheel bolts, tire changing, cradle bolts, fleet truck maintenance, industrial and MRO.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: 2" Extended
Blows per Min: 2450
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
Hammer Case: Steel-lined Aluminum
Handle Material: Overmolded Grip
Head Width (in): 2.7
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 3/4
Max Free Speed (rpm): 1900
Max Torque (ft-lb): 1003
Max Torque (in-lb): 12037
Max Torque (nm): 1360
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 2
Nut-busting/Breakaway Torque (ft-lb): 1601
Nut-busting/Breakaway Torque (in-lb): 19206
Nut-busting/Breakaway Torque (nm): 2170
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 197.37
Product Length (in): 10.2
Product Width (in): 3.3
Product Height (in): 9.1
Product Height (in) (with Battery): 11.1
Product Weight (lb): 6.2
Product Weight (lb) (with Battery): 7.8
Recommended Forward Torque Range (ft-lb): 76
Recommende
