GG V25GT200DA
IQ TIP SEAL VALVE, 25, 1.7/T, 200, ADJ/RM, AMB

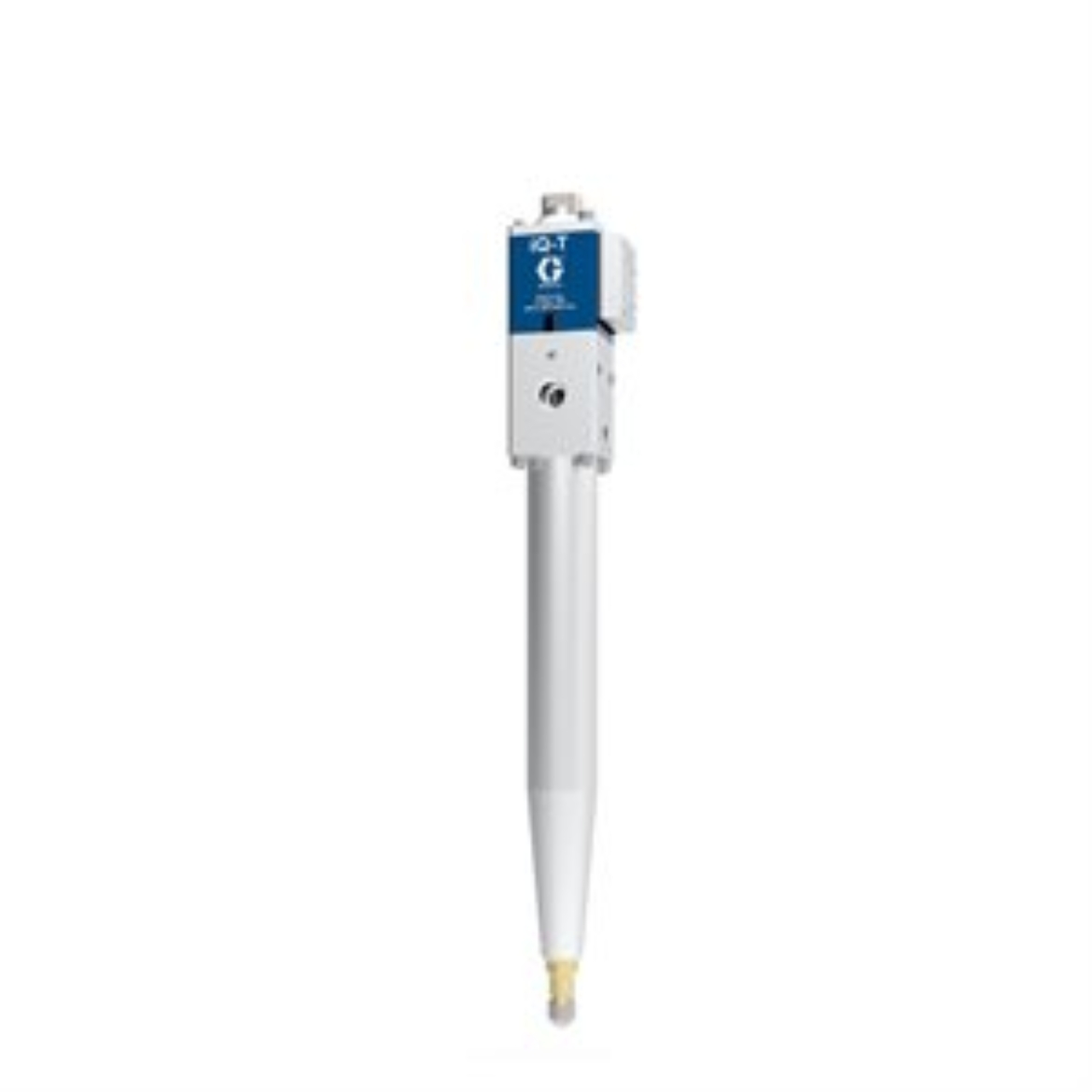

Graco V25GT200DA iQ Dispense Valve, Tip-Seal, Ambient, 0.067in (1.7mm) Tip, 7.87in (200mm) Nozzle, Remote Mount Solenoid
The iQ Tip Seal Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.
- Maximize dispense time while minimizing maintenance costs and effort
- Delivers precise, consistent dispensing with clean starts and stops
- Ideal for low to high viscosity materials
- Easy repeatable mounting for robotic and automated applications.
- 200mm nozzle is compatible with 200mm focal length vision systems
- Air Inlet Size (in): 1/8
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Ambient/Warm Melt/Hot Melt: Ambient
- Applicator Type: Tip-Seal
- Component Type: Single Component
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Gun Activation: Automatic
- Maximum Air Pressure (bar): 8.3
- Maximum Air Pressure (MPa): 0.83
- Maximum Air Pressure (psi): 120
- Maximum Fluid Pressure (bar): 276
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Pressure (bar): 276
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Mount Location: Remote Mount Solenoid
- Nozzle Size (in): 0.067
- Nozzle Size (mm): 1.7
- Outlet Block Length (in): 7.9
- Outlet Block Length (mm): 200
