GG V25AB000BA
IQ BALL SEAT VALVE, 25, NPT/B, 000, ADJ/SOL, AMB

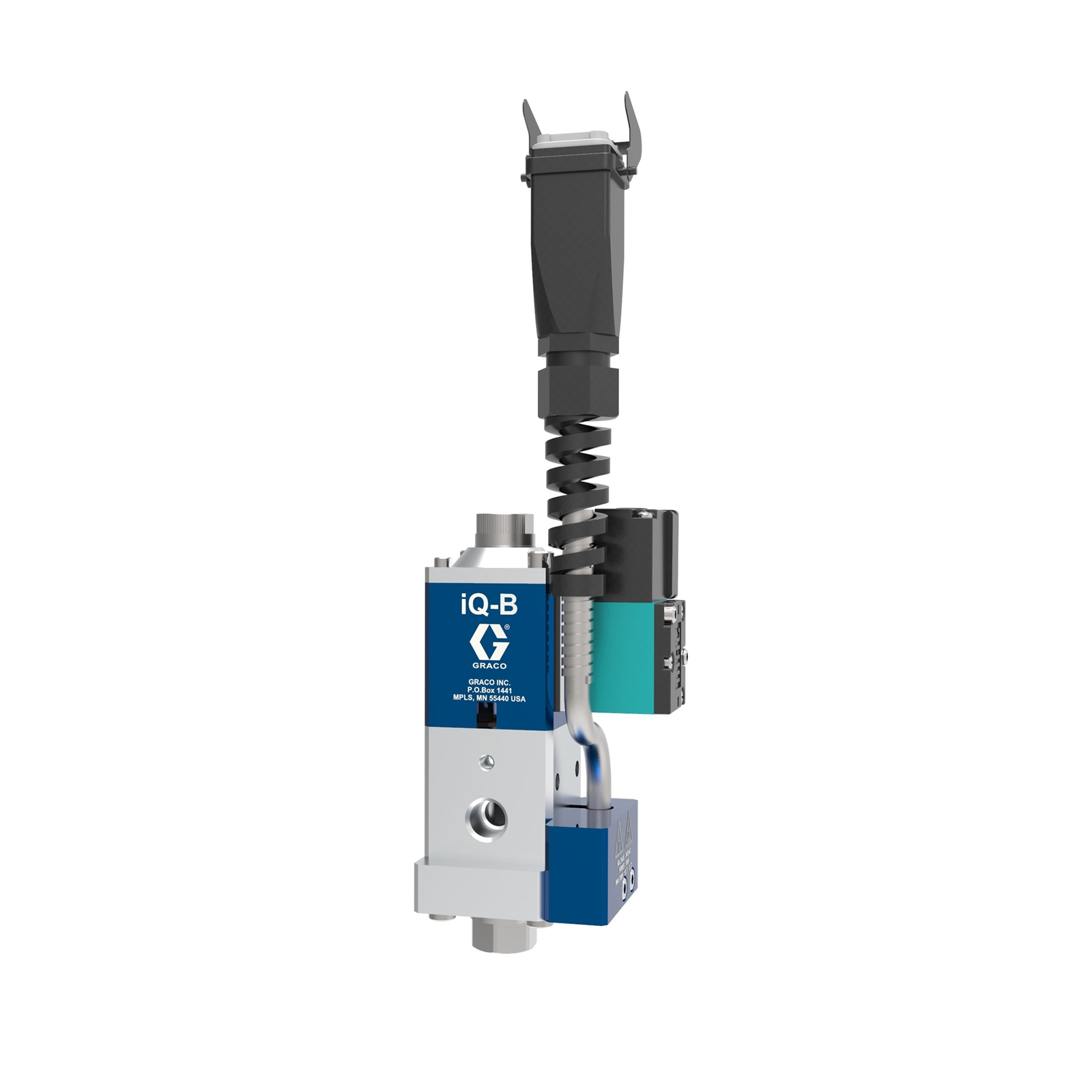

Graco V25AB000BA iQ Dispense Valve, Ball/Seat, Ambient, NPT Tip, 0in (000mm) Nozzle, Direct Mount Solenoid
The iQ Tip Seal Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.
- Maximize dispense time while minimizing maintenance costs and effort
- Delivers precise, consistent dispensing with clean starts and stops
- Ideal for low to high viscosity materials
- Easy repeatable mounting for robotic and automated applications.
- 200mm nozzle is compatible with 200mm focal length vision systems
- Air Inlet Size (in): 5/16
- Air Inlet Thread Type: Push-to-Connect
- Ambient/Warm Melt/Hot Melt: Ambient
- Applicator Type: Ball/Seat
- Component Type: Single Component
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Gun Activation: Automatic
- Maximum Air Pressure (bar): 8.3
- Maximum Air Pressure (MPa): 0.83
- Maximum Air Pressure (psi): 120
- Maximum Fluid Pressure (bar): 276
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Pressure (bar): 276
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Mount Location: Direct Mount Solenoid
- Nozzle Size (in): N/A
- Nozzle Size (mm): N/A
- Outlet Block Length (in): NA
- Outlet Block Length (mm): NA
