Instrumentation and Testing

GA 102D-254F

GG 102124

RR 76652-03

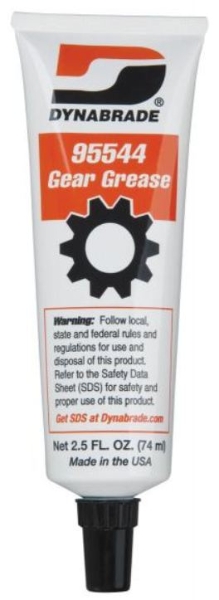

DY 95544

High film strength. excellent resistance to water, steam, etc.

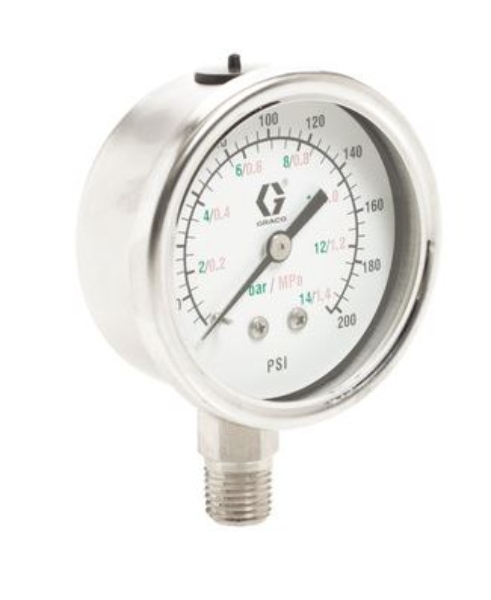

GG 112941

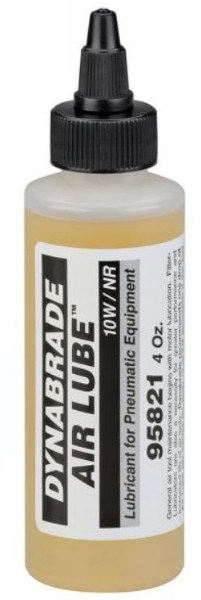

DY 95821

4 oz. (118 ml)

Absorbs up to 10% of its weight in water.

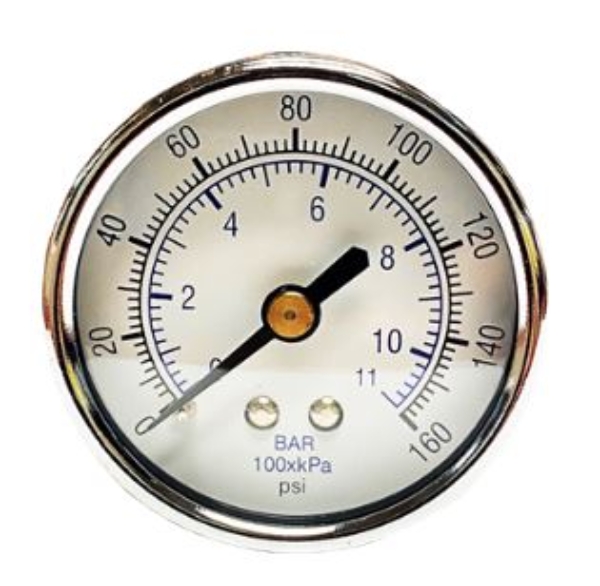

GA 102D-204D

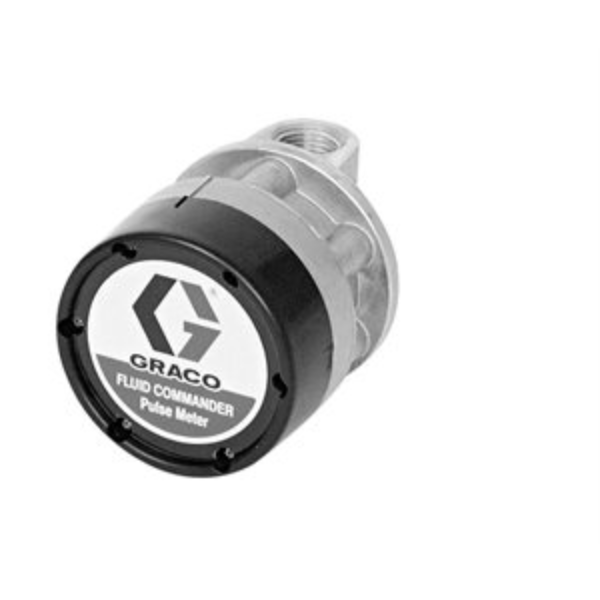

GG 238618

METER, ELECTRONIC, PULSE

Graco 238618 In-Line Meter with Pulse Output (Pints, Quarts, Gallons, Liters)

Accurately measure dispenses of petroleum- and synthetic-based oils (motor, gear and ATF.)

• Provide pulse signal output.
• Measures in pints, quarts, or gallons.

• Inlet Size (cm): 1.27
• Inlet Size (in): 0.5
• Inlet Size (mm): 12.7

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 12
• Maximum Flow Rate (L/min): 45.6

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500

GG 246340

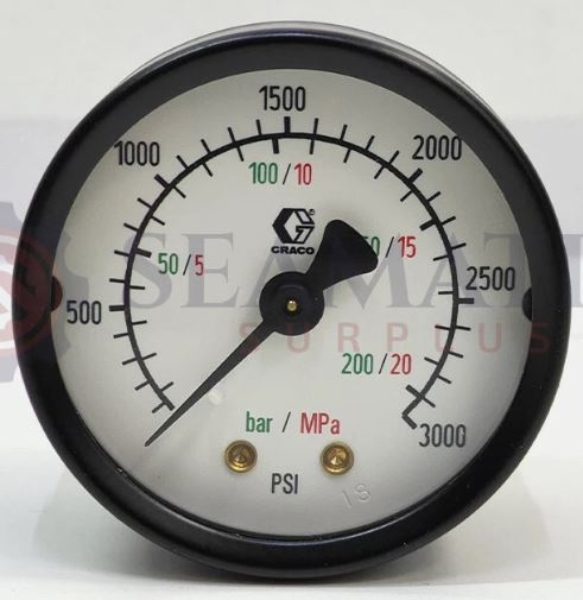

GG 102397

GG 118338

GG 15T571

GG 17F009

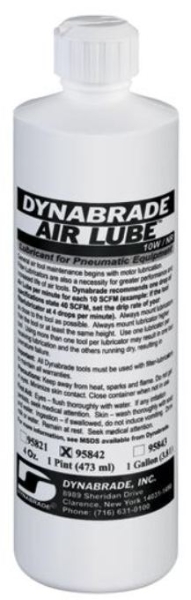

DY 95842

1 Pint (473 ml)

Formulated for pneumatic equipment.

Absorbs up to 10% of its weight in water.

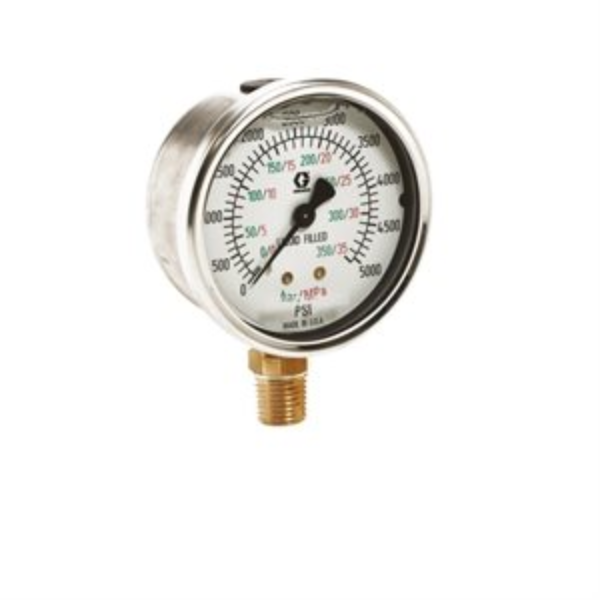

GG 105770

GAUGE, PRESS, FLUID

Graco 105770 Stainless Steel High Pressure Fluid Gauge, 0-1000 psi (0-68 bar) pressure range

• Stainless Steel High Pressure Fluid Gauges

  Corrosion Resistant

  2.5 in (63 mm) diameter dial

  1/4 in NPT(M) connection

  Bottom mount

  Shatterproof glass

  Liquid filled to reduce indicator pulsation




  • Dial Diameter (cm): 6
  • Dial Diameter (in): 2.5
  • Dial Diameter (mm): 64
  • Inlet Size (cm): 0.635
  • Inlet Size (in): 1/4
  • Inlet Size (mm): 6.35
  • Inlet Thread Gender: Male
  • Inlet Thread Type: NPT
  • Material: Stainless Steel
  • Maximum Working Pressure (bar): 69
  • Maximum Working Pressure (kPa): 6900
  • Maximum Working Pressure (MPa): 6.9
  • Maximum Working Pressure (psi): 1000

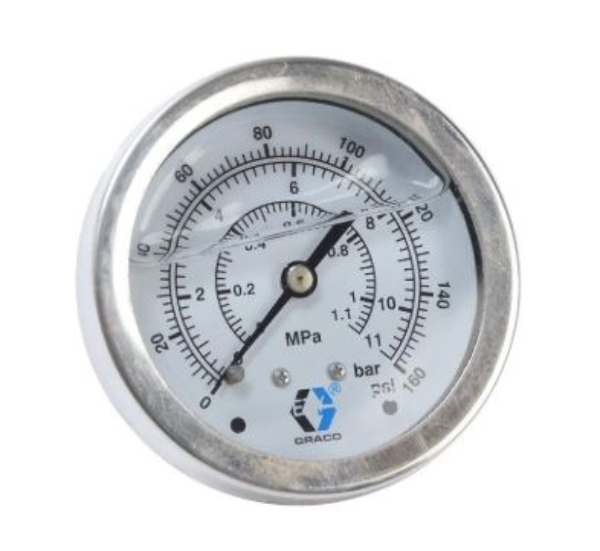

GG 124432

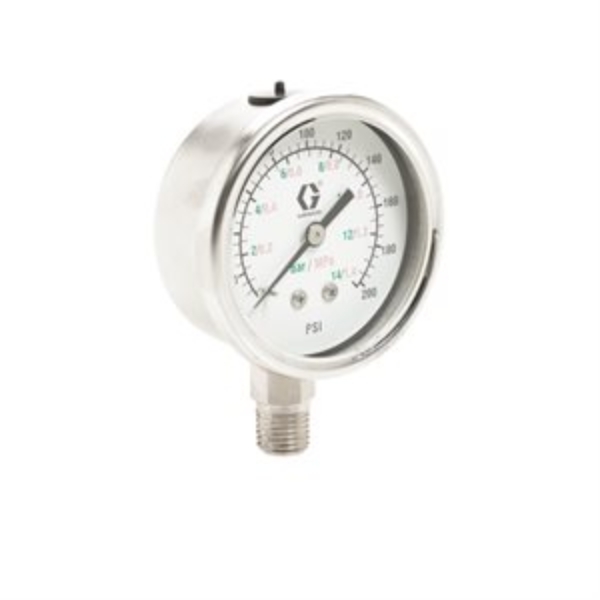

GG 187875

GAUGE, PRESSURE, FLUID

Graco 187875 Stainless Steel Low Pressure Fluid Gauge, 0-30 psi (0-2 bar) pressure range

• Stainless Steel Low Pressure Fluid Gauges

  Corrosion Resistant

  5 in (63 mm) diameter dial

  1/4 in NPT(M) connection

  Bottom mount

  Shatterproof glass




  • Dial Diameter (cm): 6
  • Dial Diameter (in): 2.5
  • Dial Diameter (mm): 64
  • Inlet Size (cm): 0.635
  • Inlet Size (in): 1/4
  • Inlet Size (mm): 6.35
  • Inlet Thread Gender: Male
  • Inlet Thread Type: NPT
  • Material: Stainless Steel
  • Maximum Working Pressure (bar): 2
  • Maximum Working Pressure (kPa): 200
  • Maximum Working Pressure (MPa): 0.2
  • Maximum Working Pressure (psi): 30
  • Minimum Operating Temperature ( degree C): 30

GG 20639-01

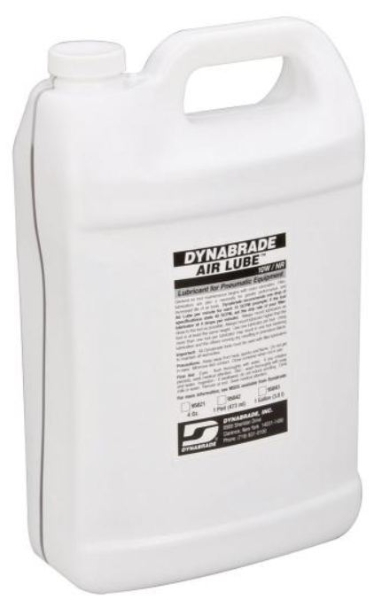

DY 95843

1 Gallon (3.8 Liters)

Formulated for pneumatic equipment.

Absorbs up to 10% of its weight in water.

GG 15U533

GG 16T872

GG 17C712

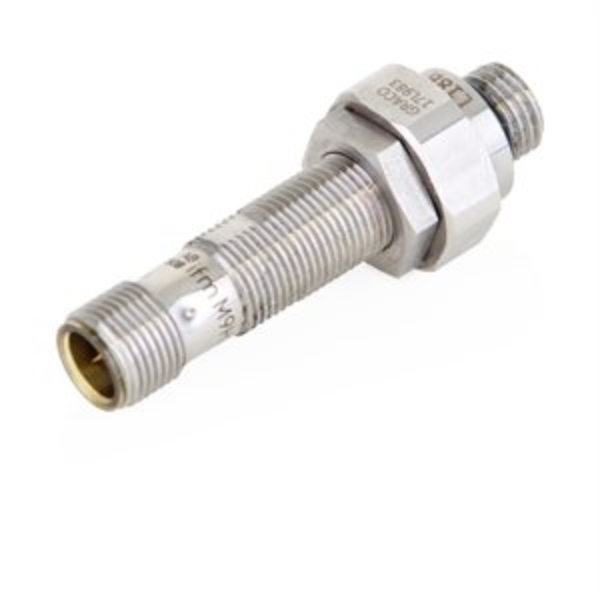

GG 17L983

SWITCH, PROXIMITY ADAPT, 7/16-20

Graco 17L983 Proximity Switch, 7/16-20, 7500 psi (517.1 bar)

Magnetically-operated sensing devices for sending system data to the controller or PLC.

• Available in 115 VAC or 12-32 VDC
• Available for all series progressive families to provide cycle rates up to 200 CPM
• Pressure ratings up to 10,000 psi (690 bar)
• Select models available with UL and CSA approvals

• Model: Trabon

• Application: Off-Road Equipment, On-Road Vehicles, In-Plant Machinery

• Compatible Material: Oil, Grease

• Material: PBT (Pocan), PC (Makrolon), FPM, Stainless Steel

• Maximum Voltage (V dc): 32

• Maximum Working Pressure (bar): 517.1
• Maximum Working Pressure (kPa): 51710
• Maximum Working Pressure (MPa): 51.7
• Maximum Working Pressure (psi): 7500

• Minimum Voltage (V dc): 9.6

• Power Connection Type: M12

PAN EYFR04A

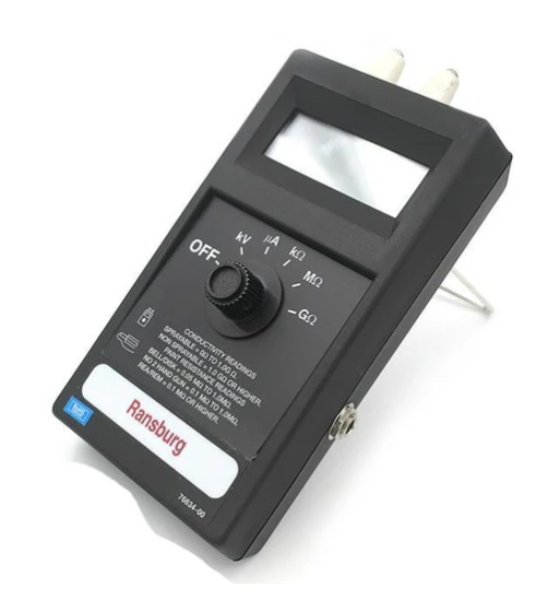

RR 76634-00
