INGERSOLL-RAND IR TOOL S12880

IR 2145-THK2

Hammer Mechanism Replacement Part for Ingersoll Rand 2145 and 2155 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 2145 and 2155 Series Impact Wrench

• Includes: (2) Hammer, Hammer Frame, (2) Hammer pins

• For Use With: 2145QIMAX-3
• For Use With: 2145QIMAX-3-AP
• For Use With: 2145QIMAX-6
• For Use With: 2145QIMAX-6-AP
• For Use With: 2145QIMAX-AP
• For Use With: 2145QIMAX-SP
• For Use With: 2155QIMAX

IR 2146-K75

Button Kit for Ingersoll Rand 2146 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 2146Q1MAX, 2146Q1MAX-3, 2146Q1MAX-6 and 2146Q2MAX Impact Wrenches

• Includes: Forward and Reverse Buttons

• For Use With: 2146Q1MAX
• For Use With: 2146Q1MAX-3
• For Use With: 2146Q1MAX-6
• For Use With: 2146Q2MAX

IR 2155-K425

Socket Retainer Kit for Ingersoll Rand W8000 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand W8000 Series Air Impact Wrenches.

• Includes: Socket Retainer Spring and O-Ring

• For Use With: W8171
• For Use With: W8171-K2
• For Use With: W8191
• For Use With: W8191-K2
• For Use With: W8571
• For Use With: W8571-K2
• For Use With: W8591
• For Use With: W8591-K2

IR 2145-D727

Hammer Case Assembly for Ingersoll Rand 2145, 2155 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 2145, 2155 Series Impact Wrench

• For Use With: 2145QIMAX-3
• For Use With: 2145QIMAX-6
• For Use With: 2155QIMAX

IR 2145-42-7

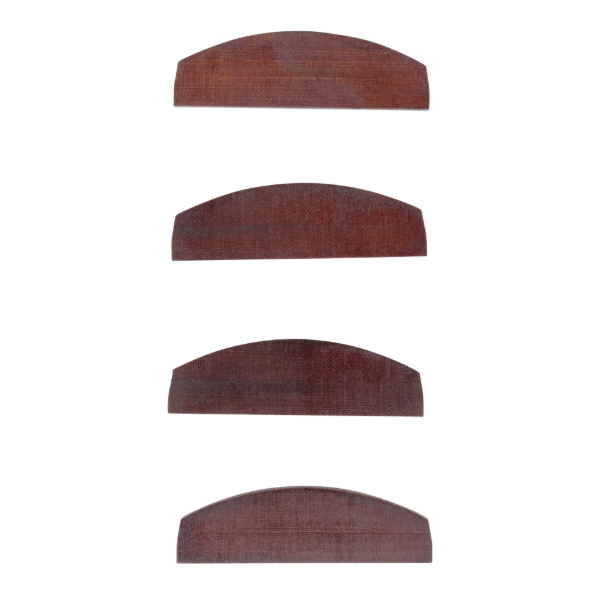

Vane Pack for Ingersoll Rand 2145 Series Impact Wrench, 7-Pack

Product Application and Uses:

For use with Ingersoll Rand 2145 Series Impact Wrench

• Includes: (7) vanes

• For Use With: 2145QIMAX-3
• For Use With: 2145QIMAX-6

IR 2145QIMAX-300

IR 2145-TK2

Tune-up Kit for Ingersoll Rand 2145 Series Impact Wrench

• For Use With: 2145QIMAX-AP
• For Use With: 2155QIMAX

IR 2146-42-6

IR 2145-36RD

Hammer Case Gasket for Ingersoll Rand 2145 Series Impact Wrench

• For Use With: 2145QIMAX-3
• For Use With: 2145QIMAX-6

IR 2145QIMAX

IR 2145-53

Rotor for Ingersoll Rand 2145 Series Impact Wrench

• For Use With: 2145QIMAX-3
• For Use With: 2145QIMAX-6

IR 2146-A11

End Plate for Ingersoll Rand 2146 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 2146Q1MAX, 2146Q1MAX-3, 2146Q1MAX-6 and 2146Q2MAX Impact Wrenches

• Includes: Front Endplate, Bearing

• For Use With: 2146Q1MAX
• For Use With: 2146Q1MAX-3
• For Use With: 2146Q1MAX-6
• For Use With: 2146Q2MAX

IR 2146Q1MAX-3

3/4" Air Impact Wrench, 3" Ext Anvil, Quiet, 2,000 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol

Description: The 2146MAX Series Impact Wrenches- including the 2146Q1MAX-3, is the most powerful 3/4" impact in its class. These tools have been engineered with an innovative pressure gauge that ensures optimized air flow and pressure. These quiet impact wrenches help you maximize productivity across a range of jobs and tackle anything that comes your way. And because you can avoid operating below and above the recommended 90 PSI air pressure, your tool will last longer and perform more reliably. Work more and spend less, the 2146MAX Series helps you do what you do best.

Features And Benefits:

• Cold-forged twin hammer impact mechanism and motor deliver 2,000 ft-lbs of Nut Busting Torque, durability, and efficiency
• Steel hammer case stands up to drops and everyday abuse
• Patented one-hand forward/reverse and feather-touch trigger provides maximum control
• Ingersoll Rand's Quiet Technology reduces the sound of the tool, sparing your ears without sacrificing a single ounce of power
• Pressure gauge improves productivity and prolongs product life
• A lightweight, balanced, air impact wrench that weighs just 8.8 lbs
• Extended reach 3" anvil provides better accessibility to bolts
• Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids
• Optimized for the vehicle repair industry, heavy trucks, tire lanes, fleet maintenance, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding and construction

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 36
• Air Consumption @ Load (l/min): 1090
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: 3" Extended
• Average Air Consumption (cfm): 14
• Average Air Consumption (l/min): 396

• Blows per Min: 1075

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 88.8 / 99.8

• Hammer Case: Steel
• Handle Material: Composite
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 94.3 /105.3

• Max Bolt Diameter (in): 1
• Max Free Speed (rpm): 5500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1453
• Max Torque (in-lb): 17436
• Max Torque (nm): 1970
• Min Hose Size (in): 1/2
• Motor: Reverse Bias

• Number of Power Settings: 4
• Nut-busting/Breakaway Torque (ft-lb): 2000
• Nut-busting/Breakaway Torque (in-lb): 24003
• Nut-busting/Breakaway Torque (nm): 2712
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 227.3
• Product Length (in): 11.5

• Product Width (in): 3.5
• Product Height (in): 8.2
• Product Weight (lb): 8.8
• Quiet Tool: Yes
• Recommended Forward Torque Range (ft-lb): 200-900
• Recommended Forward Torque Range (in-lb): 2390-10798
• Recommended Forward Torque Range (n

IR 2146-K3

Cylinder for Ingersoll Rand 2146 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 2146Q1MAX, 2146Q1MAX-3, 2146Q1MAX-6 and 2146Q2MAX Impact Wrenches

• For Use With: 2146Q1MAX
• For Use With: 2146Q1MAX-3
• For Use With: 2146Q1MAX-6
• For Use With: 2146Q2MAX

IR 2145-D565

Inlet Bushing Assembly for Ingersoll Rand 2145 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 2145 Series Impact Wrench

• Includes: Inlet bushing, Inlet Pre-screen, Inlet Clip, Inlet Parts Kit

• For Use With: 2145QIMAX-3
• For Use With: 2145QIMAX-6

IR 2145-D93BK

Trigger Assembly for Ingersoll Rand 2145, 2155 Series Impact Wrench

Product Application and Uses:

For use with 2145 and 2155 Series Impact Wrench

• Includes: Trigger, O-ring

• For Use With: 2145QIMAX-3
• For Use With: 2145QIMAX-6
• For Use With: 2155QIMAX

IR 2146Q1MAX-6

3/4" Air Impact Wrench, 6" Ext Anvil, Quiet, 2,000 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol

Description: The 2146MAX Series Impact Wrenches- including the 2146Q1MAX-6, is the most powerful 3/4" impact in its class. These tools have been engineered with an innovative pressure gauge that ensures optimized air flow and pressure. These quiet impact wrenches help you maximize productivity across a range of jobs and tackle anything that comes your way. And because you can avoid operating below and above the recommended 90 PSI air pressure, your tool will last longer and perform more reliably. Work more and spend less, the 2146MAX Series helps you do what you do best.

Features And Benefits:

• Cold-forged twin hammer impact mechanism and motor deliver 2,000 ft-lbs of Nut Busting Torque, durability, and efficiency
• Steel hammer case stands up to drops and everyday abuse
• Patented one-hand forward/reverse and feather-touch trigger provides maximum control
• Ingersoll Rand's Quiet Technology reduces the sound of the tool, sparing your ears without sacrificing a single ounce of power
• Pressure gauge improves productivity and prolongs product life
• A lightweight, balanced, air impact wrench that weighs just 10.1 lbs
• Long reach 6" extended anvil for improved access to bolts
• Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids
• Optimized for the vehicle repair industry, heavy trucks, tire lanes, fleet maintenance, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding and construction

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 36
• Air Consumption @ Load (l/min): 1090
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: 6" Extended
• Average Air Consumption (cfm): 14
• Average Air Consumption (l/min): 396

• Blows per Min: 1075

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 88.8 / 99.8

• Hammer Case: Steel
• Handle Material: Composite
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 94.3 /105.3

• Max Bolt Diameter (in): 1
• Max Free Speed (rpm): 5500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1453
• Max Torque (in-lb): 17436
• Max Torque (nm): 1970
• Min Hose Size (in): 1/2
• Motor: Reverse Bias

• Number of Power Settings: 4
• Nut-busting/Breakaway Torque (ft-lb): 2000
• Nut-busting/Breakaway Torque (in-lb): 24003
• Nut-busting/Breakaway Torque (nm): 2712
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 198
• Product Length (in): 14.5

• Product Width (in): 3.5
• Product Height (in): 8.2
• Product Weight (lb): 10.1
• Quiet Tool: Yes
• Recommended Forward Torque Range (ft-lb): 200-900
• Recommended Forward Torque Range (in-lb): 2390-10798
• Recommended Forward Torque Range (nm): <

IR 2161-11

IR 2161-12

IR 2161-207

Motor Clamp Washer Service Part for Ingersoll Rand Power Tools

IR 2161-36

Hammer Case Gasket for Ingersoll Rand 2161, 2171 Series Impact Wrench

• For Use With: 2161P
• For Use With: 2161XP
• For Use With: 2161XP-6
• For Use With: 2171P
• For Use With: 2171XP

IR 2161-366

Vertical Hanger Kit Service Part for Ingersoll Rand Impact Wrench

• For Use With: 2161P
• For Use With: 2925P1TI

IR 2161-638

IR 2161-739

Backcap Gasket for Ingersoll Rand 2161 and 2171 Series Impact Wrench

• For Use With: 2161P
• For Use With: 2161XP
• For Use With: 2161XP-6
• For Use With: 2171P
• For Use With: 2171XP

IR 2161-A465A

IR 2161-A93

IR 2161-TK2

Tune-up Kit for Ingersoll Rand 2161 Series Impact Wrench

• For Use With: 2161P
• For Use With: 2161XP
• For Use With: 2161XP-6
• For Use With: 2171P
• For Use With: 2171XP

IR 2161XP-626

3/4" Drive Anvil for 2161XP Air Impact Wrench

• For Use With: 2161XP

IR 216B-53

IR 216B

3/8" Air Impact Wrench, 200 ft-lb Torque, Friction Ring Retainer, Inline

Description: Full of power with an easy to access design, the 216B Straight Impact Wrench ensures every job is a job well done.

Features And Benefits:

• Durable: Combining an aluminum hammer case with metal housing ensures this wrench is both durable and lightweight.
• Power: The ball and cam mechanism delivers a high output of power without ever risking your tool stalling out.
• Access: Thanks to its straight grip and overall design, this impact wrench is great for use in hard-to-reach spaces.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Butteryfly Trigger
• Air Consumption @ Load (cfm): 19
• Air Consumption @ Load (l/min): 538
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 3
• Average Air Consumption (l/min): 85

• Blows per Min: 1600

• Color: Silver
• Configuration/Handle Type: Straight
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: General Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 94.8 / 105.8

• Hammer Case: Aluminum
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Pin Clutch
• Impacting Sound Pressure/Power Db(A): 90.0 / 101.0

• Max Bolt Diameter (in): 7/16
• Max Free Speed (rpm): 8500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 200
• Max Torque (in-lb): 2400
• Max Torque (nm): 271
• Min Hose Size (in): 3/8
• Motor: Non-Biased

• Power Source: Air Powered
• Product Length (in): 7.7

• Product Width (in): 2.3
• Product Height (in): 1.9
• Product Weight (lb): 2.8
• Recommended Forward Torque Range (ft-lb): 15-160
• Recommended Forward Torque Range (in-lb): 177-1921
• Recommended Forward Torque Range (nm): 20-217
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.2
• Side to Center Distance (mm): 30

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 5.2
• Warranty: 1-year

• Accessories: SK3H8N
• Accessories: SK3M8N

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 216B-A626

IR 216B-A11

IR 216B-704

IR 216B-630

IR 216B-721

IR 216B-A626

Anvil Assembly Replacement Part For Ingersoll Rand 216B Series Air Impact Wrench

• For Use With: 216B

IR 216B-A165

IR 2175-K48

IR 2190-A92

IR 216B-728

IR 2175-283

IR 2190-SRK1

IR 2190-K303

IR 2190-TK1

Tune-up Kit for Ingersoll Rand 2190 Series Impact Wrench

• Includes: (1) Vane pack, (1) Spring, (1) Front Rotor Bearing, (1) Rear Rotor Bearing, (2) Gasket, (2) O-Ring, (2) Snap Ring, (1) Spring pack

IR 22040679

IR 2171P

1" Air Impact Wrench, 1250 ft-lb Torque, Pin Retainer, Pistol

Description: The metal housing and steel hammer case of the 2171 Series Impact Wrench makes this one of the toughest tools on the market. You'll also benefit from the twin hammer impact mechanism, which provides a more even impact with every blow and makes it less sensitive to changes in air pressure.

Features And Benefits:

• Durability: This heavy-duty impact wrench is tough enough to handle harsh environments and repeated drops.
• Versatility: The 2171 Series is an ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.
• Increased Safety: The square pin drive of the 2171 Series provides the strongest connection to the socket to increase safety, especially when doing overhead work.

Product Application and Uses:

Ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.

• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 46
• Air Consumption @ Load (l/min): 1303
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 55
• Average Air Consumption (l/min): 1558

• Blows per Min: 1025

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 97.7 / 108.7

• Hammer Case: Steel
• Handle Material: Composite
• Housing Material: Aluminum core with composite sleeve
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 95.3 / 106.3

• Max Bolt Diameter (in): 1
• Max Free Speed (rpm): 6000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1250
• Max Torque (in-lb): 15002
• Max Torque (nm): 1695
• Min Hose Size (in): 1/2
• Motor: Reverse Bias

• Number of Power Settings: 3
• Power Source: Air Powered
• Product Length (in): 8.5

• Product Width (in): 3.5
• Product Height (in): 9.5
• Product Weight (lb): 12.32
• Recommended Forward Torque Range (ft-lb): 300-1000
• Recommended Forward Torque Range (in-lb): 3602-12002
• Recommended Forward Torque Range (nm): 407-1356
• Retainer Type: Pin Detent

• Side to Center Distance (in): 1.75
• Side to Center Distance (mm): 44

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 11.5
• Warranty: 1-year

• Lubrication: 50P
• Parts: 2141-THK1
• Parts: 2161-36

• Parts: 2161-739
• Parts: 2161-TK2

IR 2236QTiMAX-2

Description: Ingersoll Rand has delivered the gold standard in pneumatic tools for almost 100 years - and the performance, durability, and power of the 2236 1/2 pneumatic impact is no different. Our patented Drive Xchange System lets you swap out anvils without torque-zapping adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians. Powerful Versatility: Say goodbye to that drawer full of adapters for good. The Ingersoll Rand 2236 Pneumatic 1/2 inch impact wrench has an interchangeable anvil system that lets you tailor your tool to whatever job is at hand - without losing a single ft-lb of power. Innovation: Ingersoll Rands patented Drive Xchange System helps you get more versatility, torque, and control out of your impact wrench. Torque: The 2236 series operates with 1,500 ft-lbs of breakaway torque.

Features And Benefits:

• Patented Drive Xchange System: Helps you get more versatility, torque, and control out of your impact wrench. With 3/8," 1/2in, and 3/4" drive options and 5 different anvil lengths ranging from 2 to 10 inches, you can do more work with less equipment.
• Powerful Versatility: 1,500 ft.-lbs. of breakaway torque from a unique patented motor design.
• Quiet: 4 decibels quieter running from a patented motor design.
• Patented Direct Greasing System: Greasing your tool has never been easier. Directly grease the tools hammer for more efficient operation and increased run time.
• Reliable Performance: Stay working, and at peak power by quickly replacing worn or broken anvils.
• Ergonomic: Smaller, lighter and better balanced design under 4.5 lbs. and 7.4" overall length.
• Includes 1/2 square drive 2" extended anvil (EA42H)

Product Application and Uses:

Vehicle Repair

• Includes: DXS2 1/2in Square Drive 2" Extended Anvil (EA42H). Compatible with all DXS2 anvils and sockets. 3/8 and 3/4 drive size options as well as extended lengths sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 36
• Air Consumption @ Load (l/min): 1090
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: 2" Extended
• Average Air Consumption (cfm): 9
• Average Air Consumption (l/min): 255

IR 2235TIMAX-D727

IR 2235-638

Hammer Case Screw for Ingersoll Rand 2235 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 2235 Series Impact Wrench

• Includes: (4) Hammercase Screws

• For Use With: 2235QPTIMAX
• For Use With: 2235TIMAX-2
• For Use With: 2235QTIMAX
• For Use With: 2235QTIMAX-G
• For Use With: 2235TIMAX-G
• For Use With: 2235TIMAX
• For Use With: 2235QTIMAX-2
• For Use With: 2235TIMAX-R
• For Use With: 2235PTIMAX

IR 2235-36RD

Hammer Case Gasket for Ingersoll Rand 2235 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 2235 Series Impact Wrench

• For Use With: 2235QPTIMAX
• For Use With: 2235TIMAX-2
• For Use With: 2235QTIMAX
• For Use With: 2235QTIMAX-G
• For Use With: 2235TIMAX-G
• For Use With: 2235TIMAX
• For Use With: 2235QTIMAX-2
• For Use With: 2235TIMAX-R
• For Use With: 2235PTIMAX

IR 2235-11

End Plate for Ingersoll Rand 2235 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 2235 Series Impact Wrench

• For Use With: 2235QPTIMAX
• For Use With: 2235TIMAX-2
• For Use With: 2235QTIMAX
• For Use With: 2235QTIMAX-G
• For Use With: 2235TIMAX-G
• For Use With: 2235TIMAX
• For Use With: 2235QTIMAX-2
• For Use With: 2235TIMAX-R
• For Use With: 2235PTIMAX

IR 2235-A626

Anvil for Ingersoll Rand 2235 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand standard anvil hog ring 2235 series Impact wrenches.

• Anvil Length: Standard

• Drive Size (in): 1/2
• Drive Type: Square

• Retainer Type: Friction Ring

• For Use With: 2235TIMAX-O
• For Use With: 2235QTIMAX
• For Use With: 2235QTIMAX-G
• For Use With: 2235TIMAX-G
• For Use With: 2235TIMAX
• For Use With: 2235TIMAX-R

IR 2235-11X

Wear Plate for Ingersoll Rand 2235 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 2235 Series Impact Wrench

• For Use With: 2235QPTIMAX
• For Use With: 2235TIMAX-2
• For Use With: 2235QTIMAX
• For Use With: 2235QTIMAX-G
• For Use With: 2235TIMAX-G
• For Use With: 2235TIMAX
• For Use With: 2235QTIMAX-2
• For Use With: 2235TIMAX-R
• For Use With: 2235PTIMAX

IR 2235-42-7

Vane Pack for Ingersoll Rand 2235 Series Impact Wrench, Set of 7

Product Application and Uses:

For use with Ingersoll Rand 2235 Series Impact Wrench

• Includes: (7) Vanes

• For Use With: 2235QPTIMAX
• For Use With: 2235TIMAX-2
• For Use With: 2235QTIMAX
• For Use With: 2235QTIMAX-G
• For Use With: 2235TIMAX-G
• For Use With: 2235TIMAX
• For Use With: 2235QTIMAX-2
• For Use With: 2235TIMAX-R
• For Use With: 2235PTIMAX

IR 2235-THK1

Hammer Mechanism Kit for Ingersoll Rand 2235 Series Impact Wrench

Product Application and Uses:

Tool Boot for 2235 Series impact wrenches

• Includes: Hammer frame, Hammer (2), Hammer pin

• For Use With: 2235QPTIMAX
• For Use With: 2235TIMAX-2
• For Use With: 2235QTIMAX
• For Use With: 2235QTIMAX-G
• For Use With: 2235TIMAX-G
• For Use With: 2235TIMAX
• For Use With: 2235QTIMAX-2
• For Use With: 2235TIMAX-R
• For Use With: 2235PTIMAX

• Parts: 2235TIMAX-O

IR 2235MAX-A40

Housing for Ingersoll Rand 2235 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 2235 Series Impact Wrench

• For Use With: 2235TIMAX-2
• For Use With: 2235TIMAX
• For Use With: 2235PTIMAX

IR 2235-53

IR 2235-TK1

Tune-up Kit for Ingersoll Rand 2235 Series Impact Wrench

Product Application and Uses:

Tool Boot for 2235 Series impact wrenches

• For Use With: 2235QPTIMAX
• For Use With: 2235TIMAX-2
• For Use With: 2235QTIMAX
• For Use With: 2235QTIMAX-G
• For Use With: 2235TIMAX-G
• For Use With: 2235TIMAX
• For Use With: 2235QTIMAX-2
• For Use With: 2235TIMAX-R
• For Use With: 2235PTIMAX

• Parts: 2235TIMAX-O

IR 2236QTiMAX

Description: Ingersoll Rand has delivered the gold standard in pneumatic tools for almost 100 years - and the performance, durability, and power of the 2236 1/2 pneumatic impact is no different. Our patented Drive Xchange System lets you swap out anvils without torque-zapping adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians. Powerful Versatility: Say goodbye to that drawer full of adapters for good. The Ingersoll Rand 2236 Pneumatic 1/2 inch impact wrench has an interchangeable anvil system that lets you tailor your tool to whatever job is at hand - without losing a single ft-lb of power. Innovation: Ingersoll Rand's patented Drive Xchange System helps you get more versatility, torque, and control out of your impact wrench. Torque: The 2236 series operates with 1,500 ft-lbs of breakaway torque.

Features And Benefits:

• Patented Drive Xchange System: Helps you get more versatility, torque, and control out of your impact wrench. With 3/8,inch 1/2 inch , and 3/4 inch drive options and 5 different anvil lengths ranging from 2 to 10 inch, you can do more work with less equipment.
• Powerful Versatility: 1,500 ft.-lbs. of breakaway torque from a unique patented motor design.
• Quiet: 4 decibels quieter running from a patented motor design.
• Patented Direct Greasing System: Greasing your tool has never been easier. Directly grease the tool's hammer for more efficient operation and increased run time.
• Reliable Performance: Stay working, and at peak power by quickly replacing worn or broken anvils.
• Ergonomic: Smaller, lighter and better balanced design under 4.5 lbs. and 7.4 inch overall length.
• Includes 1/2 Square Drive Anvil (A41H)

Product Application and Uses:

Vehicle Repair

• Includes: DXS2 1/2 inch Square Drive Anvil (A41H). Compatible with all DXS2 anvils and sockets. 3/8 and 3/4 drive size options as well as extended lengths sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 36
• Air Consumption @ Load (l/min): 1090
• Air Inlet: 1/4 inch NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 9
• Average Air Consumption (l/min): 255

IR 2236QPTiMAX

Description: Ingersoll Rand has delivered the gold standard in pneumatic tools for almost 100 years - and the performance, durability, and power of the 2236 1/2 pneumatic impact is no different. Our patented Drive Xchange System - lets you swap out anvils without torque-zapping adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians. Powerful Versatility: Say goodbye to that drawer full of adapters for good. The Ingersoll Rand 2236 Pneumatic 1/2 inch impact wrench has an interchangeable anvil system that lets you tailor your tool to whatever job is at hand - without losing a single ft-lb of power. Innovation: Ingersoll Rand's patented Drive Xchange System helps you get more versatility, torque, and control out of your impact wrench. Torque: The 2236 series operates with 1,500 ft-lbs of breakaway torque.

Features And Benefits:

• Patented Drive Xchange System: Helps you get more versatility, torque, and control out of your impact wrench. With 3/8,inch 1/2 inch , and 3/4 inch drive options and 5 different anvil lengths ranging from 2 to 10 inch, you can do more work with less equipment.
• Powerful Versatility: 1,500 ft.-lbs. of breakaway torque from a unique patented motor design.
• Quiet: 4 decibels quieter running from a patented motor design.
• Patented Direct Greasing System: Greasing your tool has never been easier. Directly grease the tool's hammer for more efficient operation and increased run time.
• Reliable Performance: Stay working, and at peak power by quickly replacing worn or broken anvils.
• Ergonomic: Smaller, lighter and better balanced design under 4.5 lbs. and 7.4 inch overall length.
• Includes 1/2 Square Drive Pin Anvil (AP41H)

Product Application and Uses:

Industrial

• Includes: DXS2 1/2 inch Square Drive Pin Anvil (AP41H). Compatible with all DXS2 anvils and sockets. 3/8 and 3/4 drive size options as well as extended lengths sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 36
• Air Consumption @ Load (l/min): 1090
• Air Inlet: 1/4 inch NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 9
• Average Air Consumption (l/min): 255

IR 2235P-A726

Pin Anvil for Ingersoll Rand 2235P Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 2235PTIMAX and 2235QPTIMAX standard anvil pin retainer Impact wrenches.

• Anvil Length: Standard

• Drive Size (in): 1/2
• Drive Type: Square

• Retainer Type: Pin Detent

• For Use With: 2235QPTIMAX
• For Use With: 2235PTIMAX

IR 2235-97

Ball Bearing for Ingersoll Rand 2235 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 2235 Series Impact Wrench

• For Use With: 2235QPTIMAX
• For Use With: 2235TIMAX-2
• For Use With: 2235QTIMAX
• For Use With: 2235QTIMAX-G
• For Use With: 2235TIMAX-G
• For Use With: 2235TIMAX
• For Use With: 2235QTIMAX-2
• For Use With: 2235TIMAX-R
• For Use With: 2235PTIMAX

IR 2236QTIMAX-G

DXS2 1/2 inch Air Impact Wrench, Quiet, 1500 ft-lb Torque, Titanium Hammercase, Friction Ring Retainer, Green

Description: The Ingersoll Rand 2236QTiMAX Visibility Series, provides the power you know and trust in vibrant colors. Ingersoll Rand has delivered the gold standard in pneumatic tools for almost 100 years - and the performance, durability, and power of the 2236 1/2 inch pneumatic impact is no different. Our patented Drive Xchange System lets you swap out anvils without torque-zapping adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians. Powerful Versatility: Say goodbye to that drawer full of adapters for good. The Ingersoll Rand 2236 Pneumatic 1/2 inch impact wrench has an interchangeable anvil system that lets you tailor your tool to whatever job is at hand - without losing a single ft-lb of power. Innovation: Ingersoll Rand's patented Drive Xchange System helps you get more versatility, torque, and control out of your impact wrench. Torque: The 2236 series operates with 1,500 ft-lbs of breakaway torque.

Features And Benefits:

• Visibility: The green 2236QTIMAX-G impact wrench allows you to see it on the job and in the garage, while customizing your toolbox. Also available in orange and red.
• Patented Drive Xchange System: Helps you get more versatility, torque, and control out of your impact wrench. With 3/8 inch , 1/2 inch , and 3/4 inch drive options and 5 different anvil lengths ranging from 2 to 10 inch, you can do more work with less equipment.
• Powerful Versatility: 1,500 ft.-lbs. of breakaway torque from a unique patented motor design.
• Patented Direct Greasing System: Greasing your tool has never been easier. Directly grease the tool's hammer for more efficient operation and increased run time.
• Reliable Performance: Stay working, and at peak power by quickly replacing worn or broken anvils. Titanium hammer case is light weight with unyielding durability.
• Ergonomic: Smaller, lighter and better balanced design under 4.5 lbs. and 7.4 inch overall length.
• Quiet: 4 decibels quieter than the 2235TIMAX for a more user-friendly environment.
• Includes 1/2 inch Square Drive Anvil (A41H), 3/8 inch and 3/4 inch drive size options as well as extended lengths sold separately.

Product Application and Uses:

Vehicle Repair

• Includes: DXS2 1/2 inch Square Drive Anvil (A41H). Compatible with all DXS2 anvils and sockets. 3/8 inch and 3/4 inch drive size options as well as extended lengths sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 36
• Air Consumption @ Load (l/min): 1090
• Air Inlet: 1/4 inch NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 9
• Average Air Consumption (l/min): 255

• Blows per Min: 1350

• Color: Green
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 96.4 / 107.4

• Hammer Case: Titanium
• Housing Material: Impact and chemical-resistant composite housing
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 94.2 / 105.2

• Max Bolt Diameter (in): 1 1/4
• Max Free Speed (rpm): 7500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1000
• Max Torque (in-lb): 12002
• Max Torque (nm): 1356
• Min Hose Size (in

IR 22MA2

Large Air Drill, Reversible Roll Throttle, 350 RPM, 1.75HP, No. 2 Morse Taper

Description: We have several series of large drills to meet your construction and industrial needs. The 22 Series works best for general applications, while the 33, 44, and 551 Series are better suited for opening and closing large valves, or for drilling larger holes between 1 inch (25mm) and 3 inches (76mm).

Features And Benefits:

• Side Exhaust: All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
• Governed Motor: No matter which Ingersoll rand large drill series you're interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.
• Lightweight: The 22 Series large drills are strong but lightweight for increased ease of use.
• Balling bearing support for long life and efficient operation

Product Application and Uses:

These air drills are designed for heavy duty drilling and reaming.

• Actuation/Throttle Type/Switch Type: Reversible, Roll
• Air Consumption (cfm): 55
• Air Consumption (l/min): 1558
• Air Inlet: 1/2in NPT

• Capacity in Steel Drilling (in): 7/8
• Capacity in Steel Reaming (in): 5/8

• Color: Beige
• Configuration/Handle Type: T-handle
• Duty Rating: Super Duty

• Exhaust Location: Side

• Height Over Spindle (in): 18.63
• Length of Feed (in): 2.5

• Max Free Speed (rpm): 350
• Max Power (hp): 1.75
• Min Hose Size (in): 3/4

• Power Source: Air Powered

• Product Weight (lb): 14.25
• Reversible: Reversible

• Side to Center Distance (in): 1.44
• Side to Center Distance (mm): 37

• Sound Pressure/Power Db(A): 96.1 / 97.1
• Spindle Type: No. 2 Morse Taper

• Vibration Level (m/s2): <2.5
• Warranty: 1-year

• Lubrication: 50P

IR 22SR-83-3X3/4

IR 231107K

IR 230-36

Gasket for Ingersoll Rand 231 Series Air Impact Wrench

Product Application and Uses:

For use with 231HA, 231HA-2 and 231R Series Air Impact Wrenches.

IR 231-329A

Valve for Ingersoll Rand 231C Series Impact Wrench

IR 231B-THK1

Hammer Kit for Ingersoll Rand 231 Series Air Impact Wrench

• For Use With: 231C
• For Use With: 231C-AP
• For Use With: 231HA
• For Use With: 231HA-2

IR 231-53

Rotor for Ingersoll Rand Impact Wrenches

Product Application and Uses:

For use with 236G, 232, 231, 231H, and 131 Series impact wrenches

IR 231C

1/2" Air Impact Wrench, Super Duty, 600 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The heavy duty 231C impact wrench has the reliability and durability you've come to expect from the Ingersoll Rand name. The powerful tool provides an even impact and is durable enough to last through the toughest work environments.

Features And Benefits:

• Performance: Delivers a max. torque of 600 ft.-lbs. and offers enough power to install and remove stubborn bolts, lug nuts, and other hardy fasteners.
• Reliable Choice: Lightweight and easy to maintain, this impact wrench is a reliable choice for auto hobbyists and professional mechanics alike. Built to withstand harsh environments and repeated drops, this impact wrench won't let you down.
• Adjustable Power: Its adjustable power regulator lets you easily adjust power output needed for your task at hand, The twin hammer mechanism helps ensure efficient performance with impressive rotational speeds of up to 8,000 rpm.
• Comfort and Control: At 7.3 inches in length and weighing only 5.8 lbs, it's compact, ergonomic design minimizes stress on your wrists and hands, The contoured handle makes it easy to carry and control.
• Ready to Use: For added convenience, this impact wrench arrives fully lubricated, so it's ready to use out of the box. Exclusive impact mechanism Pressure-feed lubrication.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 22
• Air Consumption @ Load (l/min): 623
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 4.2
• Average Air Consumption (l/min): 119

• Blows per Min: 1200

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Steel
• Exhaust Location: Front
• Free Speed Sound Pressure/Power Db(A): 99.0 / 110.0

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 8000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 600
• Max Torque (in-lb): 7196
• Max Torque (nm): 813
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 6
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 103.4
• Product Length (in): 7.3

• Product Width (in): 2.81
• Product Height (in): 7.7
• Product Weight (lb): 5.8
• Recommended Forward Torque Range (ft-lb): 25-300
• Recommended Forward Torque Range (in-lb): 301-3602
• Recommended Forward Torque Range (nm): 34-407
• Recommended Reverse Torque (ft-lb): 25-350
• Recommended Reverse Torque (nm): 34-475
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.4
• Side to Center Distance (mm): 36

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 6.5
• Warranty: 1-year

• Accessories: 231-BOOT
• Accessories: S64H1316L-PS1
• Accesso

IR 231B-A626

1/2" Anvil Assembly, Ring Retainer for Ingersoll Rand 2135, 2131 and 231 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 1/2" ring retainer impact wrench models 2135TIMAX, 2135QTIMAX, 231C, 2131C, 2131QT

• For Use With: 2135QXPA
• For Use With: 231C

IR 231-TK3

Tune-up Kit for Ingersoll Rand 231 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 231 Series Impact Wrenches.

• Includes: Felt, Bearings, Socket Retainer, O-Rings, Spring, Gaskets, Seals, Vane pack

• For Use With: 231C
• For Use With: 231C-AP
• For Use With: 231HA
• For Use With: 231HA-2

IR 231B-A726

Anvil Assembly Replacement Part for Ingersoll Rand 2135 Series Pin Anvil Impact Wrench

• For Use With: 2131PEX
• For Use With: 2135PTIMAX

IR 231XP-724

Hammer for Ingersoll Rand Air Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 2130, 2132, 2135, 231, 232 and 231H Series impact wrenches

IR 231HA-2

1/2" Air Impact Wrench, 2" Ext Anvil, Super Duty, 600 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The 231HA Series is the ideal impact wrench for any job you take it to, from facility maintenance and industrial work to vehicle repair and tire work. Tough and durable with a powerful vane motor, this impact wrench won't let you down.

Features And Benefits:

• Durability: This impact wrench is tough enough to handle harsh environments, repeated drops and run-ins with any number of chemicals.
• Access: Pressure-fed lubrication system. Handle exhaust directs air away from user.
• Power Regulation: Adjustable power regulation in forward and reverse.
• Extended Reach: The 2-inch extended anvil provides you with increased reach that's invaluable when working with deeper fasteners.
• Easy to Service: Easy to service two-piece construction.
• Comfort: Contoured handle for comfort and control.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 22
• Air Consumption @ Load (l/min): 623
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: 2" Extended
• Average Air Consumption (cfm): 4.2
• Average Air Consumption (l/min): 119

• Blows per Min: 1150

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 94.0 / 105.0

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 8000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 600
• Max Torque (in-lb): 7196
• Max Torque (nm): 813
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 6
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 172.1
• Product Length (in): 9.1

• Product Width (in): 2.75
• Product Height (in): 7.9
• Product Weight (lb): 6.1
• Recommended Forward Torque Range (ft-lb): 25-300
• Recommended Forward Torque Range (in-lb): 301-3602
• Recommended Forward Torque Range (nm): 34-407
• Recommended Reverse Torque (ft-lb): 25-350
• Recommended Reverse Torque (nm): 34-475
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.4
• Side to Center Distance (mm): 36

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 6.5
• Warranty: 1-year

• Accessories: 231-BOOT
• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessories: S64M17L-PS1
• Accessories: S64M18L-PS1
• Accessories: S64M21L-PS1
• Accessories: S64M22L-PS1
• Accessories: S64M24L-PS1
• Accessories: S64M26L-PS1
• Accessories: SK4H13N

• Lubrication: 105-LBK1
• Lub

IR 231-704

IR 232TGSL

1/2 inch Air Impact Wrench, Super Duty, 625 ft-lb Torque, Friction Ring Retainer, Pistol

Description: If you're looking for NASCAR pitstop-level speeds, the 232TGSL 1/2 inch is the impact wrench for you. Its powerful vane motor and smooth trigger actuation will help you fly through vehicle repair jobs with an added level of confidence and control.

Features And Benefits:

• POWER: The 232TGSL impact gun delivers 625 ft/lbs of maximum reverse torque to give technicians the power they need to complete tough repairs.
• SPEED: This pneumatic thunder gun is the fastest 1/2 inch impact wrench in the Ingersoll Rand line, at 10,000 RPM, to deliver pit crew speed.
• Durability: The steel hammer case and metal housing in the 232TGSL 1/2 inch makes this impact wrench strong and durable to last through any job.
• Warranty: Your 232TGSL 1/2 inch comes with a one-year standard warranty to protect against any manufacturing defects.

Product Application and Uses:

Automotive Vehicle Service Racing

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 23
• Air Consumption @ Load (l/min): 651
• Air Inlet: 1/4 inch NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 5.4
• Average Air Consumption (l/min): 153

• Blows per Min: 1250

• Color: Yellow
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 105.3 / 109.3

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 10000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 625
• Max Torque (in-lb): 7497
• Max Torque (nm): 847
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 6
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 104.1
• Product Length (in): 7.3

• Product Width (in): 2.8
• Product Height (in): 7.3
• Product Weight (lb): 6
• Recommended Forward Torque Range (ft-lb): 500
• Recommended Forward Torque Range (in-lb): 6001
• Recommended Forward Torque Range (nm): 678
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.4
• Side to Center Distance (mm): 36

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Warranty: 1-year

• Accessories: 232TGSL-P32
• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessories: S64M17L-PS1
• Accessories: S64M18L-PS1
• Accessories: S64M21L-PS1
• Accessories: S64M22L-PS1
• Accessories: S64M24L-PS1
• Accessories: S64M26L-PS1

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 231XP-THK1

IR 231G-51

Throttle Valve Spring for Ingersoll Rand for 231G Series Impact Wrench

• For Use With: 231G
• For Use With: 231GXP
• For Use With: 231GXP-K

IR 231-665

Screw for Ingersoll Rand 231H Series Impact Wrench

IR 231G-747

Grip for Ingersoll Rand 231G Impact Wrench

• For Use With: 231G
• For Use With: 231GXP
• For Use With: 231GXP-K

IR 231HP-TK1

Tune-up Kit for Ingersoll Rand 231H Series Impact Wrench

• Includes: Bearings, Spring, O-Rings, Gaskets, Seat, Ball, Seals, Valve, Retainers, Vane pack

• For Use With: 231HA
• For Use With: 231HA-2

IR 231-664

Reverse Valve Dentent Spring Replacement Part for Ingersoll Rand 231C Series Impact Wrench

IR 236

1/2 inch Air Impact Wrench, 450 ft-lb Torque, Friction Ring Retainer, Pistol

Description: If you work in vehicle repair, this impact wrench will see you through every job that walks in the door. The 236 1/2 inch is strong and reliable, with a power regulator that allows for increased control from start to finish.

Features And Benefits:

• RELIABILITY: The 236 1/2 inch Impact Wrench will put in overtime on your toughest projects. Each part is tested for quality, so you can be sure it'll deliver a high-performance output every time.
• POWER: This impact wrench comes with a finely tuned vane motor that pairs smoothly with the jumbo hammer impact mechanism on the 236 1/2 inch impact wrench for maximum power.
• WARRANTY: A one-year warranty comes standard on all 236 1/2 inch impact wrenches

Product Application and Uses:

Vehicle Repair Or Maintenance Repair

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 24
• Air Consumption @ Load (l/min): 680
• Air Inlet: 1/4 inch NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 4.3
• Average Air Consumption (l/min): 122

• Blows per Min: 1200

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: General Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 90.3 / 101.3

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Jumbo Hammer

• Max Bolt Diameter (in): 1/2
• Max Free Speed (rpm): 7400
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 450
• Max Torque (in-lb): 5400
• Max Torque (nm): 610
• Min Hose Size (in): 3/8
• Motor: Non-Biased

• Number of Power Settings: 2
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 84.9
• Product Length (in): 7

• Product Width (in): 2.6
• Product Height (in): 7.2
• Product Weight (lb): 5.3
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.3
• Side to Center Distance (mm): 33

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 12
• Warranty: 1-year

• Accessories: 236-BOOT
• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessories: S64M17L-PS1
• Accessories: S64M18L-PS1
• Accessories: S64M21L-PS1
• Accessories: S64M22L-PS1
• Accessories: S64M24L-PS1
• Accessories: S64M26L-PS1
• Accessories: SK4H13N

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 236-A626
• Parts: 236-TK1

IR 2372896

IR 241SR-17

IR 241SR-122

Screen for Ingersoll Rand 130A1M, 241A1M, 341 and 441 Series Air Rammer

Product Application and Uses:

For use with Ingersoll Rand 130A1M, 241A1M, 341A2M Air Rammers

• For Use With: 130A1M
• For Use With: 241A1M
• For Use With: 341A2M

IR 241SR-33A

IR 241SR-31

IR 236-A626

Anvil Assembly for Ingersoll Rand 236G Impact Wrench

• For Use With: 236
• For Use With: 236G

IR 241SR-30

IR 241SR-311

IR 236-TK1

Tune-up Kit for Ingersoll Rand 236G Impact Wrench

• Includes: Throttle valve, exhaust silencer, trigger, bearing retainer, rear rotor bearing, rotor, cylinder dowel and hammer case bushing

• For Use With: 236
• For Use With: 236G

IR 236-52

IR 241SR-5

IR 241SR-A124

IR 241SR-A160

IR GEA40-406

IR GEA40-478

IR GEA40-478S

IR GEA40-490-1
