INGERSOLL-RAND IR TOOL S12880
INGERSOLL-RAND IR TOOL S12880 branded products

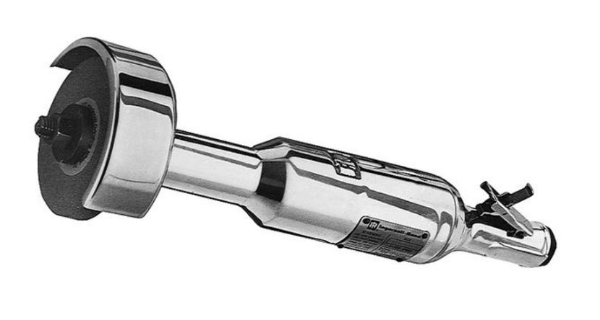

GRINDER
IR 77H120H84
IR 77H120H84
Air Grinder, 4" Type 1 Wheel, 12,000 RPM, 1.5 HP, 1/2"-13 Thread
Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.Features And Benefits
- Reliability: With a built-in mist lubricator and motor controller to extend tool life and regulate performance, you can count on these grinders to work the way you want them to any time you pull the trigger.
- Power: High powered 1.5 HP and 12,000 RPM motor allow for quick and easy material removal without breaking a sweat.
- Durability: Ingersoll Rand tools are built to withstand harsh conditions and repeated drops, and this series is no different.
Product Application and Uses: Specially designed for heavy duty applications best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/2"-13 Thread
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Guard Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Mounting Type: Arbor
Power Source: Air Powered
Rated Power (hp): 1.5
Rated Power (kW): 1.12
Sound Pressure/Power Db(A): 82.4 / 93.4
Vibration Level (m/s2): 2.8
Vibration Uncertainy K* (m/s2): 1.2
Warranty: 1-year
Wheel Diameter (in): 4
Wheel Thickness (in): 1
Wheel Type: Type 1
$1,738.80
GRINDER
IR 77H90L10
IR 77H90L10
Cone and Plug Air Grinder, 9000 RPM, 1.5 HP, 5/8 in-11 Thread, Side Exhaust
Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.Features And Benefits
- Reliability: With a built-in mist lubricator and motor controller to extend tool life and regulate performance, you can count on these grinders to work the way you want them to any time you pull the trigger.
- Versatile: Compatible with piped-away exhaust kits to make your job easier.
Product Application and Uses: Specially designed for heavy duty applications best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 37
Air Consumption @ Load (l/min): 1048
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Color: Black
Configuration/Handle Type: Straight
Exhaust Location: Side
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 9000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 16.44
Product Weight (lb): 6
Rated Power (hp): 1.5
Rated Power (kW): 1.1
Vibration Level (m/s2): 4.2
Vibration Uncertainy K* (m/s2): 3.5
Warranty: 1-year
Wheel Type: Cone
$1,428.30
POWER MOTOR
IR 7811-B
IR 7811-B
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 250 RPM, 0.7 HP, 74 NM, Reversible
Air Consumption at Max HP (scfm): 37.3Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 250
Max Pressure (bar): 6.2
Max Torque (ft-lb): 55
Max Torque (in-lb): 655
Max Torque (nm): 74
Motor: Rotary Vane
Motor: In line
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 5.17
Rated Power (hp): 0.7
Rated Power (kW): 0.52
Reversible: Reversible
Sound Level dB(A): 85
Speed at Max Power (rpm): 130
Torque Output @ Max HP (ft-lb): 29
Torque Output @ Max HP (nm): 38.7
Warranty: 1-year
$2,392.50
THROTTLE REGULATORASSEMBLY - 3/32" AND 3/1
IR 8000MAX-A335
IR 8000MAX-A335
THROTTLE REGULATORASSEMBLY - 3/32" AND 3/1 $15.00
THREADED RETAINER QTY 1
IR 9001-200
IR 9001-200
Threaded Barrel Retainer for Ingersoll Rand Rivet Busters
Product Application and Uses: For Use with Ingersoll Rand 8001, 9001, 11001 Threaded Barrel Rivet BustersRetainer Type: Threaded barrel with rubber buffered
For Use With
- 11001
- 9001
$139.00
KEY FOR THD RET, QTY 1
IR 9001-208
IR 9001-208
Lock Key for Ingersoll Rand Riveters
Product Application and Uses: For use with Ingersoll Rand 9001 and 11001 RivetersFor Use With
- 11001
- 9001
$32.00
UPPER SLEEVE QTY 1
IR 9001-220
IR 9001-220
Upper Sleeve, Threaded or Grooved Barrel for Ingersoll Rand Rivet Busters
Product Application and Uses: For use with Ingersoll Rand 8001A, 9001, 9001A, 11001A, 11001 threaded or grooved rivet busters.Housing Material: Steel
For Use With
- 11001
- 11001A
- 8001A
- 9001
- 9001A
$24.00
SIDE CUT CHISEL - 18"
IR 9001-277-18
IR 9001-277-18
18" Side-cut Rivet Buster Chisel Steel, Jumbo Shank
Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Our jumbo shank rivet buster steels and attachments are ideal for general demolition and steel demolition applications.Includes: (5) Rivet Buster Chisel Steels
Product Application and Uses: Designed for steel, rivet cutting. For use with Ingersoll Rand 8001A, 9001, 9001A, 11001A, 11001 rivet busters.
Chisel Style: Side-cut
Housing Material: Steel
Product Length (in): 18
Product Weight (lb): 3.75
Shank SIze (in): 0.866
Shank Type: Jumbo
For Use With
- 11001
- 11001A
- 8001A
- 9001
- 9001A
$71.00
MOIL POINT - 9"
IR 9001-297-9
IR 9001-297-9
9" Moil Point Rivet Buster Steel, Jumbo Shank
Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Our jumbo shank rivet buster steels and attachments are ideal for general demolition and steel demolition applications.Includes: (15) Moil Point Steels
Product Application and Uses: Ideal for general demolition. For use with Ingersoll Rand 8001A, 9001, 9001A, 11001A, 11001 rivet busters.
Chisel Style: Moil Point
Housing Material: Steel
Product Length (in): 9
Product Weight (lb): 2
Shank SIze (in): 0.866
Shank Type: Jumbo
For Use With
- 11001
- 11001A
- 8001A
- 9001
- 9001A
$54.00
MOTOR -- MULTI-VANE
IR 92RA008
IR 92RA008
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 1296 RPM, 8.15 HP, 148 NM, Reversible
Air Consumption at Max HP (scfm): 230Air Inlet: 1" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Aluminum
Max Free Speed (rpm): 1296
Max Pressure (bar): 6.2
Max Torque (ft-lb): 109
Max Torque (in-lb): 1310
Max Torque (nm): 148
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 46
Rated Power (hp): 8.15
Rated Power (kW): 6.08
Reversible: Reversible
Speed at Max Power (rpm): 620
Starting Torque (ft-lb): 80
Starting Torque (nm): 109
Warranty: 1-year
$7,482.00
MOTOR -- MULTI-VANE
IR 92RB078
IR 92RB078
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 120 RPM, 7.9 HP, 1478 NM, Reversible
The 92R Series has a durable spur gear system and robust vane motor design making it one of the most durable and powerful motors around.Features And Benefits
- Safety: Meets ATEX Standards
- Durable: The 92 Series can withstand harsh environments and are deal for high torque and increased side loading applications.
- Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.
Product Application and Uses: Paper Machinery, Large conveyers, Heavy Lifting, Valve Actuators, Industrial Equipment
Air Consumption at Max HP (scfm): 225
Air Inlet: 1" NPT
Air Pressure (psi): 90
Drive Length (in): 3.0625
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Ratio: 78:1
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Aluminum
Keyaway Length (in): 2
Max Free Speed (rpm): 120
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1090
Max Torque (in-lb): 13081
Max Torque (nm): 1478
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 15.22
Product Width (in): 10.5
Product Height (in): 10.5
Product Weight (lb): 78
Rated Power (hp): 7.9
Rated Power (kW): 5.89
Reversible: Reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 59
Standards/Certifications: ATEX
Starting Torque (ft-lb): 770
Starting Torque (nm): 1044
Warranty: 1-year
$8,482.50
MOTOR -- MULTI-VANE
IR 92RA014
IR 92RA014
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 682 RPM, 8.15 HP, 282 NM, Reversible
Air Consumption at Max HP (scfm): 230Air Inlet: 1" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Aluminum
Max Free Speed (rpm): 682
Max Pressure (bar): 6.2
Max Torque (ft-lb): 208
Max Torque (in-lb): 2496
Max Torque (nm): 282
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 46
Rated Power (hp): 8.15
Rated Power (kW): 6.08
Reversible: Reversible
Speed at Max Power (rpm): 327
Starting Torque (ft-lb): 152
Starting Torque (nm): 206
Warranty: 1-year
$7,743.00
DIGGER 93LA1
IR 93LA1
IR 93LA1
Digger, 7/8 x 3-1/4" Hex Shank, 2350 BPM, 2.5" Stroke Length, 1.69" Bore
Ideal for digging clay, frozen ground, horizontal concrete demolition, tunneling, and bridgework, the 93 Series diggers can tackle almost anything. With a short, powerful 2.5 inch piston stroke and multiple configurations available, you can remove material quickly and easily.Features And Benefits
- Access: The 93 Series features a tease throttle for maximum precision, coupled with a D-shape handle to allow access to tighter spaces.
- Durability: With a rubber buffer retainer to absorb shock and protect the tool, the 93 Series diggers will last for years.
- Reliability: The side exhaust and steel cone increase user safety and productivity for better use every time.
- Weight: Built with premium materials, the 93 Series diggers are lightweight and easy to use.
Product Application and Uses: Ideal for digging clay, frozen ground, horizontal concrete demolition, tunneling, and bridgework
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 45
Air Consumption @ Load (l/min): 12.74
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 2350
Bore Diameter (in): 1.69
Collar Type: Round
Color: Beige
Configuration/Handle Type: D-Handle
Duty Rating: Industrial Duty
Exhaust Location: Side
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 18.88
Product Weight (lb): 23
Retainer Type: Latch
Shank SIze (in): 7/8 x 3-1/4
Shank Type: Hex
Stroke Length (in): 2.5
Vibration Level (m/s2): 28 / 8.0
Warranty: 1-year
Similar IR
- 93A1
- 93A4
- 95A1
- 95LA1
$1,350.90
42V CTRL ASSEMBLY, 2SPEED, 100-480V
IR 9402.1655.2
IR 9402.1655.2
42V CTRL ASSEMBLY, 2SPEED, 100-480V $1,640.00
BPN_94-024 : CYLINDER, TEFUA, JPA10, PC24
IR 94-024
IR 94-024
BPN_94-024 : CYLINDER, TEFUA, JPA10, PC24 $174.00
RETAINER (MPQ=1) PACK OF 2
IR 9505
IR 9505
Hammer Spring Retainer for Ingersoll Rand 114GQC Air Hammer, 2-Piece
This spring set includes 2 hammer-spring retainers designed to guard against accidental shank release. Pair with your Ingersoll Rand 114GQC Edge Series Air Hammer for best results.Includes: (2) hammer-spring retainers
Retainer Type: Spring
For Use With
- 114GQC
$15.00
