INGERSOLL-RAND IR TOOL S12880
INGERSOLL-RAND IR TOOL S12880 branded products
AIR CYLINDER 2.5 X 12" REF ARO# ANATK-ABXA4-120
IR 99818817
IR 99818817
AIR CYLINDER 2.5 X 12" REF ARO# ANATK-ABXA4-120 $415.00

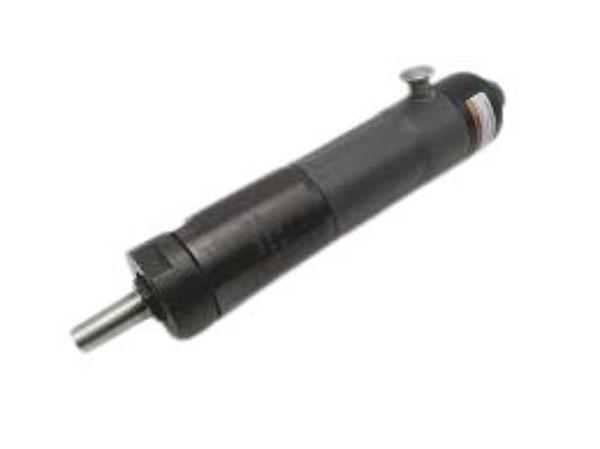

POWER MOTOR
IR 7812-B
IR 7812-B
Inline Multi-Vane Air Motor, 1/2"-20 Thd Spindle, 350 RPM, 0.85 HP, 75.5 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/2"-20 Thread
Drive Size (in): 1/2
Drive Type: Threaded
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 350
Max Pressure (bar): 6.2
Max Torque (ft-lb): 56
Max Torque (in-lb): 668
Max Torque (nm): 75.5
Motor: Rotary Vane
Motor: In line
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 5.17
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 170
Torque Output @ Max HP (ft-lb): 27
Torque Output @ Max HP (nm): 36
Warranty: 1-year
$2,580.00
POWER MOTOR
IR 7814-B
IR 7814-B
Inline Multi-Vane Air Motor, 1/2"-20 Thd Spindle, 18000 RPM, 0.85 HP, 1.4 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/2"-20 Thread
Drive Size (in): 1/2
Drive Type: Threaded
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 18000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1.0
Max Torque (in-lb): 12
Max Torque (nm): 1.4
Motor: Rotary Vane
Motor: In line
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 4.24
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 9000
Torque Output @ Max HP (ft-lb): 0.5
Torque Output @ Max HP (nm): 0.68
Warranty: 1-year
$2,320.00
POWER MOTOR
IR 7815-1B
IR 7815-1B
Inline Multi-Vane Air Motor, 1/2"-20 Thd Spindle, 1200 RPM, 0.85 HP, 21.9 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/2"-20 Thread
Drive Size (in): 1/2
Drive Type: Threaded
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1200
Max Pressure (bar): 6.2
Max Torque (ft-lb): 16
Max Torque (in-lb): 194
Max Torque (nm): 21.9
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 5.17
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 600
Torque Output @ Max HP (ft-lb): 7.5
Torque Output @ Max HP (nm): 10.2
Warranty: 1-year
$2,490.00
POWER MOTOR
IR 7812-1B
IR 7812-1B
Inline Multi-Vane Air Motor, 1/2"-20 Thd Spindle, 350 RPM, 0.85 HP, 75.5 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/2"-20 Thread
Drive Size (in): 1/2
Drive Type: Threaded
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 350
Max Pressure (bar): 6.2
Max Torque (ft-lb): 56
Max Torque (in-lb): 668
Max Torque (nm): 75.5
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 5.17
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 170
Torque Output @ Max HP (ft-lb): 27
Torque Output @ Max HP (nm): 36
Warranty: 1-year
$2,540.00
POWER MOTOR
IR 7813-1B
IR 7813-1B
Inline Multi-Vane Air Motor, 1/2"-20 Thd Spindle, 650 RPM, 0.85 HP, 41.2 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/2"-20 Thread
Drive Size (in): 1/2
Drive Type: Threaded
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 650
Max Pressure (bar): 6.2
Max Torque (ft-lb): 30
Max Torque (in-lb): 365
Max Torque (nm): 41.2
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 5.17
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 320
Torque Output @ Max HP (ft-lb): 14
Torque Output @ Max HP (nm): 19.1
Warranty: 1-year
$2,540.00
POWER MOTOR
IR 7815-B
IR 7815-B
Inline Multi-Vane Air Motor, 1/2"-20 Thd Spindle, 1200 RPM, 0.85 HP, 21.9 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/2"-20 Thread
Drive Size (in): 1/2
Drive Type: Threaded
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1200
Max Pressure (bar): 6.2
Max Torque (ft-lb): 16
Max Torque (in-lb): 194
Max Torque (nm): 21.9
Motor: Rotary Vane
Motor: In line
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 5.17
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 600
Torque Output @ Max HP (ft-lb): 7.5
Torque Output @ Max HP (nm): 10.2
Warranty: 1-year
$2,590.00
POWER MOTOR
IR 7817-B
IR 7817-B
Inline Multi-Vane Air Motor, 1/2"-20 Thd Spindle, 2500 RPM, 0.85 HP, 10.3 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/2"-20 Thread
Drive Size (in): 1/2
Drive Type: Threaded
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 2500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 7.6
Max Torque (in-lb): 91
Max Torque (nm): 10.3
Motor: Rotary Vane
Motor: In line
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 4.24
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 1300
Torque Output @ Max HP (ft-lb): 3.5
Torque Output @ Max HP (nm): 4.7
Warranty: 1-year
$2,350.00
POWER MOTOR
IR 7816-1B
IR 7816-1B
Inline Multi-Vane Air Motor, 1/2"-20 Thd Spindle, 4600 RPM, 0.85 HP, 5.5 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/2"-20 Thread
Drive Size (in): 1/2
Drive Type: Threaded
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 4600
Max Pressure (bar): 6.2
Max Torque (ft-lb): 4.1
Max Torque (in-lb): 49
Max Torque (nm): 5.5
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 4.24
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 2400
Torque Output @ Max HP (ft-lb): 1.8
Torque Output @ Max HP (nm): 2.5
Warranty: 1-year
$2,250.00
