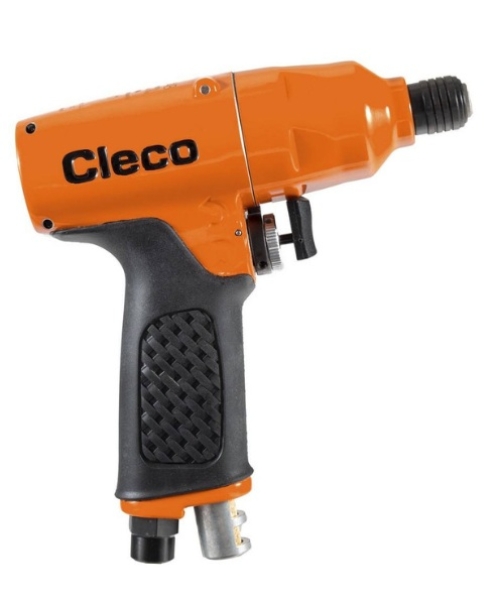

MP MP2265B

3/8 Sq. Drive Impact, 10-55 ft.-lbs.

SX STP10S5B12

Tapper, Straight, 500 rpm, 1 hp

SX STP10S12B12

Tapper SS 1200Rpm B12 Taper

SX STP10P3C32

Tapper Ss 300 Rpm, 1/4-5/16

SX 5095C

D-Handle Impact, Friction Ring

SX 5093C

D-Handle Impact 1in, Friction Ring

SUM POWR15-9/16

Auto Shut Off Air Open End Wrench, 9/16in, 6-15Nm

SUM NSA-1131

Letter Stamp

SUM NS-113

Stamp Tool, 1/2 Shaft

SUM IPW-2328LB

3/8in Sq. Dr. Auto Shut-Off Clutch Oil Pulse Wrench w/Retaing Pin

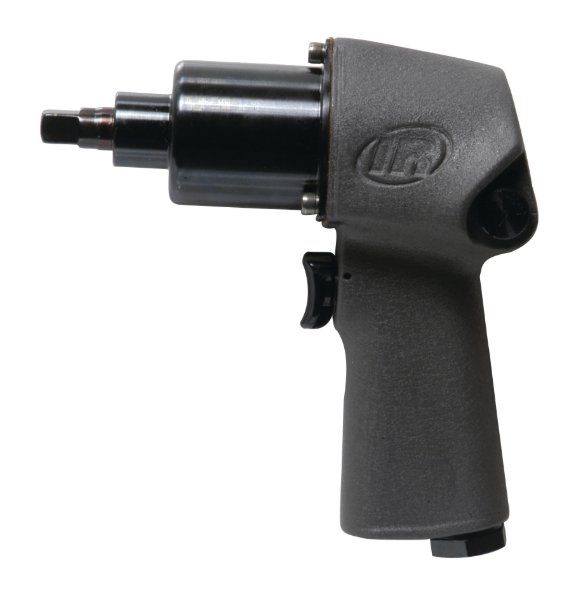

IR 1702P1

3/8" Air Impact Wrench, 125 ft-lb Torque, Pin Retainer, Pistol

The 1702 Series Impact Wrench’s steel hammer case and metal housing ensure a tough, durable tool that’ll help you breeze through any job without having to worry about your tools giving up.

Features And Benefits

• Power: With a jumbo hammer impact mechanism and power regulation, the 1702 Series is powerful and easy to control.
• Reliable: No matter how often you use it, the 1702 Series Impact Wrench will deliver the same high-quality output every time. Comes with a 1-year warranty.

Product Application and Uses: These air impact wrenches are designed to remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 15
Air Consumption @ Load (l/min): 425
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 1500
Color: Black
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: General Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 96.0 / 107.0
Hammer Case: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 92.2 / 103.2
Max Bolt Diameter (in): 0.4375
Max Free Speed (rpm): 10000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 125
Max Torque (in-lb): 1496
Max Torque (nm): 169
Min Hose Size (in): 5/16
Motor: Non-Biased
Number of Power Settings: 6
Power Source: Air Powered
Product Length (in): 6
Product Width (in): 2.7
Product Height (in): 6.3
Product Weight (lb): 2.75
Recommended Forward Torque Range (ft-lb): 20-100
Recommended Forward Torque Range (in-lb): 239-1204
Recommended Forward Torque Range (nm): 27-136
Retainer Type: Pin Detent
Side to Center Distance (in): 1.35
Side to Center Distance (mm): 34
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 2.7
Warranty: 1-year

Similar IR

• 1702P4

IR A-9

HANDLE BOLT

IR 834-48

DEAD HANDLE

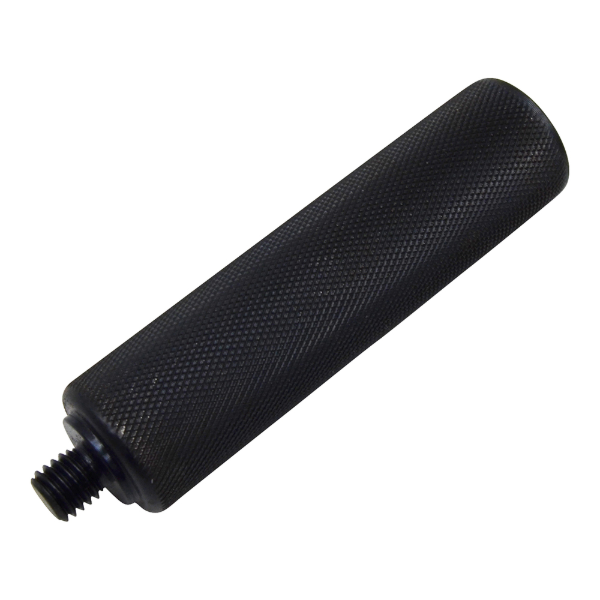

IR 3940-48

Dead Handle for Ingersoll Rand 3940, 3942, 3955 Series Impact Wrench

IR 295A-A40

HOUSING ASSEMBLY

IR 2934-A703

HAMMER FRAME ASSEMBLY

IR 2934-53

ROTOR

IR 285B-24

REAR ROTOR BEARING

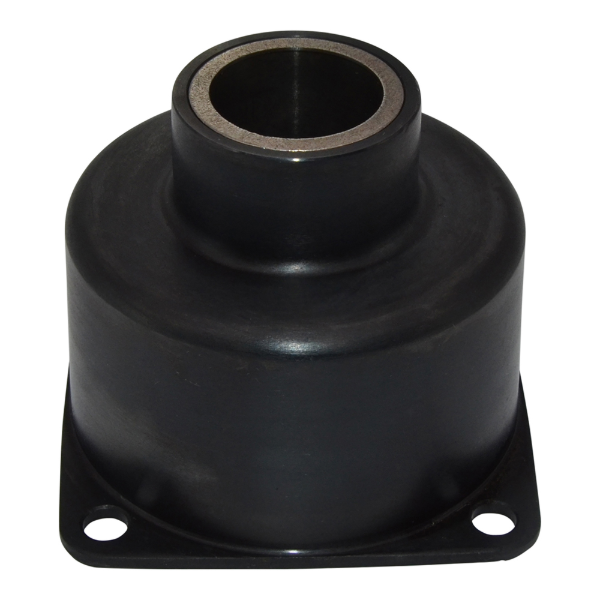

IR 261B-A727
