Impacts

IR 2130-12

BACKPLATE

IR 211-A40

HOUSING

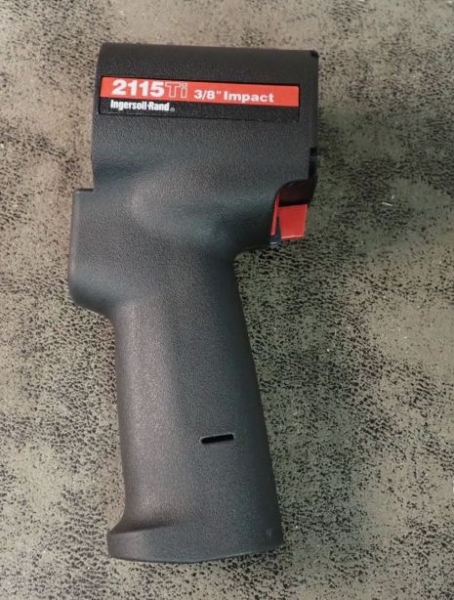

IR 2115TI-A40

HOUSING ASSEMBLY

IR 2115PTIMAX-A40

HOUSING ASSEMBLY

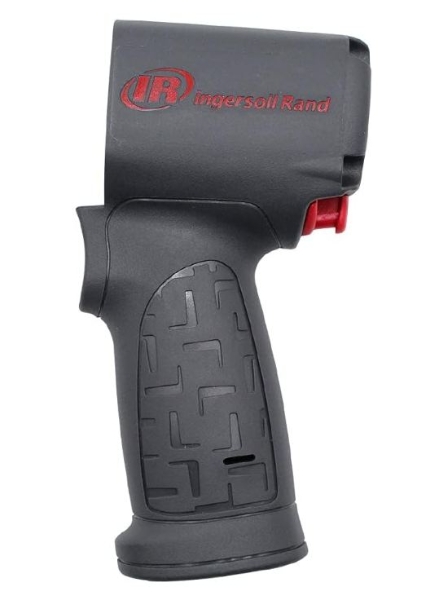

IR 2115PTI-A40

HOUSING ASSEMBLY

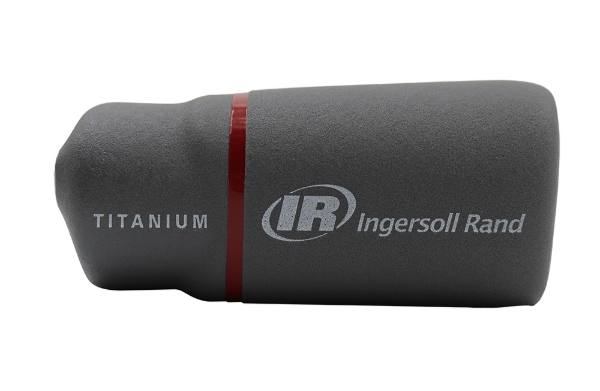

IR 2115M-BOOT

Protective Boot for Ingersoll Rand 2115 Series Impact Wrench

Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.

Color: Grey

For Use With

• 2115PTIMAX
• 2115QTIMAX
• 2115QTIMAX-AP
• 2115TIMAX
• 2125PTIMAX
• 2125QTIMAX

IR 2115-K703

HAMMER FRAME ASSEMBLY KIT

IR 2112-36

GASKET

IR 2112-A249

KNOB ASSEMBLY

IR 2015-K303

INLET PARTS KIT

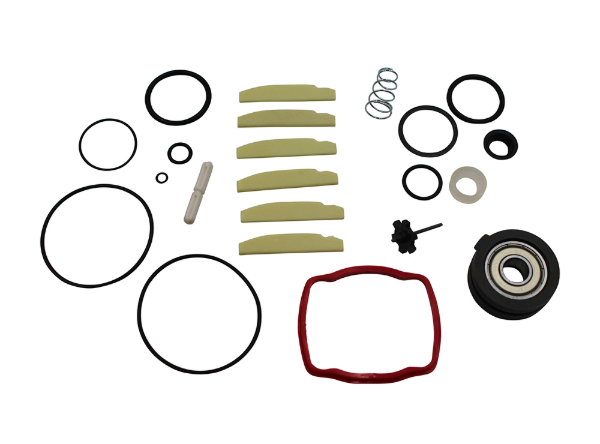

IR 2015-TK

Tune-up Kit for Ingersoll Rand 2015 Series Impact Wrench

Includes: End plate assembly, O-Rings, Throttle pin, Vane pack, Inlet parts kit, Seals, Gaskets and exhaust Deflector Seals

For Use With

• 2015MAX
• 2025MAX

IR 2015-A781

THROTTLE BUSHING KIT

IR 2015-36

GASKET, HOUSING

IR 1712-724

HAMMER

IR 1702SB-A40

HOUSING

IR 1702P-123

DEFLECTOR (48951-20)

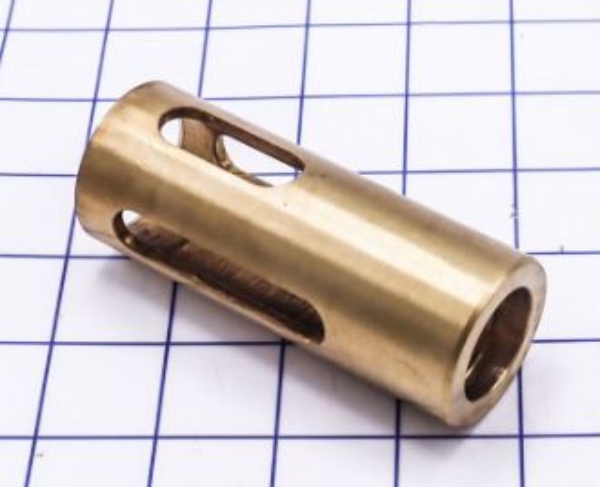

IR ILA582A1-330

BUSHING

IR ILA578A1-720

COVER

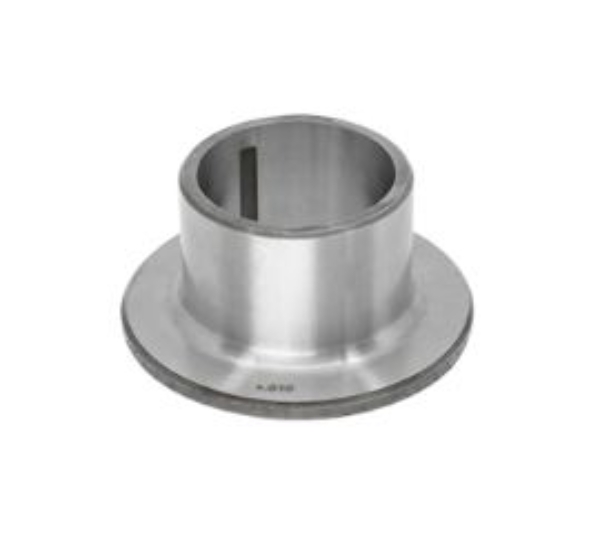

IR ILA578A1-641

BUSHING

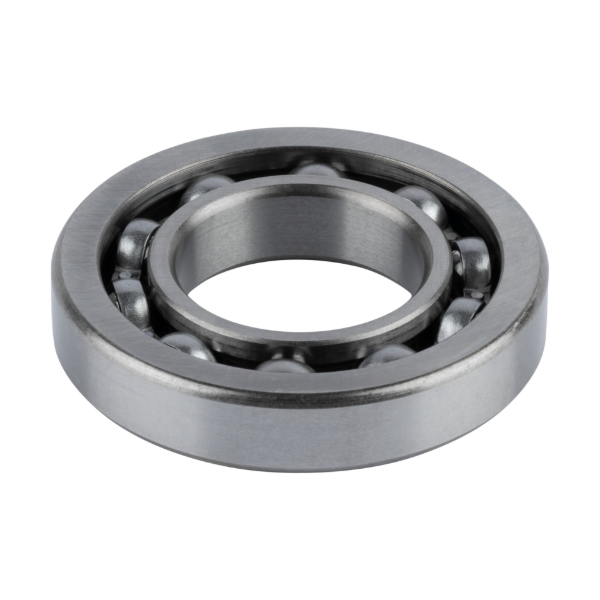

IR 810-97

Front Rotor Bearing Service Part for Ingersoll Rand Power Tools

IR 804-634

SCREW (49440-74)

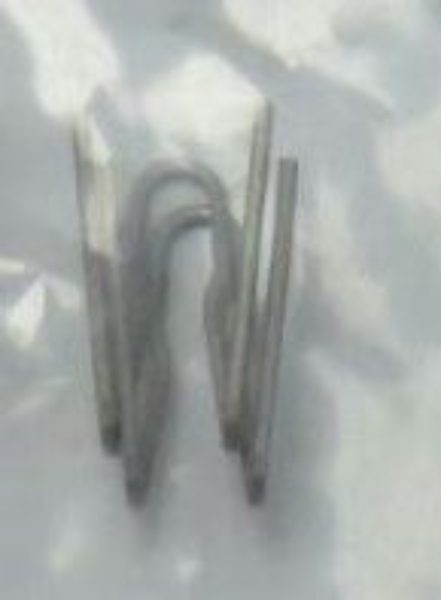

IR 5UHD-715

RETAINER PIN (48951-157)

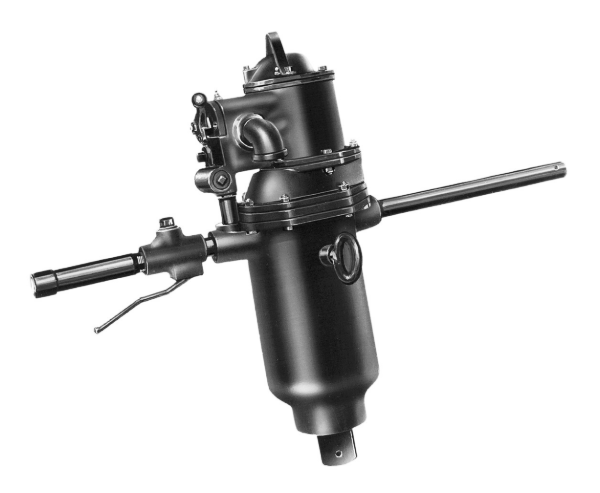

IR 588A1

2-1/2" Air Impact Wrench, Super Duty, 50,000 ft-lb Torque, Thru-hole Retainer, T-handle

The 588A1 Impact Wrench delivers high power, doesn’t stall, and delivers smooth, constant speed from its motor.

Features And Benefits

• Durability: With a cast iron hammer case and bronze end-plate, this wrench is spark proof and corrosion resistant. It will withstand even the harshest conditions.
• Reliability: Doesn’t stall, and delivers smooth, constant speed from its motor. Built with the most premium parts in the industry, this wrench is designed to last.
• Power: With a high torque output and maximum power of 50,000 ft-lbs max torque, this wrench makes every job a breeze.
• Built-in lubricator

Product Application and Uses: These Air Impact Wrenches are designed to remove and install threaded fasteners requiring high torque. Engineered to withstand the harshest working conditions in oilfields, mines, and shipyards.
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 155
Average Air Consumption (l/min): 4389
Blows per Min: 550
Color: Grey
Configuration/Handle Type: T-handle
Drive Size (in): 2-1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 110.0 / 121.0
Hammer Case: Cast Iron
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 3
Max Free Speed (rpm): 355
Max Pressure (bar): 6.2
Max Torque (ft-lb): 50000
Max Torque (in-lb): 599992
Max Torque (nm): 67790
Min Hose Size (in): 1
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 26.63
Product Weight (lb): 215
Recommended Forward Torque Range (ft-lb): 12000-25003
Recommended Forward Torque Range (in-lb): 144002-300040
Recommended Forward Torque Range (nm): 16270 - 33900
Retainer Type: Thru-hole
Side to Center Distance (in): 4
Side to Center Distance (mm): 102
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 5
Vibration Level (m/s2): 20.5
Warranty: 1-year

Similar IR

• 5980A1
• 5982A1

IR 5802-0030

SEAL, NON-RETURNABLE PART

IR 4UA9-593

BEARING
