Airpower | Impacts

IR 232-A40

HOUSING ASSEMBLY

$205.00

IR 232-110

GROMMET

$15.00

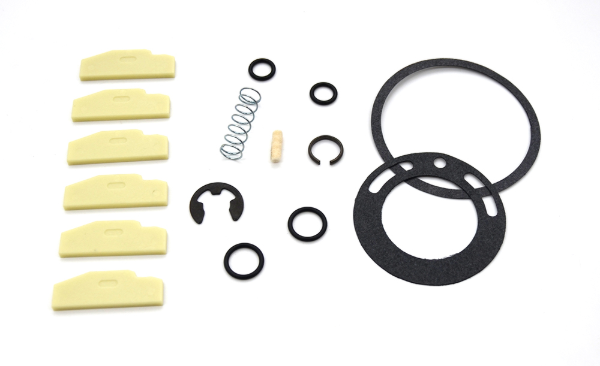

IR 231-TK2

Tune-up Kit for Ingersoll Rand 231 Series Impact Wrench

For Use With

231C
231C-AP
231HA
231HA-2

$35.00

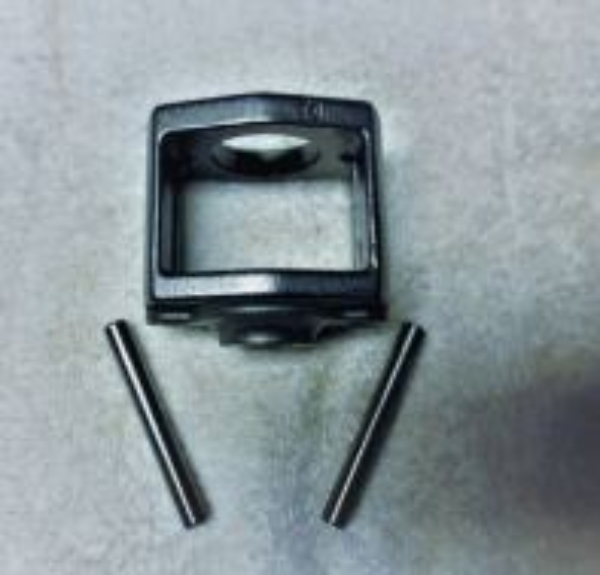

IR 2235-703

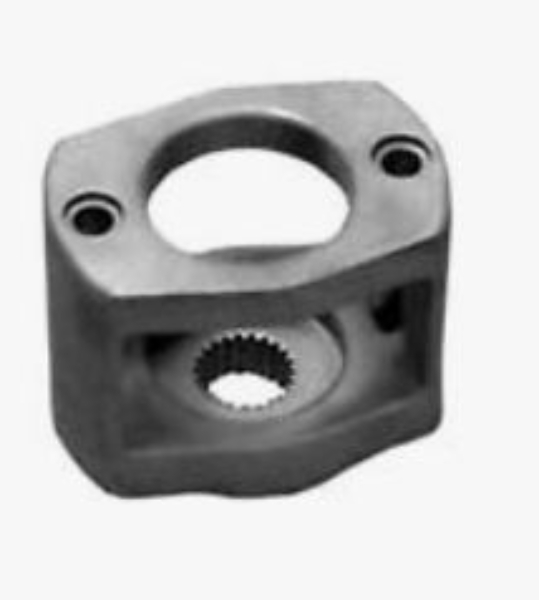

HAMMER FRAME

$89.00

IR 2175-242

VANE, POWER REGULATOR (2)

$15.00

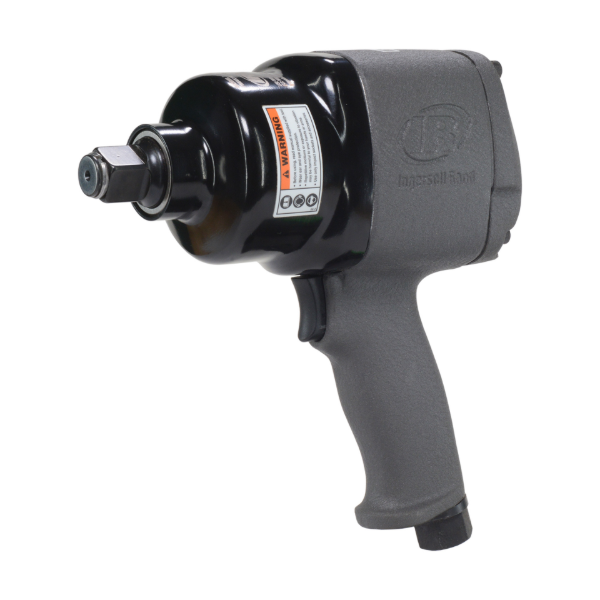

IR 2171XP

1" Air Impact Wrench, 1250 ft-lb Torque, Friction Ring Retainer, Pistol

The metal housing and steel hammer case of the 2171 Series Impact Wrench makes this one of the toughest tools on the market. You’ll also benefit from the twin hammer impact mechanism, which provides a more even impact with every blow and makes it less sensitive to changes in air pressure.

Features And Benefits

Durability: This heavy-duty impact wrench is tough enough to handle harsh environments and repeated drops.
Versatility: The 2171 Series is an ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.

Product Application and Uses: Ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 46
Air Consumption @ Load (l/min): 1303
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 283
Blows per Min: 1025
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 96.4 / 107.4
Hammer Case: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 95.3 / 106.3
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1250
Max Torque (in-lb): 15002
Max Torque (nm): 1695
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 8.5
Product Width (in): 3.5
Product Height (in): 9.5
Product Weight (lb): 12.32
Recommended Forward Torque Range (ft-lb): 300-1000
Recommended Forward Torque Range (in-lb): 3602-12002
Recommended Forward Torque Range (nm): 407-1356
Retainer Type: Friction Ring
Side to Center Distance (in): 1.75
Side to Center Distance (mm): 44
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 10.3
Warranty: 1-year
