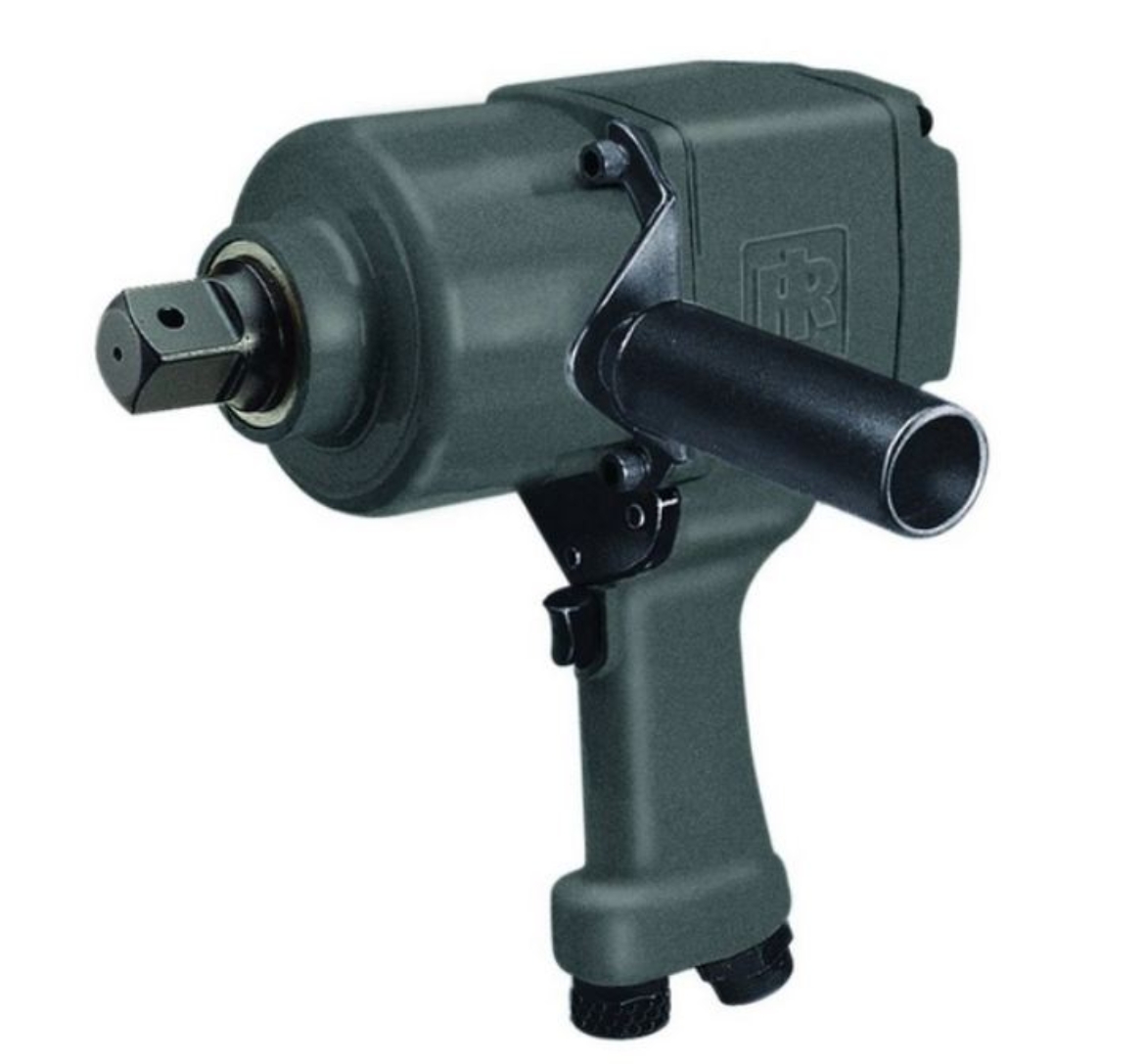

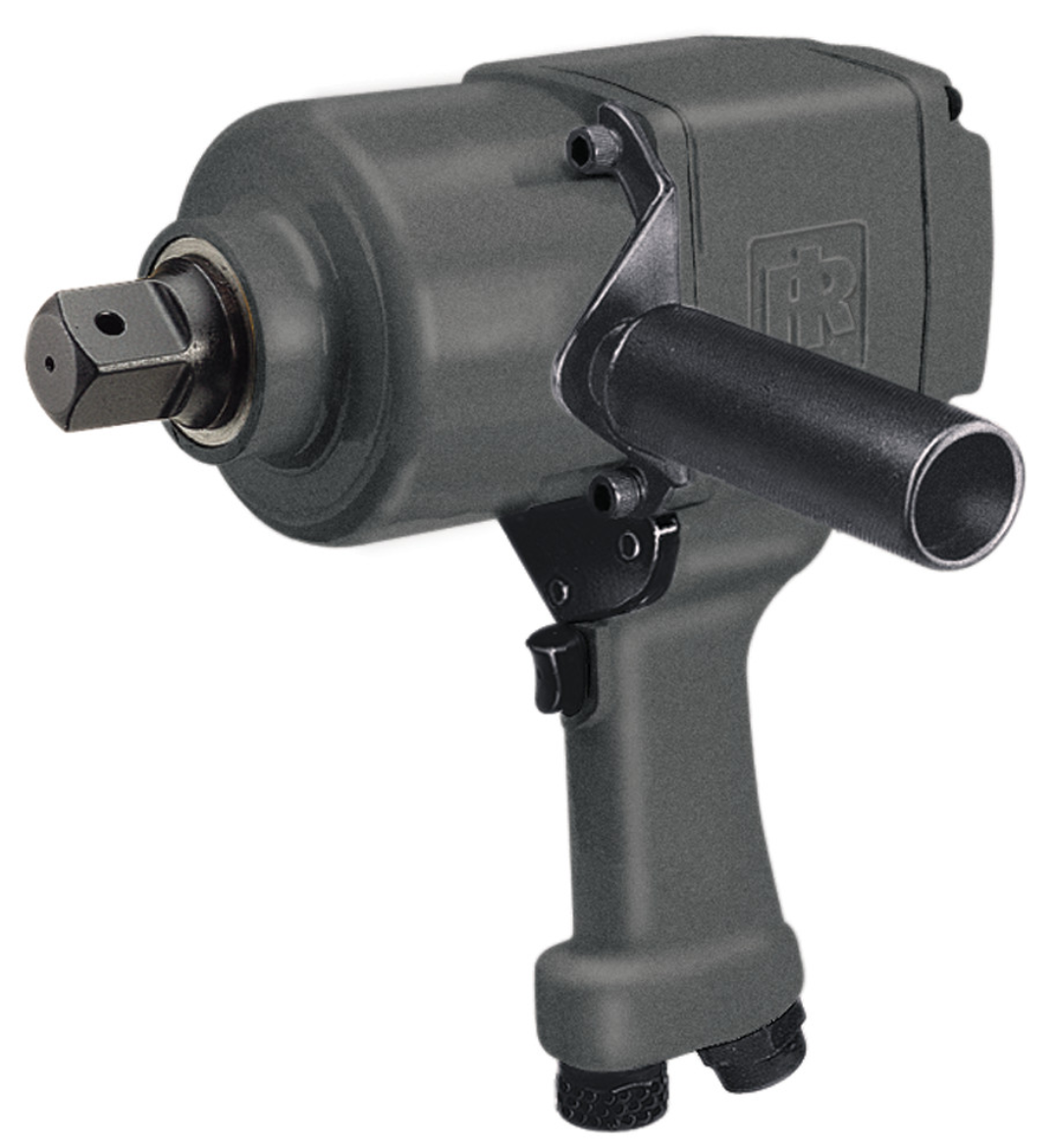

IR 293
1" Air Impact Wrench, Super Duty, 2000 ft-lb Torque, Thru-hole Retainer, Pistol
With a twin hammer impact mechanism and a finely tuned motor, the 293 Series is great for any job, from vehicle repair, to heavy machinery.
Features And Benefits
- Durability: This wrench can withstand drops or harsh conditions, thanks to its steel hammer case and metal housing.
- Reliability: With a twin hammer impact mechanism that delivers even blows every time, and a power regulator that helps keep control, you’ll never doubt that this wrench will perform the way you want it to. Comes with a 1-year warranty.
- Safety: Thanks to its square thru-hole anvil, this wrench offers a stronger connection to the socket, so you never have to sacrifice performance for safety.
Product Application and Uses: This pneumatic impact wrench is especially suited for working on trucks, agricultural equipment, and other heavy duty machinery.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 64
Air Consumption @ Load (l/min): 1812
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 12
Average Air Consumption (l/min): 340
Blows per Min: 810
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 87.3 / 98.3
Hammer Case: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 1.375
Max Free Speed (rpm): 3500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 2000
Max Torque (in-lb): 24003
Max Torque (nm): 2712
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 11.3
Product Width (in): 4
Product Height (in): 6
Product Weight (lb): 22.8
Recommended Forward Torque Range (ft-lb): 1000-1600
Recommended Forward Torque Range (in-lb): 12002-19197
Recommended Forward Torque Range (nm): 1356-2169
Retainer Type: Thru-hole
Side to Center Distance (in): 2
Side to Center Distance (mm): 51
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 18.1
Warranty: 1-year
