Impactool

Manufacturer: INGERSOLL-RAND IR TOOL S12880

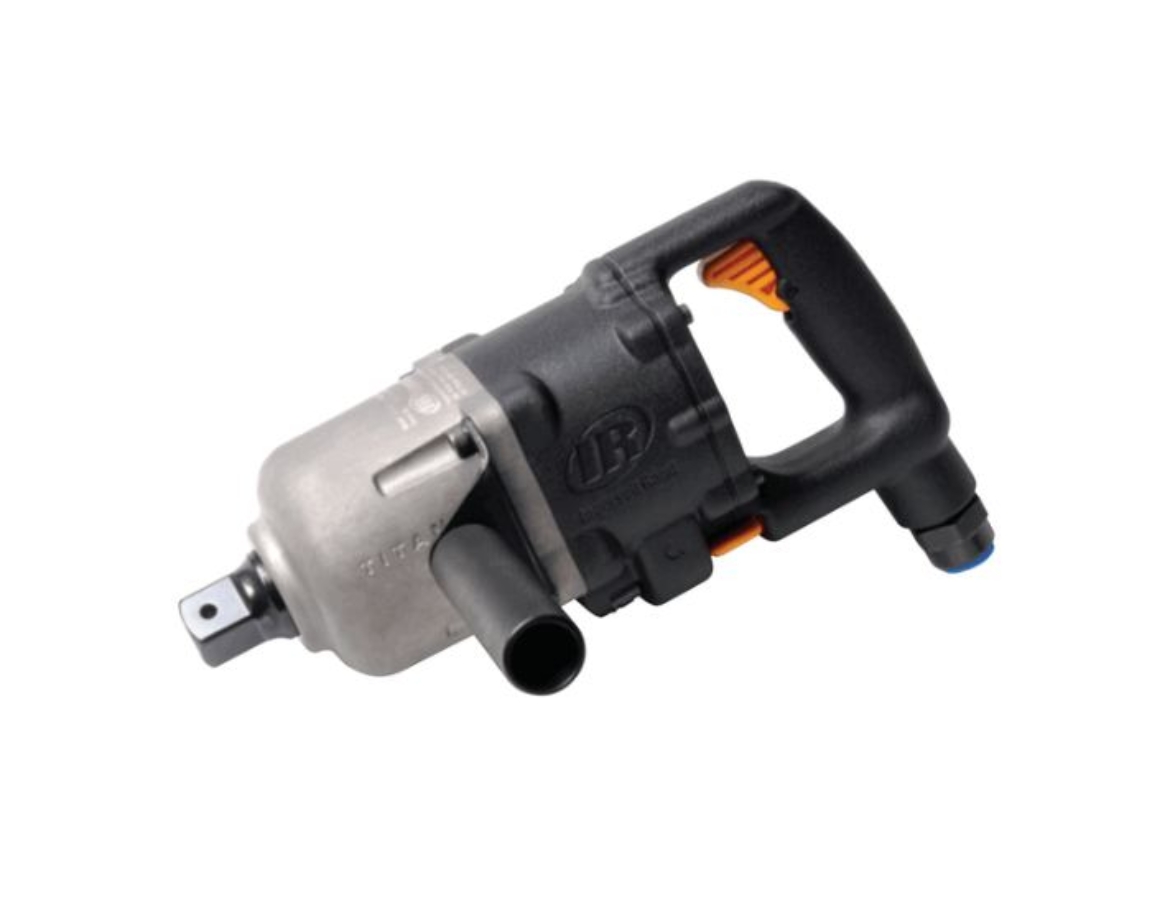

IR 3940A1TI

No. 5 Spline Air Impact Wrench, Super Duty, 2750 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Outside Trigger

Description: With a titanium hammer case, bronze end plates and torque up to 2750 ft-lbs, the 3900 Series are the premier industrial grade impacts in the industry.

Features And Benefits:

  • Power: High torque output of 2750 ft-lbs and 800 blows per minute.
  • Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
  • Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
  • Balance: Twin hammer mechanism ensure consistent power and balance.
  • Reverse bias motor to help remove the most stubborn bolts.
  • Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
  • Integral muffler
  • Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding

Product Application and Uses:

Heavy Industry, Oil&Gas, Foundry

  • Actuation/Throttle Type/Switch Type: Outside Trigger
  • Air Inlet: 1/2" NPT
  • Air Pressure (psi): 90
  • Anvil Length: Standard
  • Average Air Consumption (cfm): 64
  • Average Air Consumption (l/min): 1812
  • Blows per Min: 800
  • Color: Grey
  • Configuration/Handle Type: D-Handle
  • Drive Size (in): No. 5
  • Drive Type: Spline
  • Duty Rating: Super Duty
  • End Plates: Bronze
  • Exhaust Location: Bottom
  • Free Speed Sound Pressure/Power Db(A): 103.4 / 114.4
  • Hammer Case: Titanium
  • Housing Material: Aluminum
  • Impact Mechanism: Twin Hammer
  • Impacting Sound Pressure/Power Db(A): 100.6 / 111.6
  • Max Free Speed (rpm): 6000
  • Max Pressure (bar): 6.2
  • Max Torque (ft-lb): 2750
  • Max Torque (in-lb): 33004
  • Max Torque (nm): 3729
  • Min Hose Size (in): 3/4
  • Motor: Reverse Bias
  • Number of Power Settings: Continuous
  • Power Source: Air Powered
  • Product Length (in): 13.5
  • Product Weight (lb): 21.2
  • Quiet Tool: No
  • Recommended Forward Torque Range (ft-lb): 500-1800
  • Recommended Forward Torque Range (in-lb): 6001-21596
  • Recommended Forward Torque Range (nm): 678-2440
  • Retainer Type: Thru-hole
  • Special Features: Titanium hammercase
  • Tool Type: Full-size
  • Vanes: 7
  • Vibration Level (m/s2): 13.1
  • Vibration Uncertainy K* (m/s2): 1.6
  • Warranty: 1-year
  • Lubrication: 10G
  • Lubrication: 10P
  • Lubrication: 10Z4
  • Parts: 3934-123
SKU: IR 3940A1TI
Availability:
Price: $6,950.00
