Impactool

IR 2925RBP3TI

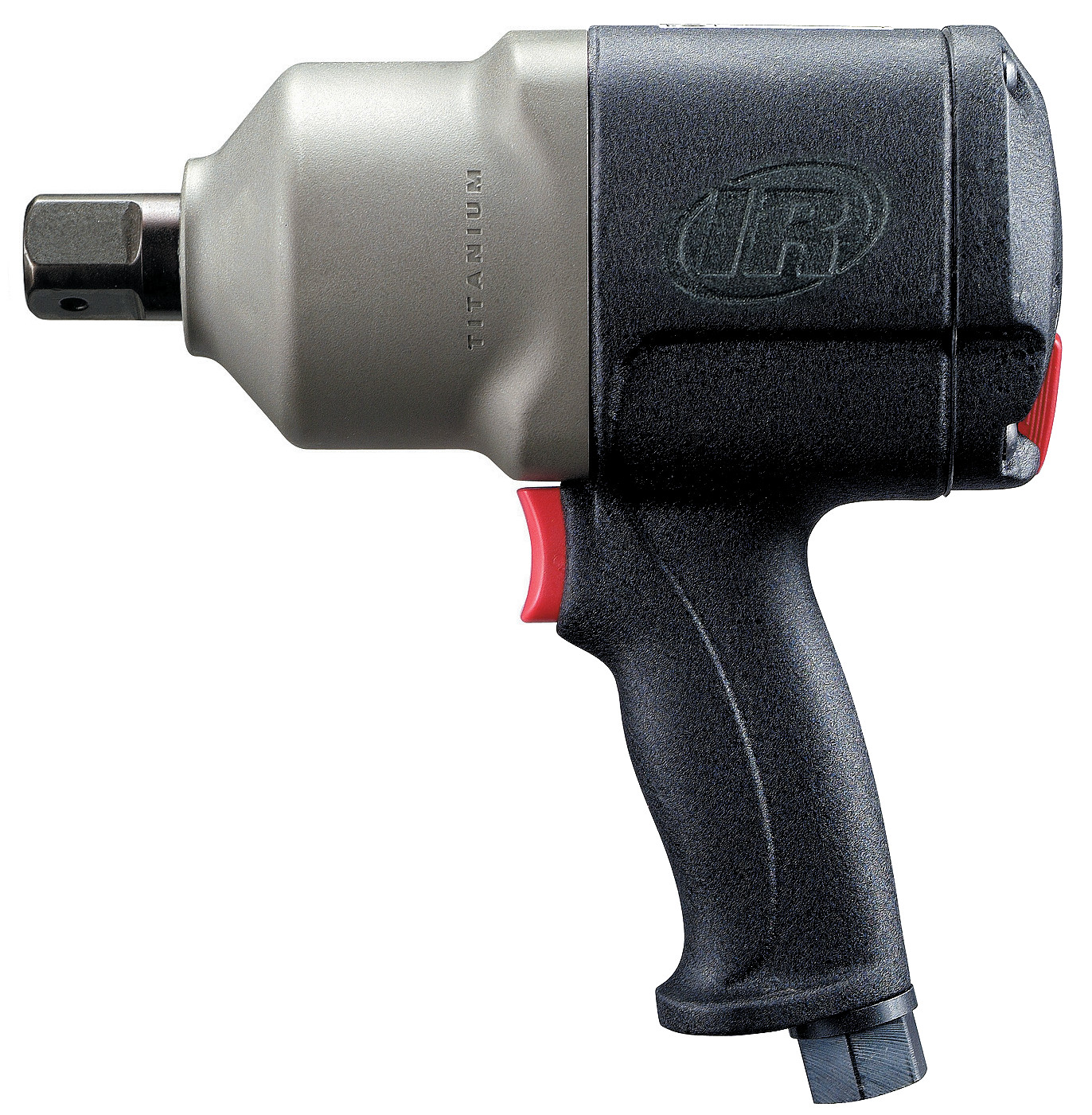

1" Air Impact Wrench, Super Duty, 1600 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, Pistol

Description: Armed with a titanium hammer case and a special corrosion preventative treatment, this series is rust and corrosion resistant.

Features And Benefits:

• Thanks to a titanium hammer case, this wrench is both lightweight and durable.
• The twin hammer impact mechanism means it's less sensitive to air pressure fluctuation, which means you never have to worry about your location affecting your wrench's effectiveness.
• Bronze endplates and a corrosion preventative treatment prevents internal in outdoor, wet environments.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool.
• Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding.
• Integral muffler

Product Application and Uses:

Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding

• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 60
• Air Consumption @ Load (l/min): 1699
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 12
• Average Air Consumption (l/min): 340

• Blows per Min: 1050

• Color: Black
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Bronze
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 99.6 / 110.6

• Hammer Case: Titanium
• Handle Material: Composite
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 95.9 / 106.9

• Max Bolt Diameter (in): 1.125
• Max Free Speed (rpm): 5200
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1497
• Max Torque (in-lb): 17967
• Max Torque (nm): 2030
• Min Hose Size (in): 1/2
• Motor: Reverse Bias

• Number of Power Settings: 3
• Power Source: Air Powered
• Product Length (in): 9.04

• Product Width (in): 3.5
• Product Height (in): 9.6
• Product Weight (lb): 12
• Recommended Forward Torque Range (ft-lb): 1298
• Recommended Forward Torque Range (in-lb): 15577
• Recommended Forward Torque Range (nm): 1760
• Retainer Type: Thru-hole

• Side to Center Distance (in): 1.74
• Side to Center Distance (mm): 44

• Special Features: Titanium Hammer case
• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 7
• Warranty: 1-year

• Lubrication: 10P
• Parts: 2910-826
• Parts: 2925-42-7

• Parts: 834-61
