Husky System,Bulk Antifreeze/Wws

GG 244680

HUSKY SYSTEM, BULK ANTIFREEZE/WWS

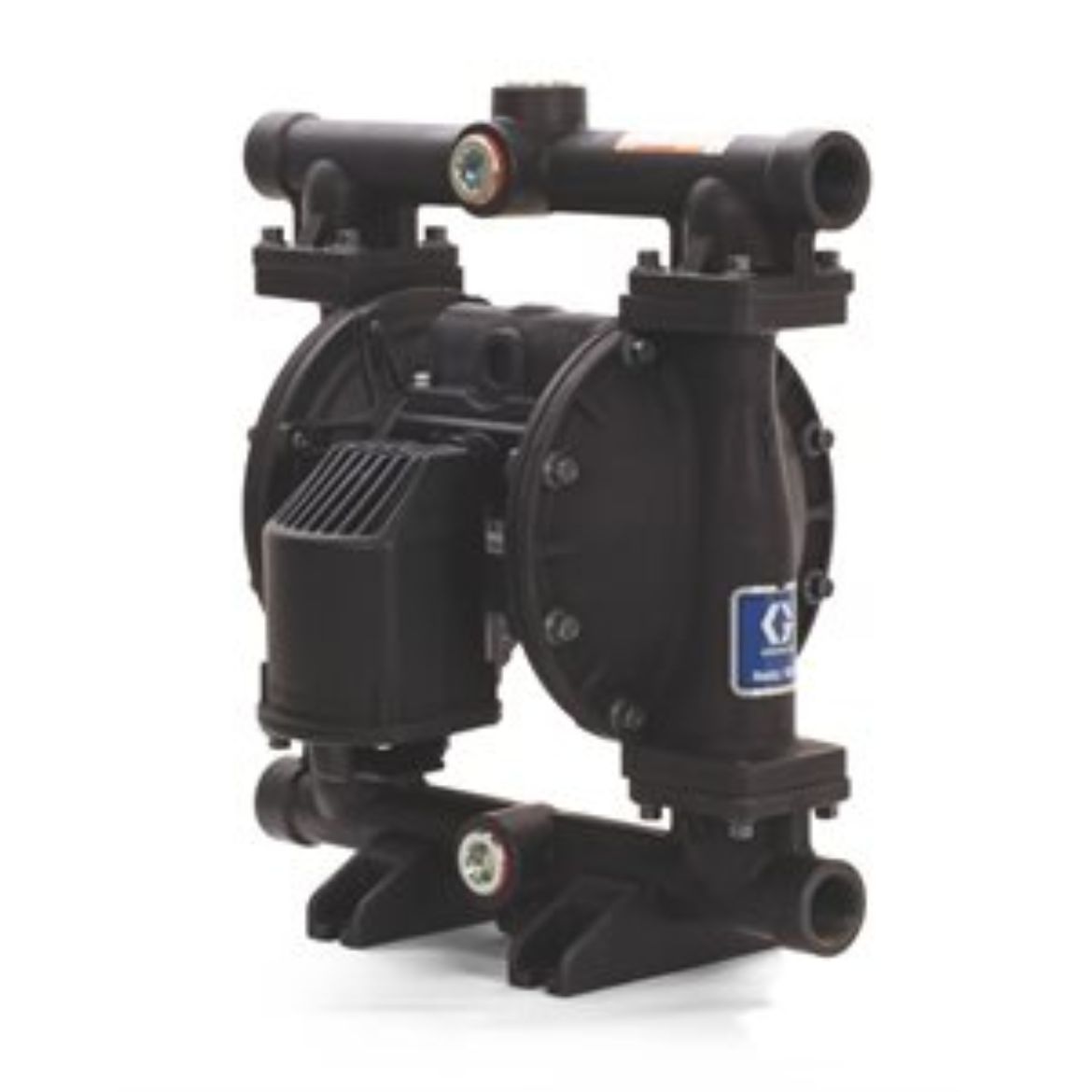

Graco 244680 Husky 1050 – Single Inlet Bulk Antifreeze and Windshield Solvent Transfer Packages

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

• Longer Diaphragm Life - Up to 5x longer diaphragm life for less maintenance and downtime
• Modular Air Valve - Stall-free, low pulsation operation provides smooth and rapid changeover
• One-Piece Center Section - Eliminates air leaks for more efficient operation
• Multiple Ports - Increased number of ports for installation flexibility
• Optional Features - DataTrak (Runaway protection and tracks material usage), Pulse Output (Cycle count capability)
• Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
• 30% more efficient than the market leader
• 20% increase in fluid flow compared to the Husky 1040

• Model: Husky
• Series: 1050

• Application: Industrial

• Ball Material: Acetal

• Compatible Material: Antifreeze, Windshield Washer Fluid

• Diaphragm Material: Thermoplastic Polyester Elastomer

• Fluid Inlet Size (cm): 2.5400
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 2.54
• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Anti-Freeze, Windshield Solvent

• Includes: 1050 AODD Pump, Air Regulator, Fluid Connect Hose, Air Connect Hose, Air Shut-Off Valve, Wall Mount Bracket, Suction Kit, Thermal Relief Kit

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Material: Aluminum, Buna-N

• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 70
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 280

• Maximum Flow Rate (GPM): 50

• Maximum Fluid Pressure (bar): 8.3
• Maximum Fluid Pressure (kPa): 83
• Maximum Fluid Pressure (MPa): 0.8
• Maximum Fluid Pressure (psi): 120

• Maximum Fluid Pressure (bar): 8.3
• Maximum Fluid Pressure (kPa): 83
• Maximum Fluid Pressure (MPa): 0.8
• Maximum Fluid Pressure (psi): 120

• Maximum Solid Size (cm): 0.3175
• Maximum Solid Size (in): 0.125
• Maximum Solid Size (mm): 3.175
