Husky Pump,716A-Pp01Aa1Ssssptpt0

GG D53331

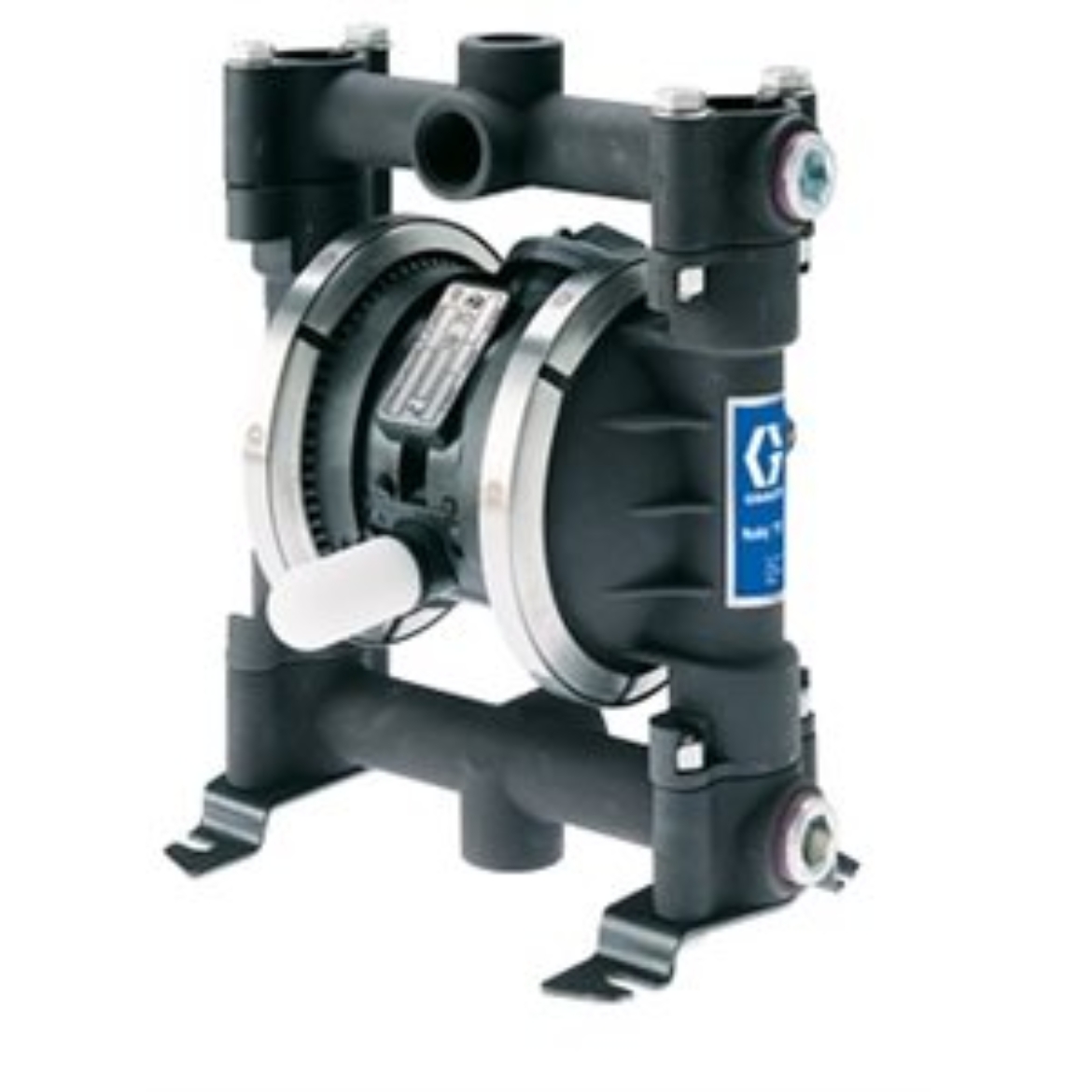

HUSKY PUMP, 716A-PP01AA1SSSSPTPT0

Graco D53331 Husky 716 AL Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, SS Seat, SS Ball, & PTFE Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

• Center- and end-porting
• No mechanical seals which causes fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• 3/4 in (19.05 mm) center- and end-porting
• No seals to leak or fail
• Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• Easy-to-service air valve and ball checks

• Model: Husky
• Series: 716

• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: 316 Stainless Steel

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: PTFE
• Diaphragm Material: PTFE/EPDM 2-Piece

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.905
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Aluminum

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Aluminum

• Maximum Air Consumption (SCFM): 28
• Maximum Air Pressure (bar): 6.9

• Maximum Air Pressure (kPa): 690
• Maximum Air Pressure (MPa): 0.69
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 400

• Maximum Flow Rate (GPM): 16
• Maximum Flow Rate (L/min): 60.6

• Maximum Fluid Pressure (bar): 6.9
• Maximum Fluid Pressure (kPa): 690
• Maximum Fluid Pressure (MPa): 0.69
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 6.9
• Maximum Fluid Pressure (kPa): 690
• Maximum Fluid Pressure (MPa): 0.69
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature ( degree C): 107
• Maximum Operating Temperature ( degree F): 225

• Maximum Solid Size (cm): 0.2383
• Maximum Solid Size (in): 0.09375
• Maximum Solid Size (mm): 2.4

• Minimum Operating Temperature ( degree C): 4
• Minimum Operating Temperature ( degree F): 40

• Power Source: Air
