Husky Pump,716A-Pp01Aa1-3Acbnbnpt

GG 243306

HUSKY PUMP, 716A-PP01AA1-3ACBNBNPT

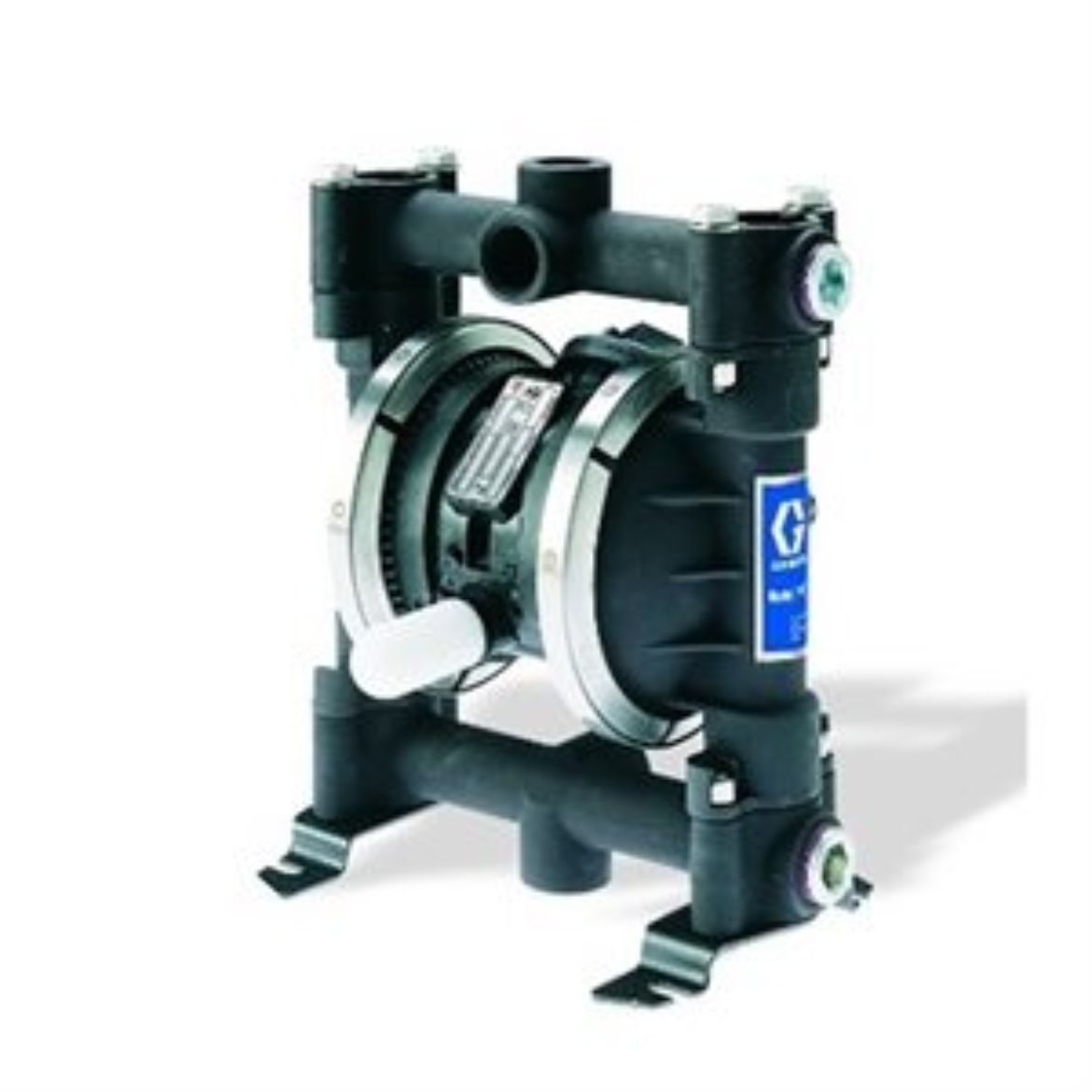

Graco 243306 Husky 716 AL Air Operated Double Diaphragm Metal Pump with AC Seat, Buna Ball, and Buna Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

• Center- and end-porting
• No mechanical seals which causes fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• 3/4 in (19.05 mm) center- and end-porting
• No seals to leak or fail
• Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• Easy-to-service air valve and ball checks

• Model: Husky
• Series: 716

• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Buna-N

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: Buna
• Diaphragm Material: Buna-N

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.905
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Aluminum

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Aluminum

• Maximum Air Consumption (SCFM): 28
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 400

• Maximum Flow Rate (GPM): 16
• Maximum Flow Rate (L/min): 60.6

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature (°C): 107
• Maximum Operating Temperature (°F): 225

• Maximum Solid Size (cm): 0.2383
• Maximum Solid Size (in): 0.09375
• Maximum Solid Size (mm): 2.4

• Minimum Operating Temperature (°C): 4
• Minimum Operating Temperature (°F): 40

• Power Source: Air
