HUSKY PUMP, 515P-PP01AP3PPPTPTPT0

Manufacturer: GRACO INC. S10595

GG D52911

HUSKY PUMP, 515P-PP01AP3PPPTPTPT0

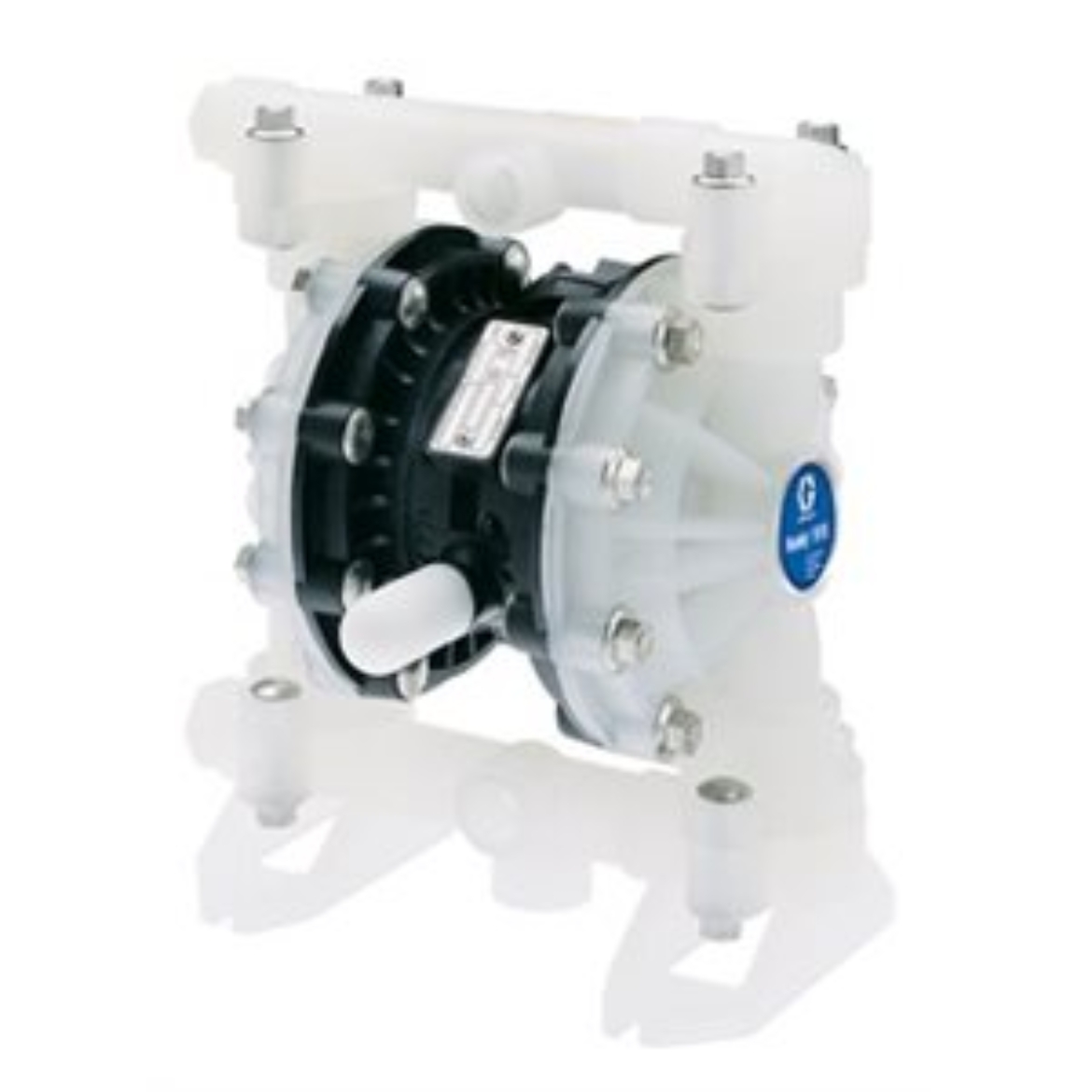

Graco D52911 Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

  • Center and end porting options.
  • No mechanical seals to cause fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
  • Split manifold option to pump multiple fluids without mixing
  • Delivery up to 15 gpm (56.7 lpm)
  • Easy-to-service air valve and ball checks
  • Reliable air valve for years of dependable performance


  • Model: Husky
  • Series: 515
  • Air Exhaust Port Size (in): 3/8
  • Air Exhaust Port Thread Gender: Female
  • Air Exhaust Port Thread Type: NPT
  • Air Inlet Size (in): 1/4
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Application: Industrial
  • Ball Material: PTFE
  • Center Section Material: Polypropylene
  • Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
  • Connection Type: Threaded
  • Diaphragm Compatible Material: PTFE
  • Diaphragm Material: PTFE/EPDM 2-Piece
  • Fluid Inlet Size (cm): 1.27
  • Fluid Inlet Size (in): 1/2
  • Fluid Inlet Size (mm): 12.7
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (cm): 1.27
  • Fluid Outlet Size (in): 1/2
  • Fluid Outlet Size (mm): 12.7
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • Fluid Section Material: Polypropylene
  • Manifold Configuration: Center Port
  • Manifold O-Ring Material: PTFE
  • Material: Polypropylene
  • Maximum Air Consumption (SCFM): 28
  • Maximum Air Pressure (bar): 7
  • Maximum Air Pressure (kPa): 700
  • Maximum Air Pressure (MPa): 0.7
  • Maximum Air Pressure (psi): 100
  • Maximum Cycle Rate (CPM): 400
  • Maximum Flow Rate (GPM): 15
  • Maximum Flow Rate (L/min): 56.8
  • Maximum Fluid Pressure (bar): 7
  • Maximum Fluid Pressure (kPa): 700
  • Maximum Fluid Pressure (MPa): 0.7
  • Maximum Fluid Pressure (psi): 100
  • Maximum Fluid Pressure (bar): 7
  • Maximum Fluid Pressure (kPa): 700
  • Maximum Fluid Pressure (MPa): 0.7
  • Maximum Fluid Pressure (psi): 100
  • Maximum Operating Temperature (°C): 66
  • Maximum Operating Temperature (°F): 150
  • Maximum Solid Size (cm): 0.2383
  • Maximum Solid Size (in): 0.09375
  • Maximum Solid Size (mm): 2.4
  • Minimum Operating Temperature (°C): 4
  • Minimum Operating Temperature (°F): 40
  • Overal
SKU: GG D52911
Availability:
Price: $1,185.00
