Husky Pump,515Ac-Pp01Aac3Sssspopt

GG 24N097

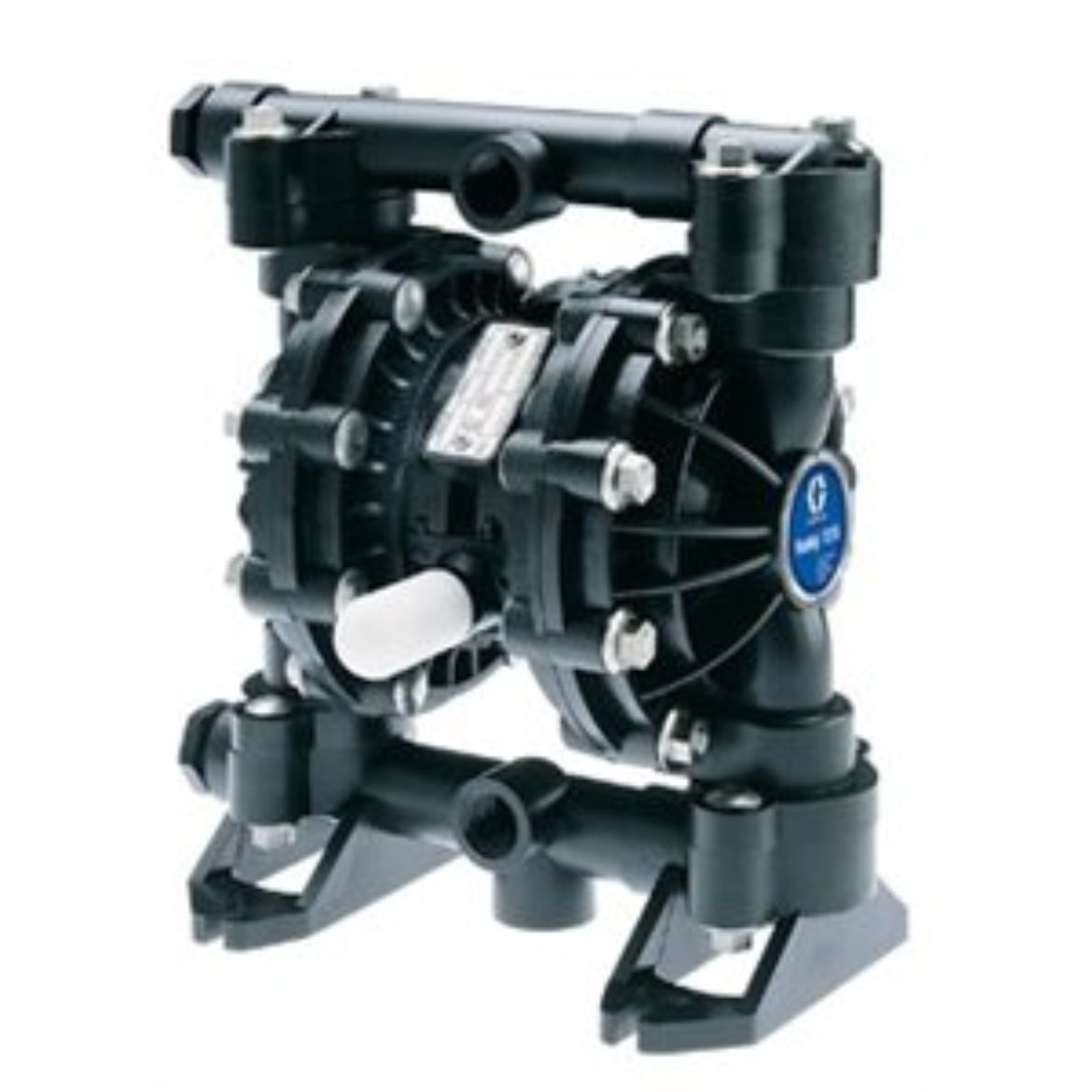

HUSKY PUMP, 515AC-PP01AAC3SSSSPOPT

Graco 24N097 Husky 515 AC Pump, PP Center Section, SS Seats, SS Balls & PO Diaphragm

Our Husky air-operated double diaphragm pumps are loaded with features to help you get the job done right, every time, and are built to save you money. The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

• Rugged construction

  Resists corrosion for reliable performance and long life

  • Heavy-duty design

    Offers long life, increased productivity and lower overall cost of ownership

    • Benefits of the Husky 515 double diaphragm pump

      Center and end porting options.

      No mechanical seals to cause fluid leaks or failures

      Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels

      Easy-to-service air valve and ball checks

      Operates on as little as 20 psi (1.4 bar, 0.14 MPa)

      Split manifold option to pump multiple fluids without mixing

      • Delivery up to 15 gpm (56.7 lpm)
      • Easy-to-service air valve and ball checks
      • Reliable air valve for years of dependable performance
      • Lube-free for cleaner operation
      • DataTrak available to prevent pump runaway and track material usage




      • Model: Husky
      • Series: 515
      • Air Exhaust Port Size (in): 3/8
      • Air Exhaust Port Thread Gender: Female
      • Air Exhaust Port Thread Type: NPT
      • Air Inlet Size (in): 1/4
      • Air Inlet Thread Gender: Female
      • Air Inlet Thread Type: NPT
      • Application: Industrial
      • Ball Material: 316 Stainless Steel
      • Center Section Material: Polypropylene
      • Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
      • Connection Type: Threaded
      • Diaphragm Compatible Material: PTFE
      • Diaphragm Material: PTFE Overmold
      • Fluid Inlet Size (cm): 1.27
      • Fluid Inlet Size (in): 1/2
      • Fluid Inlet Size (mm): 12.7
      • Fluid Inlet Thread Gender: Female
      • Fluid Inlet Thread Type: NPT
      • Fluid Outlet Size (cm): 1.27
      • Fluid Outlet Size (in): 1/2
      • Fluid Outlet Size (mm): 12.7
      • Fluid Outlet Thread Gender: Female
      • Fluid Outlet Thread Type: NPT
      • Fluid Section Material: Acetal
      • Manifold Configuration: Center Port
      • Manifold O-Ring Material: PTFE
      • Material: Acetal
      • Maximum Air Consumption (SCFM): 28
      • Maximum Air Pressure (bar): 7
      • Maximum Air Pressure (kPa): 700
      • Maximum Air Pressure (MPa): 0.7
      • Maximum Air Pressure (psi): 100
      • Maximum Cycle Rate (CPM): 400
      • Maximum Flow Rate (GPM): 15
      • Maximum Flow Rate (L/min): 56.8
      • Maximum Fluid Pressure (bar): 7
      • Maximum Fluid Pressure (kPa): 700
      • Maximum Fluid Pressure (MPa): 0.7
      • Maximum Fluid Pressure (psi): 100
      • Maximum Fluid Pressure (bar): 7
      • Maximum Fluid Pressure (kPa): 700
      • Maximum Fluid Pressure (MPa): 0.7
      • Maximum Fluid Pressure (psi): 100
      • Maximum Operating Temperature (°C): 82
      • Ma
