Husky Pump,2200P,P1,Pp/Sp/Sp/A

GG 653500

HUSKY PUMP, 2200P, P1, PP/SP/SP/A

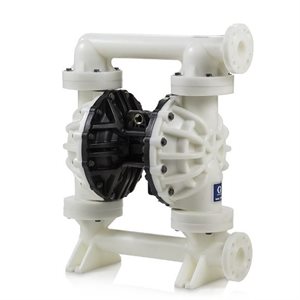

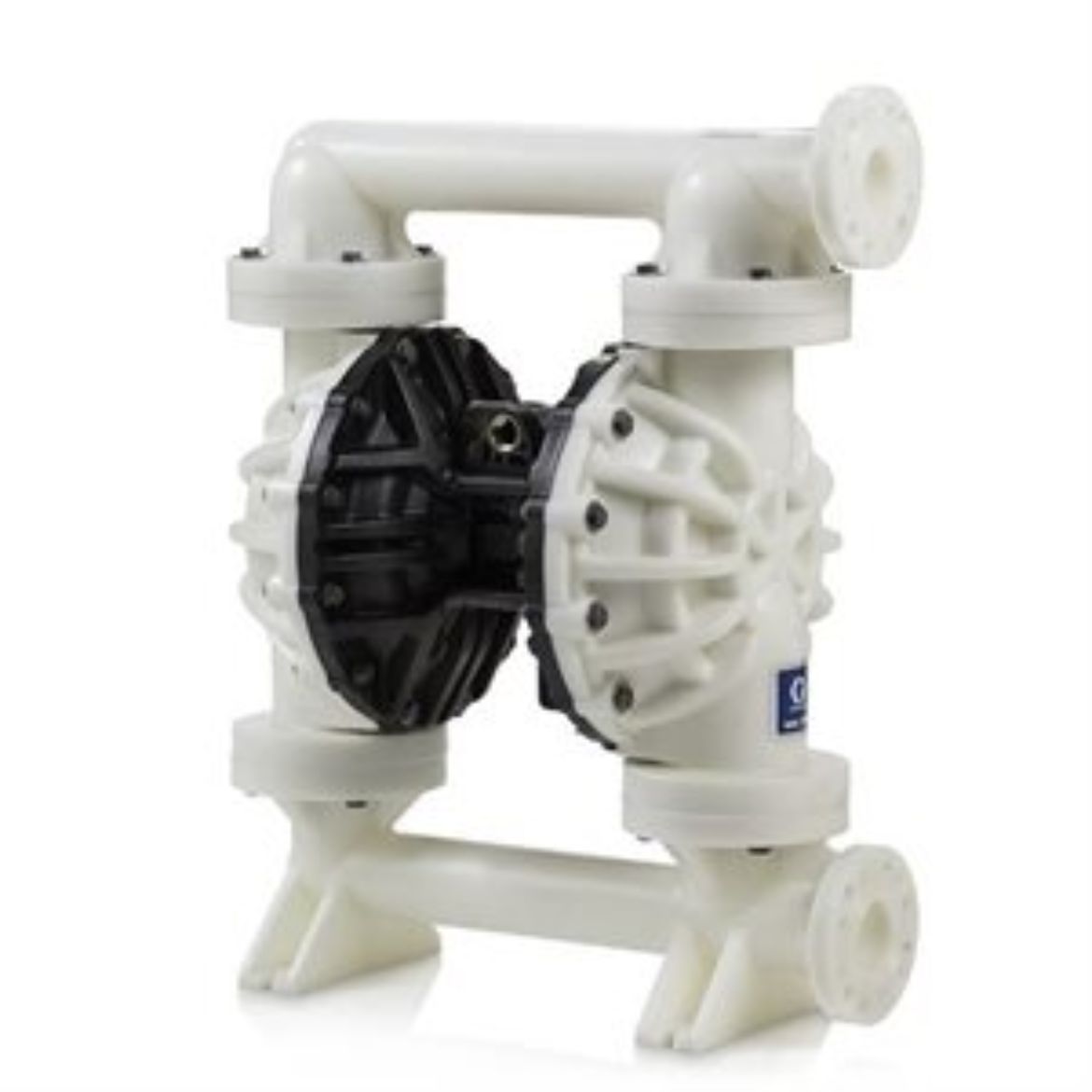

Graco 653500 Husky 2200 PP Pump, Center Flange, PP Center Section, PP Seats, SP Balls & SP Diaphragm

The Husky 2200 air-operated diaphragm pump features a single piece polypropylene center section for increased reliability and chemical compatibility, plus a patented, high-reliability modular air valve that is online serviceable. This diaphragm pump is designed with a reinforced frame for improved reliability and will help to eliminate fluid leakage.

• Overall improved air efficiency
• Highest fluid flow rate in its class
• Expanded material offering to handle endless applications
• 2 in (50.8 mm) ANSI center and end-porting options available
• High flow - 200 gpm (757 lpm) in a compact, portable size
• Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
• Lube-free operation
• Available in polypropylene and PVDF

• Model: Husky
• Series: 2200

• Air Exhaust Port Size (in): 1
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Santoprene

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer

• Connection Type: Center Flange ANSI/DIN

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 5.08
• Fluid Inlet Size (in): 2
• Fluid Inlet Size (mm): 50.8

• Fluid Outlet Size (cm): 5.08
• Fluid Outlet Size (in): 2
• Fluid Outlet Size (mm): 50.8
• Fluid Section Material: Polypropylene

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Polypropylene

• Maximum Air Consumption (SCFM): 140
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Cycle Rate (CPM): 125

• Maximum Flow Rate (GPM): 200
• Maximum Flow Rate (L/min): 757

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Solid Size (cm): 0.9525
• Maximum Solid Size (in): 0.375
• Maximum Solid Size (mm): 9.525

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Storage Temperature (°C): 0
• Minimum Storage Temperature (°F): 32

• Power Source: Air
