Husky Pump,2150P-E,A04Ap2Spspsppt

GG 656003

HUSKY PUMP, 2150P-E, A04AP2SPSPSPPT

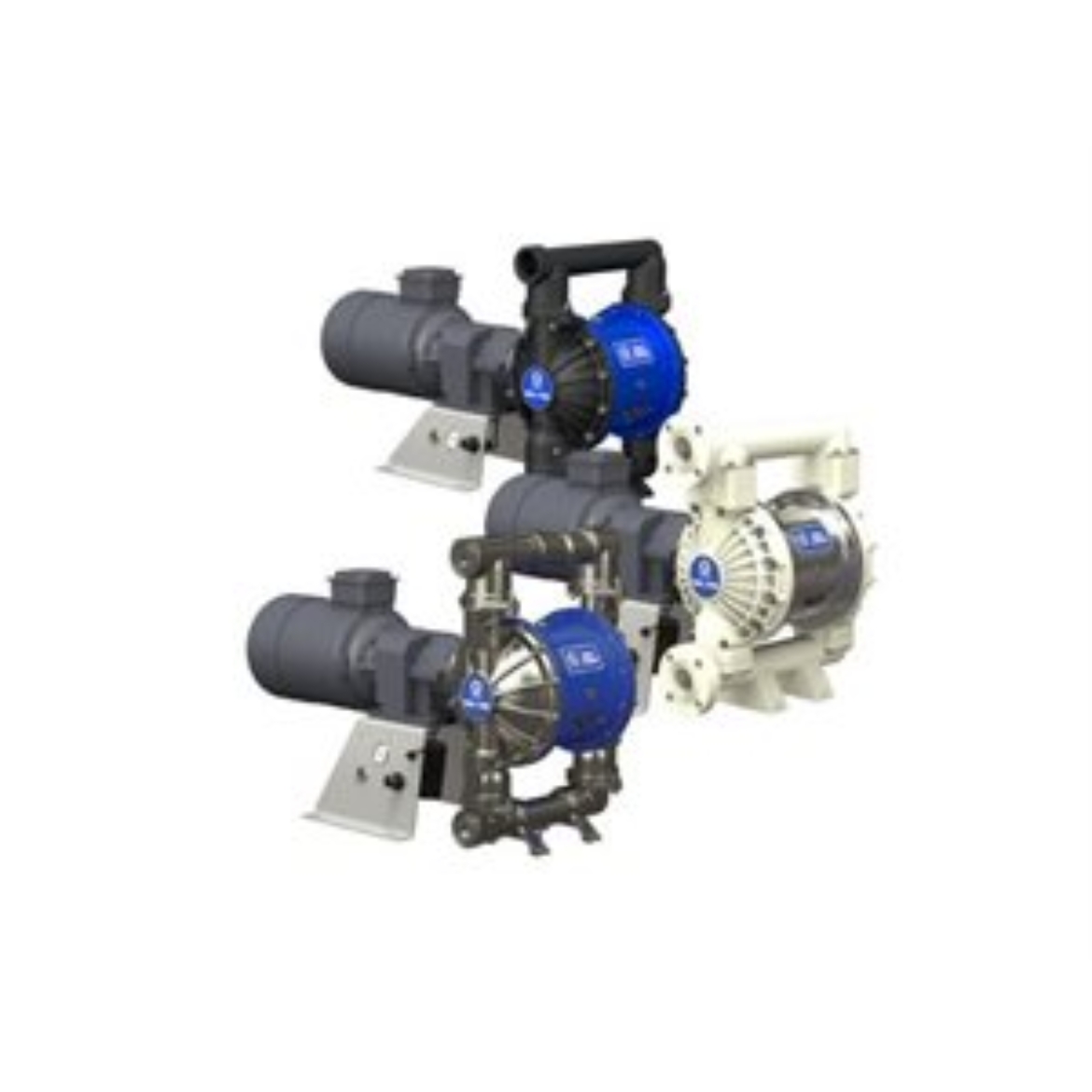

Graco 656003 Husky 2150e 2 in. (51 mm) PP Electric Diaphragm Pump, 7.5 Hp AC Motor, No CMPSR, End Port Flange, AL Center, SP Seat, SP Ball, SP Diaphragm

High energy costs coupled with air diaphragm pumps powered by compressors have a huge negative impact on your profitability. The impact to operating costs is even larger when running high flow pumps. The Graco Husky 2150e electric diaphragm pump will reduce energy consumption by up to 80%. In addition to energy costs savings, Graco's durable diaphragm pumps reduce maintenance costs and plant downtime.

• Energy Efficient Electric Drive - reduce energy consumption up to 80% compared to traditional air operated diaphragm pumps
• Stall Under Pressure - prevent pump failures from clogged lines or closed valves
• Seal-Less Diaphragm Pump Design - eliminate leaking and failures due to run-dry pump conditions
• Durable Component Materials -Transfer slurries and abrasives with no pump damage
• Favorite Diaphragm Pump Features - Gentle on shear sensitive material, runs dry, self-primes

• Air Exhaust Port Size (in): 0.375
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Santoprene

• Center Section Material: Aluminum

• Connection Type: Flange

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 5
• Fluid Inlet Size (in): 2
• Fluid Inlet Size (mm): 50
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 5
• Fluid Outlet Size (in): 2
• Fluid Outlet Size (mm): 50
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Polypropylene

• Manifold Configuration: End Port
• Manifold O-Ring Material: PTFE
• Material: Polypropylene

• Maximum Air Pressure (bar): 6.9

• Maximum Air Pressure (kPa): 690
• Maximum Air Pressure (MPa): 0.69
• Maximum Air Pressure (psi): 100
• Maximum Amperage (A): 19.5/9.75A

• Maximum Cycle Rate (CPM): 160

• Maximum Flow Rate (GPD): 0.6
• Maximum Flow Rate (GPM): 100
• Maximum Flow Rate (L/min): 378.5

• Maximum Fluid Pressure (bar): 6.9
• Maximum Fluid Pressure (kPa): 690
• Maximum Fluid Pressure (MPa): 0.69
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 6.9
• Maximum Fluid Pressure (kPa): 690
• Maximum Fluid Pressure (MPa): 0.69
• Maximum Fluid Pressure (psi): 100

• Maximum Motor Speed (RPM): 1800

• Maximum Operating Temperature (°C): 82.22
• Maximum Operating Temperature (°F): 180

• Maximum Solid Size (cm): 0.64
• Maximum Solid Size (in): 0.25
• Maximum Solid Size (mm): 6.35

• Maximum Working Pressure (psi): 100

• Minimum Operating Temperature (°C): -40.00
• Minimum Operating Temperature (°F): -40

• Motor Type: AC

• Overall Height (in): 26.3

• Power Rating (HP): 7.5
• Power Source: Electric

• Pump Ratio: 1
