GG 654500
HUSKY PUMP, 15120P, P1, PP/SP/SP/PT

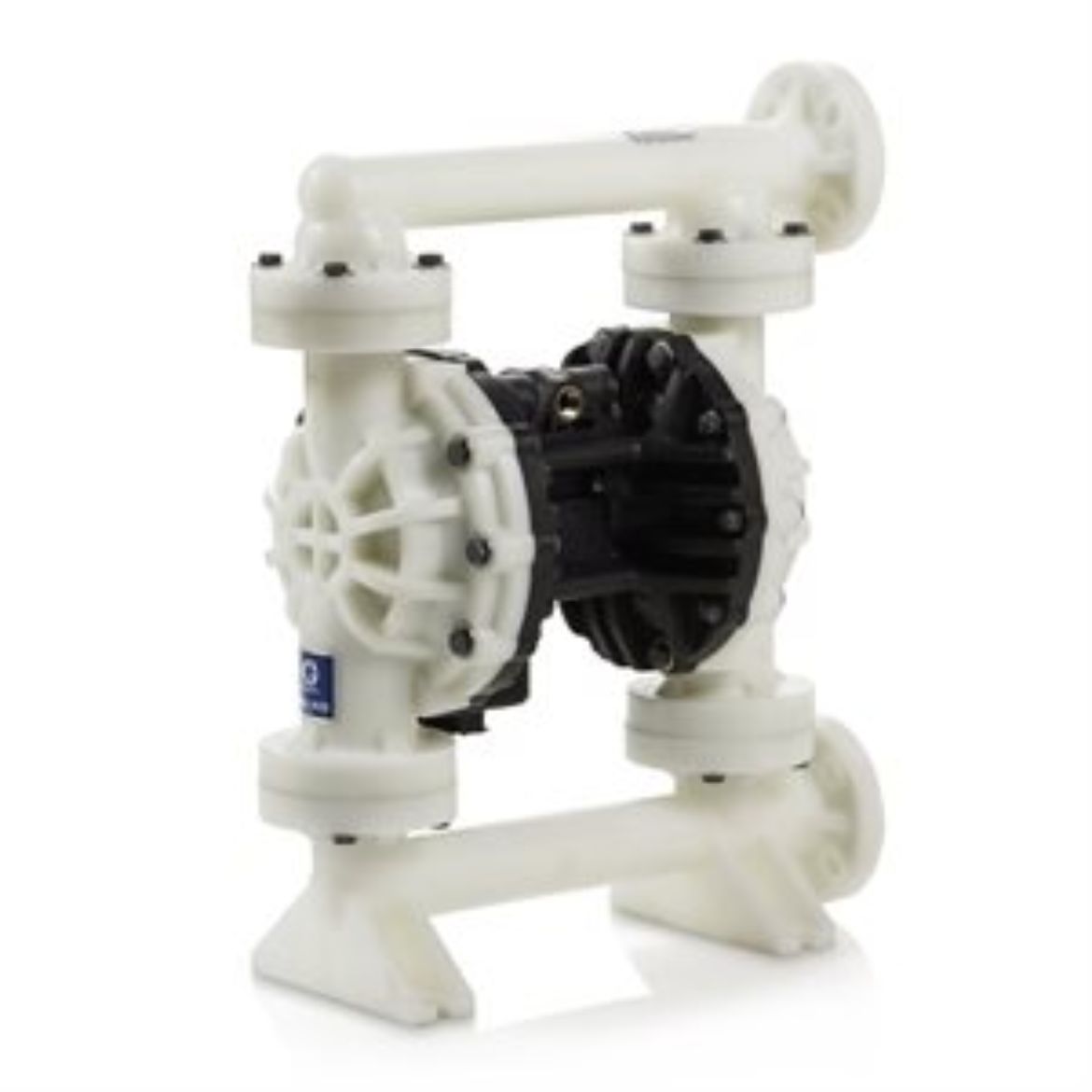

Graco 654500 Husky 15120 PP Pump, Center Flange, PP Center Section, PP Seats, SP Balls & SP Diaphragm
The Husky 15120 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
- Overall improved efficiency (up to 40% more efficient)
- Highest fluid flow rate in its class
- Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
- 1-1/2 in (38.1 mm) ANSI center and end-porting options available
- High flow - 120 gpm (454 lpm) in a compact, portable size
- Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
- Lube-free operation
- Available in polypropylene and PVDF
- Model: Husky
- Series: 15120
- Air Exhaust Port Size (in): 1
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Ball Material: Santoprene
- Center Section Material: Polypropylene
- Compatible Material: Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer
- Connection Type: Center Flange ANSI/DIN
- Diaphragm Compatible Material: Santoprene
- Diaphragm Material: Santoprene
- Fluid Inlet Size (cm): 3.81
- Fluid Inlet Size (in): 1-1/2
- Fluid Inlet Size (mm): 38.1
- Fluid Inlet Thread Gender: Female
- Fluid Outlet Size (cm): 3.81
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Outlet Thread Gender: Female
- Fluid Section Material: Polypropylene
- Manifold Configuration: Center Port
- Manifold O-Ring Material: PTFE
- Material: Polypropylene
- Maximum Air Consumption (SCFM): 85
- Maximum Air Pressure (bar): 8.6
- Maximum Air Pressure (kPa): 860
- Maximum Air Pressure (MPa): 0.86
- Maximum Air Pressure (psi): 125
- Maximum Cycle Rate (CPM): 183
- Maximum Flow Rate (GPM): 120
- Maximum Flow Rate (L/min): 454
- Maximum Fluid Pressure (bar): 8.6
- Maximum Fluid Pressure (kPa): 860
- Maximum Fluid Pressure (MPa): 0.86
- Maximum Fluid Pressure (psi): 125
- Maximum Fluid Pressure (bar): 8.6
- Maximum Fluid Pressure (kPa): 860
- Maximum Fluid Pressure (MPa): 0.86
- Maximum Fluid Pressure (psi): 125
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Solid Size (cm): 0.635
- Maximum Solid Size (in): 0.25
- Maximum Solid Size (mm): 6.35
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
- Minimum Storage Temperature (°C): 0
- Minimum Storage Temperature (°F): 32
