Husky Pump,1050S-Pa01As1Fkfkfk

GG 651016

HUSKY PUMP, 1050S-PA01AS1FKFKFK

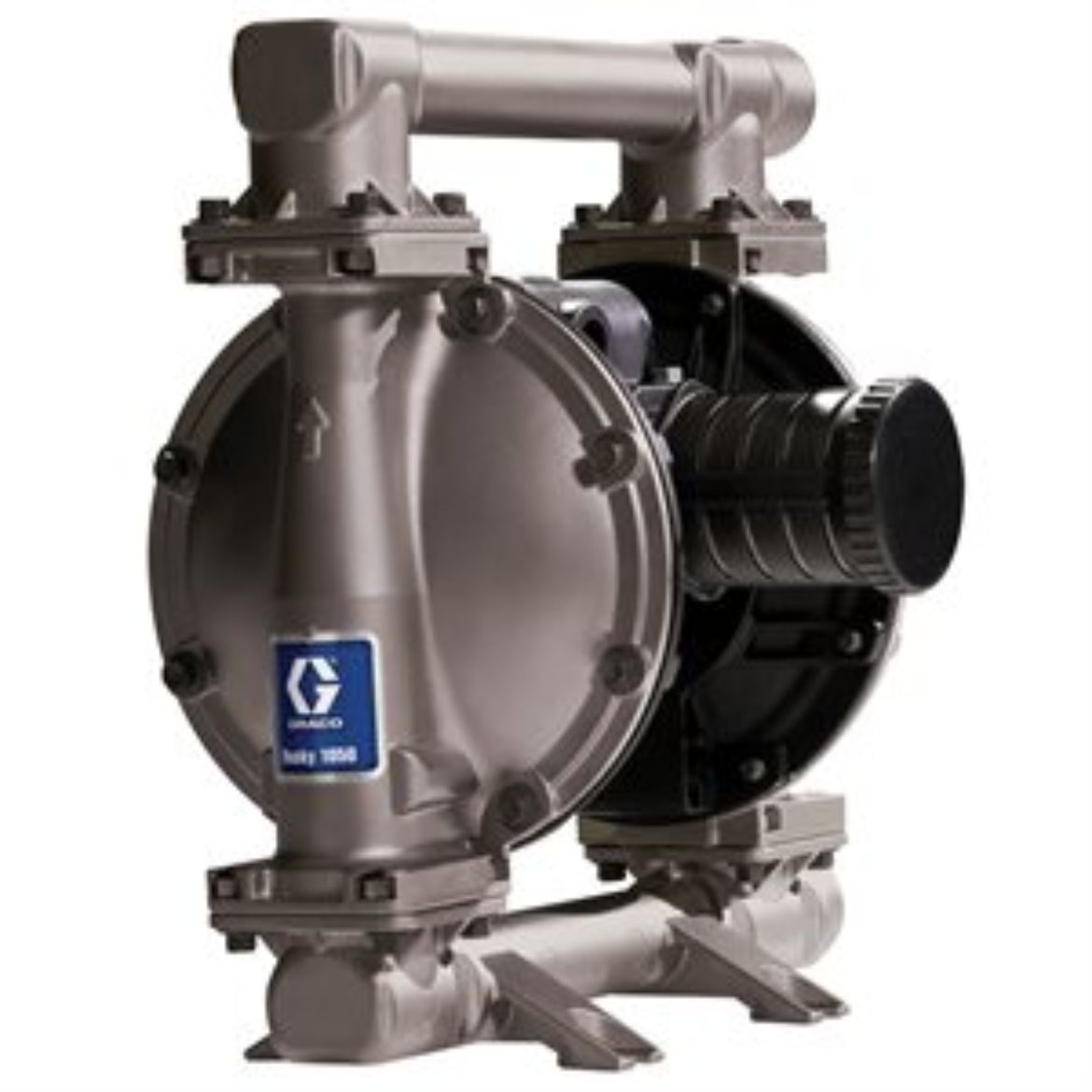

Graco 651016 Husky 1050 SS 1 in. (25.4 mm) NPT Pump, AL Center Section, FKM Seats, FKM Balls & FKM Diaphragm

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

• Longer Diaphragm Life

  Up to 5x longer diaphragm life for less maintenance and downtime

  • Modular Air Valve

    Stall-free, low pulsation operation provides smooth and rapid changeover

    • One-Piece Center Section

      Eliminates air leaks for more efficient operation

      • Multiple Ports

        Increased number of ports for installation flexibility

        • Optional Features

          DataTrak - Runaway protection and tracks material usage

          Pulse Output - Cycle count capability

          • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
          • 30% more efficient than the market leader
          • 20% increase in fluid flow compared to the Husky 1040




          • Model: Husky
          • Series: 1050
          • Air Exhaust Port Size (in): 3/4
          • Air Exhaust Port Thread Gender: Female
          • Air Exhaust Port Thread Type: NPT
          • Air Inlet Size (in): 1/2
          • Air Inlet Thread Gender: Female
          • Air Inlet Thread Type: NPT
          • Application: Industrial
          • Ball Material: Fluoroelastomer
          • Center Section Material: Aluminum
          • Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
          • Connection Type: Threaded
          • Diaphragm Compatible Material: FKM
          • Diaphragm Material: Fluoroelastomer
          • Fluid Inlet Size (cm): 2.54
          • Fluid Inlet Size (in): 1
          • Fluid Inlet Size (mm): 25.4
          • Fluid Inlet Thread Gender: Female
          • Fluid Inlet Thread Type: NPT
          • Fluid Outlet Size (cm): 2.54
          • Fluid Outlet Size (in): 1
          • Fluid Outlet Size (mm): 25.4
          • Fluid Outlet Thread Gender: Female
          • Fluid Outlet Thread Type: NPT
          • Fluid Section Material: Stainless Steel
          • Manifold Configuration: Center Port, End Port
          • Material: Stainless Steel
          • Maximum Air Consumption (SCFM): 67
          • Maximum Air Pressure (bar): 8.6
          • Maximum Air Pressure (kPa): 860
          • Maximum Air Pressure (MPa): 0.86
          • Maximum Air Pressure (psi): 125
          • Maximum Cycle Rate (CPM): 280
          • Maximum Flow Rate (GPM): 50
          • Maximum Flow Rate (L/min): 189
          • Maximum Fluid Pressure (bar): 8.6
          • Maximum Fluid Pressure (kPa): 860
          • Maximum Fluid Pressure (MPa): 0.86
          • Maximum Fluid Pressure (psi): 125
          • Maximum Fluid Pressure (bar): 8.6
          • Maximum Fluid Pressure (kPa): 860
          • Maximum Fluid Pressure (MPa): 0.86
          • Maximum Fluid Pressure (psi): 125
          • Maximum Solid Size (cm): 0.3175
          • Maximum Solid Size (in): 0.125
          • Maximum Solid Size (mm): 3.175
          • Power Source: Air
