Husky Pump,1050P-E,Sp/Sp/Sp/4A

GG 650013

HUSKY PUMP, 1050P-E, SP/SP/SP/4A

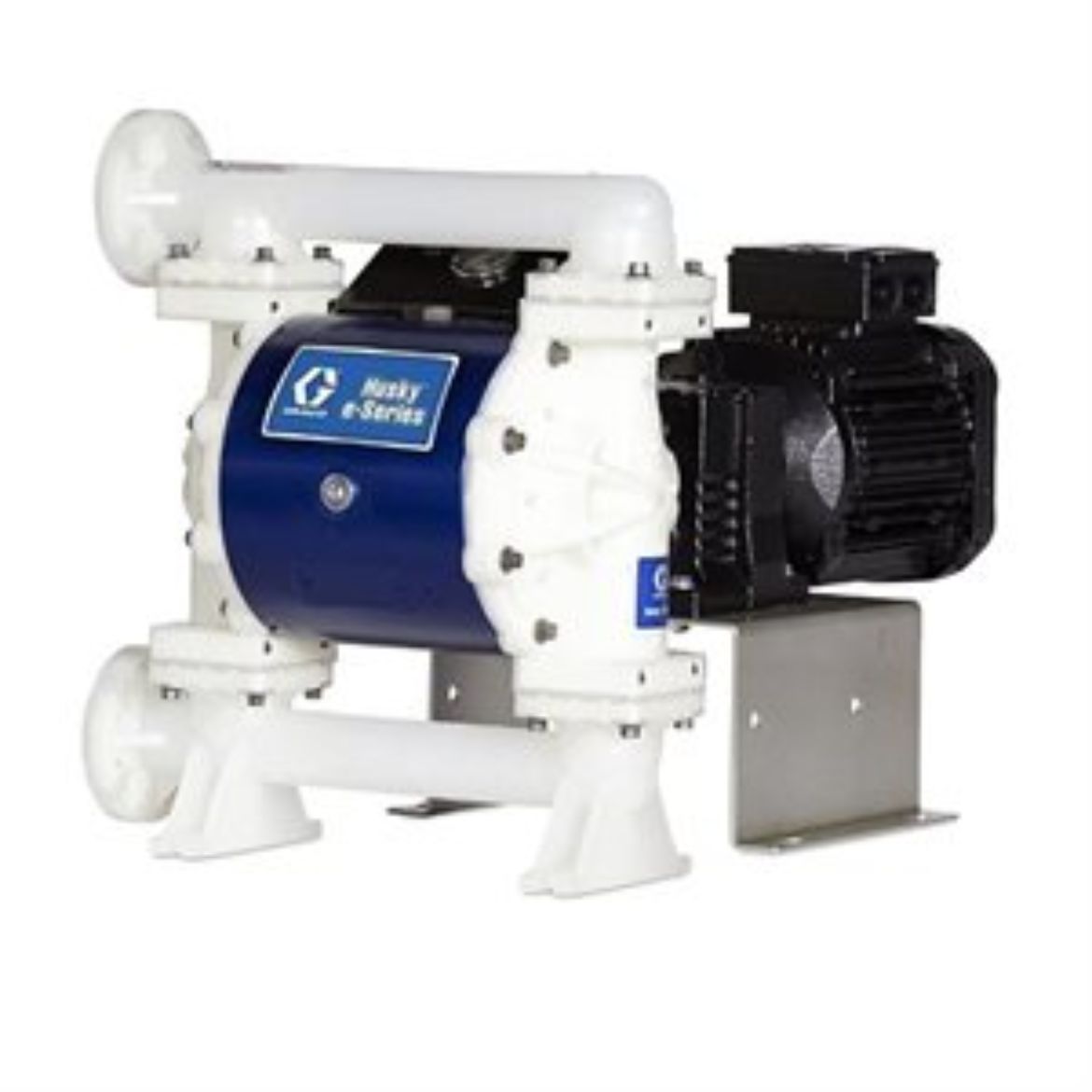

Graco 650013 Husky 1050 PP Pump, Standard AC Motor, End Flange, AL Center Section, SP Seats, SP Balls & SP Diaphragm

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

• Durable Pump Technology

  Handles slurries and abrasives all without damage to the pump

  Gentle on shear sensitive material

  • Diaphragm Pump

    Runs dry

    No rotating or moving fluid seals

    Self-priming

    • Electric Drive

      Reduce energy consumption and operating costs

      Increase pump control

      Accurately meter fluid

      • Patent Pending Air Charged Drive

        Increase diaphragm life without compromising your fluid

        Ability to reduce pulsation on fluid outlet

        Stalls under pressure without additional switches and controls

        • Energy efficient electric drive reduces energy consumption up to 5x compared to traditional air operated diaphragm pumps
        • Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions




        • Model: Husky
        • Series: 1050e
        • Air Inlet Size (in): 3/8
        • Air Inlet Thread Gender: Female
        • Air Inlet Thread Type: NPT
        • Application: Industrial
        • Ball Material: Santoprene
        • Center Section Material: Aluminum
        • Compatible Material: Antifreeze, Detergent, Gel-Coat, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Motor Oil, Grease & Oil, Used Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Oil, Water - Wastewater Treatment, Water - Wastewater Transfer, Water, Waterborne, Solvent borne, High Solids, Plural Components, CARC, Metallics, Topcoats, Stains, Varnish, Lacquer, Ceramics, Enamel, Epoxies, Ink
        • Connection Type: End Flange ANSI/DIN
        • Diaphragm Compatible Material: Santoprene
        • Diaphragm Material: Santoprene
        • Fluid Inlet Size (cm): 2.54
        • Fluid Inlet Size (in): 1
        • Fluid Inlet Size (mm): 25.4
        • Fluid Outlet Size (cm): 2.54
        • Fluid Outlet Size (in): 1
        • Fluid Outlet Size (mm): 25.4
        • Fluid Section Material: Polypropylene
        • Manifold Configuration: End Port
        • Manifold O-Ring Material: PTFE
        • Material: Polypropylene
        • Maximum Air Pressure (bar): 5.5
        • Maximum Air Pressure (kPa): 550
        • Maximum Air Pressure (MPa): 0.55
        • Maximum Air Pressure (psi): 80
        • Maximum Amperage (A): 5.7
        • Maximum Cycle Rate (CPM): 280
        • Maximum Flow Rate (GPM): 42
        • Maximum Flow Rate (L/min): 159
        • Maximum Fluid Pressure (bar): 4.8
        • Maximum Fluid Pressure (kPa): 480
        • Maximum Fluid Pressure (MPa): 0.48
        • Maximum Fluid Pressure (psi): 70
        • Maximum Fluid Pressure (bar): 4.8
        • Maximum Fluid Pressure (kPa): 480
        • Maximum Fluid Pressure (MPa): 0.48
        • Maximum Fluid Pressure (psi): 70
        • Maximum Motor Speed (RPM): 1800
        • Maximum Operating Temperature (°C): 40
        • Maximum Operating Temperature (°F): 104
        • Maximum Solid Size (cm): 0.3175
        • Maximum Solid Size (in): 0.125
        • Maximum Solid Size (mm): 3.175
