Husky Pump,1050Hp,Sp/Sp/Sp/A

GG 24W762

HUSKY PUMP, 1050HP, SP/SP/SP/A

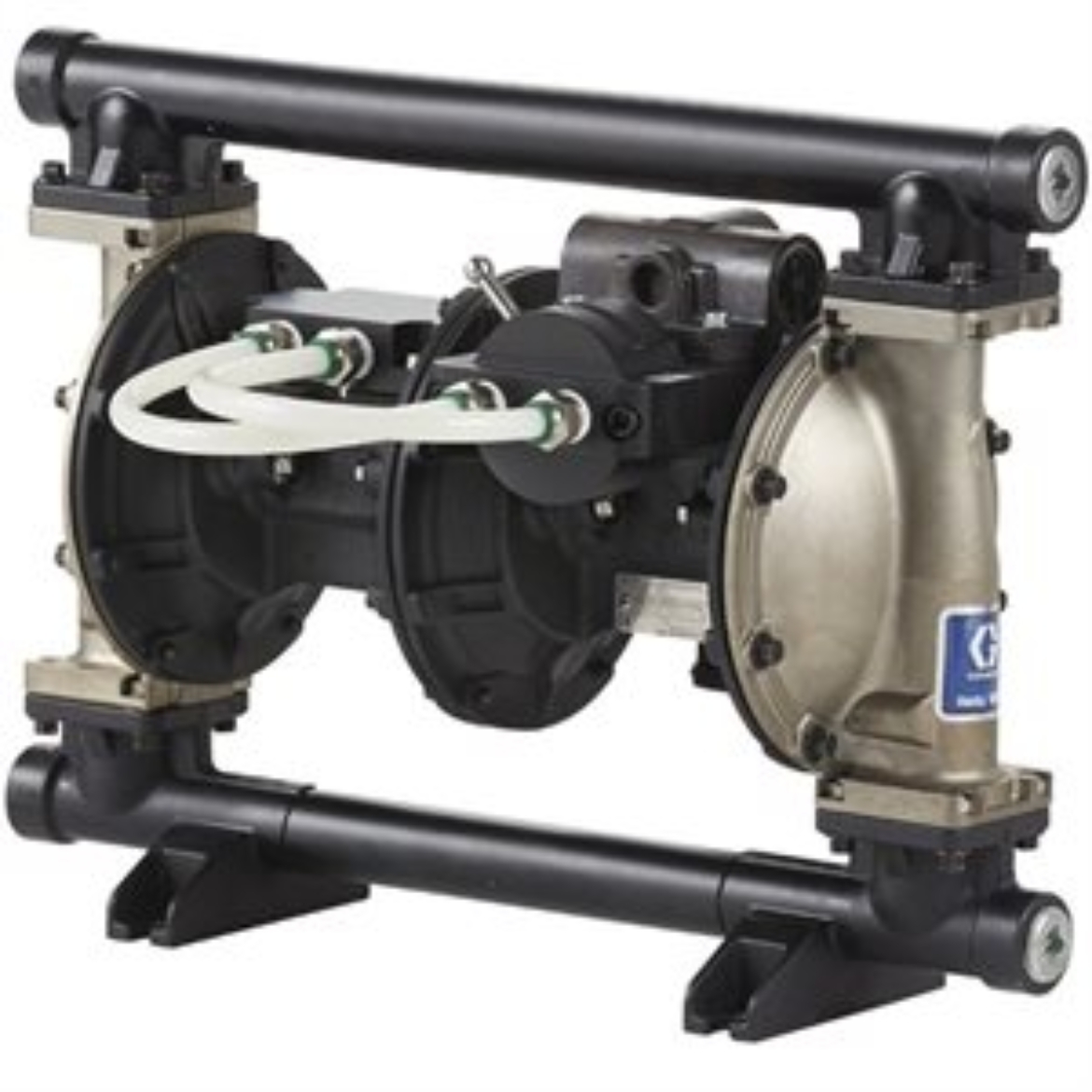

Graco 24W762 Husky 1050HP 1 in. (25.4 mm) NPT AL Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 1050HP air-operated diaphragm pump is the first pump on the market that allows users to choose between low pressure and high pressure operating modes with Graco's low-high pressure mode valve. High pressure operation isn't always required, so switch to the low pressure mode to reduce air consumption up to 50%. These features combined with the quality and reliability of our standard Husky diaphragm pump design make this one of the most unique high pressure diaphragm pumps on the market.

• Benefits of the Husky 1050HP Double Diaphragm Pump

  Increased fluid pressure without sacrificing flow

  Low-high pressure mode valve lets you operate the pump as a standard AODD or a high pressure AODD

  Reduce air consumption up to 50% with the low pressure mode

  Same repair parts as the Husky 1050 diaphragm pump

  • External Pilots

    Ease of maintenance

    Reduced down-time (quick change time)

    Spring loaded for faster change over

    • Modular Air Valve

      Ease of maintenance

      Stall and lube free

      • Additional Diaphragm

        For high pressure operation

        • Low/High Pressure Operation Valve

          Selectable operating setting

          Reduces air consumption

          Only use high pressure when required

          • Wetted Components

            Utilizes same parts as Husky 1050 which reduces repair part inventory




            • Model: Husky
            • Series: 1050HP
            • Air Exhaust Port Size (in): 3/4
            • Air Exhaust Port Thread Gender: Female
            • Air Exhaust Port Thread Type: NPT
            • Air Inlet Size (in): 3/4
            • Air Inlet Thread Gender: Female
            • Air Inlet Thread Type: NPT
            • Application: Industrial
            • Ball Material: Santoprene
            • Center Section Material: Aluminum
            • Compatible Material: Antifreeze, Detergent, Gel-Coat, Asphalt, Polyurethane, Polymer, Fibers, Alkyds, Resin, Motor Oil, Grease & Oil, Used Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Oil, Windshield Washer Fluid, Diesel Exhaust Fluid, Water, Water - Wastewater Treatment, Water - Wastewater Transfer, Water, Automotive Undercoating
            • Connection Type: Threaded
            • Diaphragm Compatible Material: Santoprene
            • Diaphragm Material: Santoprene
            • Fluid Inlet Size (cm): 2.54
            • Fluid Inlet Size (in): 1
            • Fluid Inlet Size (mm): 25.4
            • Fluid Inlet Thread Gender: Female
            • Fluid Inlet Thread Type: NPT
            • Fluid Outlet Size (cm): 2.54
            • Fluid Outlet Size (in): 1
            • Fluid Outlet Size (mm): 25.4
            • Fluid Outlet Thread Gender: Female
            • Fluid Outlet Thread Type: NPT
            • Fluid Section Material: Aluminum
            • Manifold Configuration: End Port
            • Manifold O-Ring Material: PTFE
            • Material: Aluminum
            • Maximum Air Consumption (SCFM): 95
            • Maximum Air Pressure (bar): 8.62
            • Maximum Air Pressure (kPa): 862
            • Maximum Air Pressure (MPa): 0.862
            • Maximum Air Pressure (psi): 125
            • Maximum Cycle Rate (CPM): 140
            • Maximum Flow Rate (GPM): 50
            • Maximum Flow Rate (L/min): 189
            • Maximum Fluid Pressure (bar): 17.2
            • Maximum Fluid Pressure (kPa): 1720
            • M
